Quick Details
-
Voltage:
-
220v / 380v / 110v
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Liquid Image
-
Gross Power:
-
50HZ
-
Dimensions(L*W*H):
-
L: 1185 X W:605 X H:780mm
-
Weight:
-
80 KG
-
Product Name:
-
DIP & WAHS Water Transfer Printing Machine
-
Key Words:
-
hydrographic tank machine with semi auto arm rims hydro dipping
-
Dipping Area:
-
L: 1185mm X W:605mm X H:780mm
-
Dipping Arm:
-
customized motor arms control by remote controller
-
Body Material:
-
2. mm stainless steel
-
Water Pump:
-
Stainless Steel Punp , No Rusting
-
Function:
-
dipping car parts, motorcycle, glasses, wheels, etc.
-
Printing material:
-
water transfer prinfing films
-
Technical Support:
-
Onine Training or Engineers Overseas
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Water transfer print
-
Color & Page:
-
Multi color patterns hydro dipping
-
Voltage:
-
220v / 380v / 110v
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Liquid Image
-
Gross Power:
-
50HZ
-
Dimensions(L*W*H):
-
L: 1185 X W:605 X H:780mm
-
Weight:
-
80 KG
-
Product Name:
-
DIP & WAHS Water Transfer Printing Machine
-
Key Words:
-
hydrographic tank machine with semi auto arm rims hydro dipping
-
Dipping Area:
-
L: 1185mm X W:605mm X H:780mm
-
Dipping Arm:
-
customized motor arms control by remote controller
-
Body Material:
-
2. mm stainless steel
-
Water Pump:
-
Stainless Steel Punp , No Rusting
-
Function:
-
dipping car parts, motorcycle, glasses, wheels, etc.
-
Printing material:
-
water transfer prinfing films
-
Technical Support:
-
Onine Training or Engineers Overseas

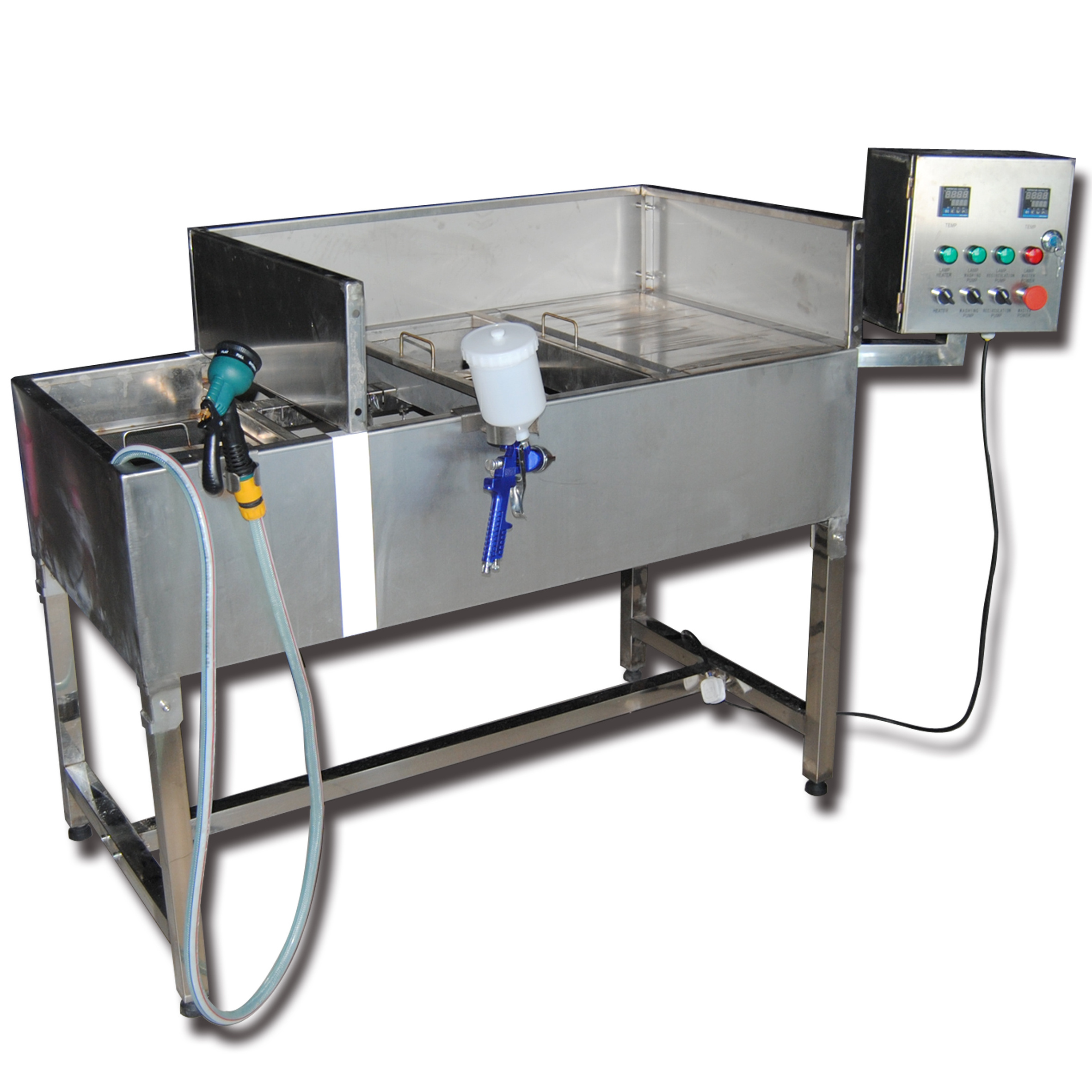

LYH-WTPM062-2 New Starter kit DIP & WASH
Water transfer printing equipment /hydro dipping tank
Certification: CE certification
|
Size |
Outside Size |
L: 1185mm X W:605mm X H:780mm |
|
Dipping Area |
L: 950mm X W: 540mm X H: 300mm |
|
|
Material |
Stainless Steel |
T=2.5mm+-0.2mm |
|
Main Components |
Heating Elements |
220V, Single Phase, 50 HZ, 400W |
|
Water Re-circulation System |
Pump Power: 220V, Single Phase, 50 HZ, 30W |
|
|
Control Panel |
1. Master Power On/Off Switch 2. Pump On/Off Switch 3. Heating Element On/Off Switch 4. Digital Thermostat 5. All the red and green lights needed for the switches. |
|
|
Water Capacity |
0.16 Ton |
|
|
Package |
Polywood case |
|
|
Net WT |
50 KGS |
|
|
Gross WT |
80 KGS |
|
|
Package Size |
L: 1250mm X W: 650mm X H: 350mm |
Function Introduction:
1. Heating elements:
heat water fast to 25-30 degree C ( the most suitable water temperature for hydro dipping)
2. Water re-circulation system:
recircle water, flow away remains after dipping, no need to discharge water every time.
3. Control panel:
control power, heat elements, water re-circulation system, and pump. Press buttons, machine will works automatically.
4. Washing gun:
wash away sticky remains on the products' surface. Washing water is from the tank, reducing water waste.
order Procedure:
1 Please offer the quantity (square meters) of goods and your contact details (address, zip code,
phone number, ect.)
2 We make a proforma invoice (PI) for you, then please check and confirm the PI.
3 Once we confirmed the order, then please make the payment .
4 We need 5-7 days to prepare the goods.
5 Goods sent out, we offer you the tracking number.
6 We track the goods for you until you get them.
The advantages of our tank:
1. The stainless steel of the tank is 2.5mm, so it wouldn't be out of shape after you use it some days later.
2. Good welding to make sure machine won’t leak.
3. Stainless steel pump to keep a long lifespan.
4. Beautiful control panel with black color.
5. Machine is designed by American.
6. We have CE certification and patent, we can send you the no. for checking if you want.
New starters come to us : you will get all you need ( technical training or tips, small pack films, activator, spray gun, dip kit etc.) to start, we will support you to grow big.
Wholesalers come to us : more than 5,000 patterns, Newest design, bulk price,24 hours shipping, 3-7 days fast delivery, 12 hours problem solved, your royalty design, and more benefit are here for you.
After 7 years develop , now our team are working with more than 5,500 clients , and face to face trained more than 200 clients . You are not only get films or machines from us, also technical guidance, new technique trends, new ideas of how to impress your clients .
We are able to support you to start or enlarge your water transfer printing business.
