Launching / landing / lifting / salvage / moving marine rubber airbags

Launching / landing / lifting / salvage / moving marine rubber airbags

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: Natural Rubber

Size:: Customized Size

Type:: High Pressure

Certificate:: CCS

MOQ:: 1 Piece

Packing:: Standard Package

Application:: Lifting

Working Pressure:: 0.25Mpa

Layer:: 6.7.8 layers

Quick Details

Place of Origin:: Shandong, China

Brand Name:: Evergroup

Product Name:: High Pressure Floating Dry Dock Inflatable Lifting Air Bags

Material:: Natural Rubber

Size:: Customized Size

Type:: High Pressure

Certificate:: CCS

MOQ:: 1 Piece

Packing:: Standard Package

Application:: Lifting

Working Pressure:: 0.25Mpa

Layer:: 6.7.8 layers

Product Description

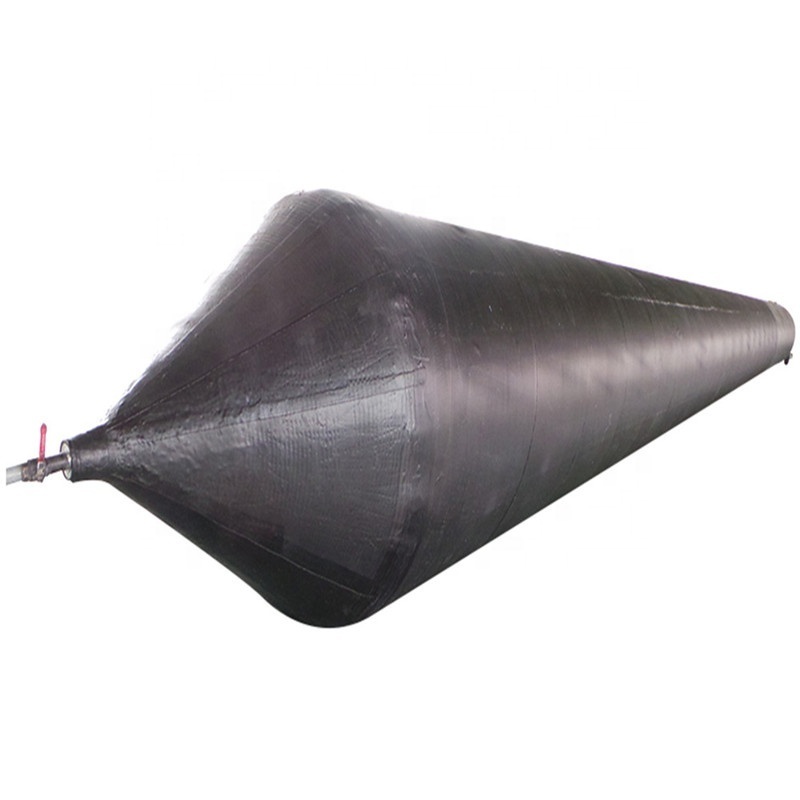

High Pressure Floating Dry Dock Inflatable Lifting Air Bags

Introduction of Inflatable Lifting Air Bags

High pressure heavy lifting rubber air bags are updated & improved based on the traditional ship launching airbags. This update make heavy lifting marine rubber airbags are more suitable for the heavy lifting work. The highest lifting capacity of each heavy lifting rubber airbags can reach more than 1,000 ton.

Advantage of Inflatable Lifting Air Bags

High pressure
Special synthetic-tire-cord reinforcement make airbags stronger with working pressure up to 250 KPa.
High lifting capacity
One piece bag can lift heavy structures ranging form 70 tons to 1,000 tons in weight. Normally, caissons up to 5,000 tons or cofferdams up to 2,000 tons can be lift by our heavy lifting system.
Steady roll movements
When airbags are taking the load, they can roll steadily with large contact area and less reaction force to secure a smooth transportation and relocation.
Easy to operation
Only compacted ground and minimum facilities such as trolleys are needed. Meanwhile, heavy lifting airbags are easy to install as the deflated airbags are very fat and small to be placed under vessel's hull.
Lower cost
Using airbags helps to decrease 70% budget comparing with traditional lifting methods.
Various applications
Concrete caissons, pump houses, statues, bridge blocks and tanks, water diversion pipes, box culvert, gas drilling equipment, cofferdams and various heavy structures.
