Quick Details
-
Model Number:
-
T-10-DT
-
Dimension:
-
492mm(H)*308mm(W)*310mm(D)
-
Storage:
-
N/A
-
SNR:
-
N/A
-
Output Power:
-
120W
-
Format:
-
N/A
-
Speaker type:
-
10"" active two-way speaker
-
Product Name:
-
Single 10-inch active DT speaker
-
Crossover modes:
-
Active
-
Rated Power:
-
120 W
-
Frequency response (-10dB):
-
55Hz-20kHz
-
Sensitivity(1W@1m):
-
90 dB
-
Color:
-
Default is black, other colors can be customized
-
Weight(each):
-
12.2kg
-
Packing size:
-
318x480x290mm
-
Keyword:
-
Professional audio active speakers with Dante
Quick Details
-
Warranty:
-
1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DEKEN
-
Model Number:
-
T-10-DT
-
Dimension:
-
492mm(H)*308mm(W)*310mm(D)
-
Storage:
-
N/A
-
SNR:
-
N/A
-
Output Power:
-
120W
-
Format:
-
N/A
-
Speaker type:
-
10"" active two-way speaker
-
Product Name:
-
Single 10-inch active DT speaker
-
Crossover modes:
-
Active
-
Rated Power:
-
120 W
-
Frequency response (-10dB):
-
55Hz-20kHz
-
Sensitivity(1W@1m):
-
90 dB
-
Color:
-
Default is black, other colors can be customized
-
Weight(each):
-
12.2kg
-
Packing size:
-
318x480x290mm
-
Keyword:
-
Professional audio active speakers with Dante

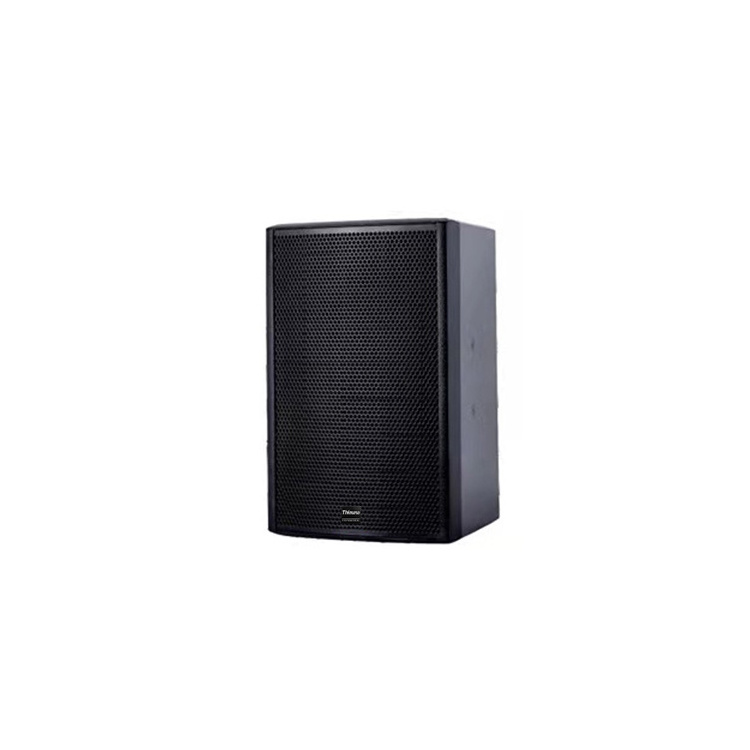

DEKEN T-10-DT Dante digital network transmission Professional audio active speakers with high power amplifier module
Products Description
Features:
Dante digital network transmission, 2 * RJ45 interface, 1 * XLR balanced input / output, volume knob control, RS232 remote volume control Speaker type: 10 "" active two-way speaker Unit configuration: 10 "" ferrite woofer 1.5 "" ferrite tweeter Frequency range (±3dB): 55Hz-20kHz Rated power: 120W Maximum sound pressure level SPL: 116dB Sensitivity (1w/1m): 90dB Standard impedance: 8Ω Coverage angle (H x V): 80°x70° Dante digital network interface: 2x RJ45 interface Analog interface: 1x XLR balanced input, 1x XLR balanced output Active amplifier module: 200W Volume knob control: Yes Central control interface: RS232 Dimensions (WxHxD): 318x480x290mm Net weight (Kg): 12.2kgs
Dante digital network transmission, 2 * RJ45 interface, 1 * XLR balanced input / output, volume knob control, RS232 remote volume control Speaker type: 10 "" active two-way speaker Unit configuration: 10 "" ferrite woofer 1.5 "" ferrite tweeter Frequency range (±3dB): 55Hz-20kHz Rated power: 120W Maximum sound pressure level SPL: 116dB Sensitivity (1w/1m): 90dB Standard impedance: 8Ω Coverage angle (H x V): 80°x70° Dante digital network interface: 2x RJ45 interface Analog interface: 1x XLR balanced input, 1x XLR balanced output Active amplifier module: 200W Volume knob control: Yes Central control interface: RS232 Dimensions (WxHxD): 318x480x290mm Net weight (Kg): 12.2kgs
Specifications:
|
Product Name
|
Single 10-inch active DT speaker
|
Single 12-inch active DT speaker
|
|
System type：
|
10 "" active two-way speaker
|
12 "" active two-way speaker
|
|
Rated power：
|
120W
|
300 W
|
|
Nominal impedance：
|
|
8 Ω
|
|
Unit configuration：
|
10 "" ferrite woofer 1.5 "" ferrite tweeter
|
12 "" ferrite woofer 1.75 "" ferrite tweeter
|
|
Nominal sensitivity（1W@1m）：
|
90dB
|
98 dB
|
|
Frequency range (±3dB)：
|
55Hz-20kHz
|
55Hz-20kHz
|
|
Maximum sound pressure level SPL：
|
116dB
|
129dB
|
|
Sensitivity (1w/1m)：
|
90dB
|
98dB
|
|
Standard impedance：
|
8Ω
|
8Ω
|
|
|
|
1.7″（44mm voice coil）HF driver ×1
|
|
Crossover modes：
|
Active
|
Active
|
|
Coverage angle (H x V)：
|
80°x70°
|
80°x50°
|
|
Dante digital network interface：
|
2x RJ45 interface
|
2x RJ45 interface
|
|
Analog interface:
|
1x XLR balanced input, 1x XLR balanced output
|
1x XLR balanced input, 1x XLR balanced output
|
|
Active amplifier module:
|
200W
|
600W
|
|
Volume knob control：
|
Yes
|
Yes
|
|
Central control interface:
|
RS232
|
RS232
|
|
Dimensions (WxHxD):
|
318x480x290mm
|
385x571x365mm
|
|
Color：
|
Default is black, other colors can be customized
|
Default is black, other colors can be customized
|
|
Weight（each）：
|
12.2kg
|
17.20kg
|
|
Shipping Weight：
|
15.2kg
|
19.25kg
|
|
Reference applications:
|
Conference rooms, multipurpose halls, churches, auditoriums, small shows
|
Conference rooms, multipurpose halls, churches, auditoriums, small shows
|
