Quick Details
-
Weight:
-
450 KG
-
Dimension(L*W*H):
-
(L)3940*(W)1010*(H)1390mm
-
Machine weight:
-
430-490KG
-
Keyword:
-
Multifunctional
-
Product Keywords:
-
Multi-function Packaging Machines Automatic
-
Feature:
-
Easy Opperation
-
Usage:
-
Horizontal Packing
-
Main Function:
-
Wrapping Packing
-
Packing speed:
-
25-230bag/min
-
Packaging materials:
-
OPP,OPP/CPP,KOP/CPP,ALU-FILM
-
Power:
-
220V,50/60Hz,4.9KW
-
Packing material:
-
OPP,OPP/CPP,KOP/CPP,ALU-FILM
Quick Details
-
Voltage:
-
220V,50/60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EasternPack
-
Weight:
-
450 KG
-
Dimension(L*W*H):
-
(L)3940*(W)1010*(H)1390mm
-
Machine weight:
-
430-490KG
-
Keyword:
-
Multifunctional
-
Product Keywords:
-
Multi-function Packaging Machines Automatic
-
Feature:
-
Easy Opperation
-
Usage:
-
Horizontal Packing
-
Main Function:
-
Wrapping Packing
-
Packing speed:
-
25-230bag/min
-
Packaging materials:
-
OPP,OPP/CPP,KOP/CPP,ALU-FILM
-
Power:
-
220V,50/60Hz,4.9KW
-
Packing material:
-
OPP,OPP/CPP,KOP/CPP,ALU-FILM

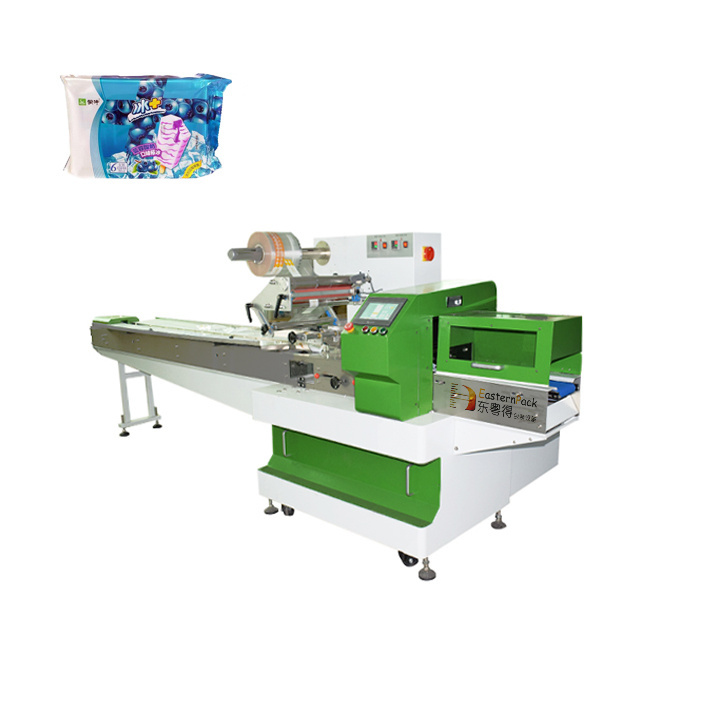

Product Description
Machine Feature:
1.Separate mechanical and electrical equipment for higher safety.
Separate electrical and instrument parts
.
2.
When the sensor detects that no product has passed, the roll film does not operate, so there is no waste in the roll film and no empty bag.
The empty bag rate is zero
.
3.With a patented appearance, more secure than the traditional series of machines, with
increased safety parts
.
4.
Using three servo motors
, can be cut according to the length of the material, no stick knife, no waste of packaging film.
5.
Can be used with the labeling machine
, labeling machine will be attached to the film in advance.
6.
Material contact parts are all made of stainless steel, clean and hygienic, in line with
health management standards
.
Technical Parameters
We have several Models,and can give you the best solution based on your requirement.
(We also have other types of machines for you:click here .)
(We also have other types of machines for you:click here .)
|
technical parameter
|
|
|
||
|
ype
|
D-350S
|
D-430S
|
||
|
Film width
|
Max: 350 mm
|
Max: 430 mm
|
||
|
Bag length
|
80-380 mm
|
80-380 mm
|
||
|
Bag width
|
50-160 mm
|
50-200 mm
|
||
|
Product height
|
50-60 mm
|
50-60 mm
|
||
|
Film roll diameter
|
Max:300 mm
|
Max:300 mm
|
||
|
Packaging rate
|
25-230 bag/min
|
25-230 bag/min
|
||
|
Packaging materials
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
|
||
|
Voltage
|
220V, 50/60Hz
|
|
||
|
Power
|
5.7KW
|
5.9KW
|
||
|
Machine size
|
3940*1010*1390 mm
|
4070*930*1465 mm
|
||
|
Machine weight
|
430Kg
|
490Kg
|
||
Application
Suitable for packing face mask, fruit, lettuce, cucumber, vegetable, carrot,biscuits, pies, chocolates , bread, instant noodles,moon-cakes,etc.
Product Details
The bag former of the horizontal packing machine can be adjusted in a certain range, so customer just need to advise the min and the max sizes of your products, so we can recommend the suitable model.
For the new design of the horizontal packing machine,we add the protection cover for the sealing and the cutting part,and at the same time we take heat release into consideration,so we leave one side of the protection box to be open for heat dissipation,so the machine will not strike for over heat.
