Quick Details
-
Dimension(L*W*H):
-
7650x4560x4080mm
-
Year:
-
2020
-
Power (kW):
-
185
-
Weight (KG):
-
14000 kg
-
Certification:
-
CE, CE ISO SGS
-
Product name:
-
Pvc Film Plastic Three Roller Rubber Calender Machine
-
Application:
-
Rubber
-
Type:
-
Automatic
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SEAKING
-
Voltage:
-
240V or customized
-
Dimension(L*W*H):
-
7650x4560x4080mm
-
Year:
-
2020
-
Power (kW):
-
185
-
Weight (KG):
-
14000 kg
-
Certification:
-
CE, CE ISO SGS
-
Product name:
-
Pvc Film Plastic Three Roller Rubber Calender Machine
-
Application:
-
Rubber
-
Type:
-
Automatic

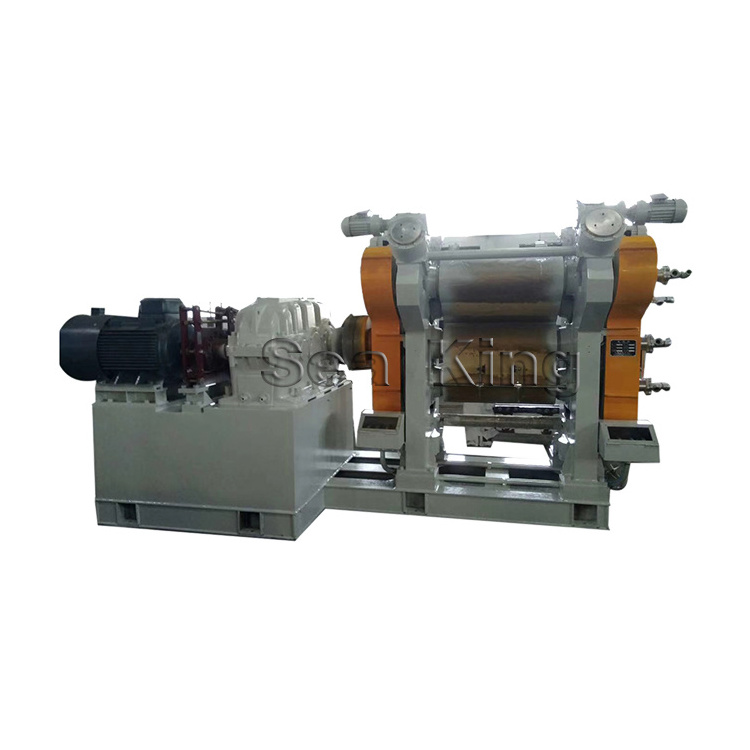

Pvc Film Plastic Three Roller Rubber Calender Machine
| Model | XY-3I 630 |
XY-3I 1120A
XY-3 1120A XY-3l1120A |
XY-3I 1400 |
XY-3I 1200
XY-3I 1500 |
XY-3I 1730 | XY-3I 2130 |
| Roll diameter (mm) | 230 | 360 | 400 | 450 | 610 | 710 |
| Roll working length (mm) | 630 | 1120 | 1400 | 1200(1500) | 1730 | 2130 |
| Roll speed ratio |
1:01:01
1:1.42:1 |
1:01:01
0.733:1:1 0.733:1:0.733 |
1:01:01
1:1.383:1.383 1:1.383:1 |
1:01:01
1:1.5:1 |
1:01:01
1:1.4:1 |
1:01:01
1:1.48:1 |
| Middle-roll linear speed (m/min) | 7.97 | 7.0-21.06 | 8.8-26.39 | 8.36-25.08 | 5.4-54 | 8-50 |
| Adjusting nip range (mm) | 0-7 | 0-10 | 0-10 | 0-6 | 0-20 | 0-20 |
| Min.Calendering product thickness (mm) | 0.2 | 0.2 | 0.2 | 0.15 | 0.15 | 0.15 |
| Calendering product width (mm) | 100-500 | 500-920 | 1200 | 1100(1400) | 1500 | 1900 |
| Motor power (kw) | 7.5 | 40/13.3 | 55/18.3 | 75/25 | 132 | 185 |
| Overall dimensions (mm) |
2570×740× 1500 |
5550×1640× 2120 |
6500×1500× 2440 |
7120(7420)×2200× 2900 |
7010×3950× 3730 |
7650×4560× 4080 |
| Weight (kg) | ~4200 | ~12750 | ~26000 | ~27000 | ~52000 | ~67000 |
1: The material of the screw is made by 38CrMoAlA nitrogen steel with high quality and the surface is nitrogen and its nature is adjusted. The hardness of the surface is HRC60-65 and the depth is 0.5-0.7mm.
2: The material of bush is made by 38CrMoAlA nitrogen steel with high quality and the surface is nitrogen and its nature is adjusted. The hardness of the surface for the inner hole is HRC60-65 and the depth is 0.5-0.7mm.
3: The motor of the equipment is direck current motor with stepless speed regulation. The decelerator is a gear decelerator with cylinder gears of two grades hardness. The precision of transmission is 6 steps.
