Quick Details
-
Brand Name:
-
VOLUN
-
Voltage:
-
380v ,50hz , 3 phases
-
Dimension(L*W*H):
-
2900*1300*2400 mm
-
Motor Power (Kw):
-
220
-
Power (kW):
-
132
-
Weight (KG):
-
7300 KG
-
Name:
-
Wood Pellet Line /production plant
-
Capacity:
-
0.6 to 4 tons per hour
-
Power:
-
132 kw
-
Raw material:
-
all kinds of biomass wood , cotton stalk ,rice and peanut shell
-
Pellet size:
-
4-12mm
-
Usage:
-
to make wood pellets
-
Application:
-
Make Biomass Fuel
-
Ideal moisture:
-
10-18%
-
Function:
-
to make wod pellet
-
Weight:
-
7.3 tons
Quick Details
-
Pellet Diameter (mm):
-
4 - 12
-
Output (kg/h):
-
400 - 6000 kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
VOLUN
-
Voltage:
-
380v ,50hz , 3 phases
-
Dimension(L*W*H):
-
2900*1300*2400 mm
-
Motor Power (Kw):
-
220
-
Power (kW):
-
132
-
Weight (KG):
-
7300 KG
-
Name:
-
Wood Pellet Line /production plant
-
Capacity:
-
0.6 to 4 tons per hour
-
Power:
-
132 kw
-
Raw material:
-
all kinds of biomass wood , cotton stalk ,rice and peanut shell
-
Pellet size:
-
4-12mm
-
Usage:
-
to make wood pellets
-
Application:
-
Make Biomass Fuel
-
Ideal moisture:
-
10-18%
-
Function:
-
to make wod pellet
-
Weight:
-
7.3 tons
1: Brief introduction of wood pellet production line
1: Wood pellet machine is a new energy equipment, and it is a granulation equipment for wood pellet production.
2: The raw material need to be crushed, pressurized, densified, and then formed into a small rod-shaped solid particulate fuel . the pellets size can be adjustable from 4 ~ 12 mm .
3: The pellets made can be used in fireplaces, boilers, gasifiers, and biomass power plants and so on .
2 : Process of wood pellet making plant /production line
* Raw materials
The raw materials can be used such as rice shell , peanut shell , wheat straw ,corn stalk , wood branches and all kinds of woods and so on .
* Crushing part
We will match you different crusher according to your raw materials , the final crushed diameter is less than 6 mm .
* Drying part
Use the dryer to dry the crushed materials ,the remand materails moisture should be in the range of 15 % to 18%
* Pellet making part
Usually the wood pellets size is from 4 to 12 mm
* Cooling and packing part
After making fuel pellets , the temperature of the pellets will be very hot and cannot pack directly , so need a contraflow cooler to decrease the temperature of the pellets so the pellets can pack directly after cooling .

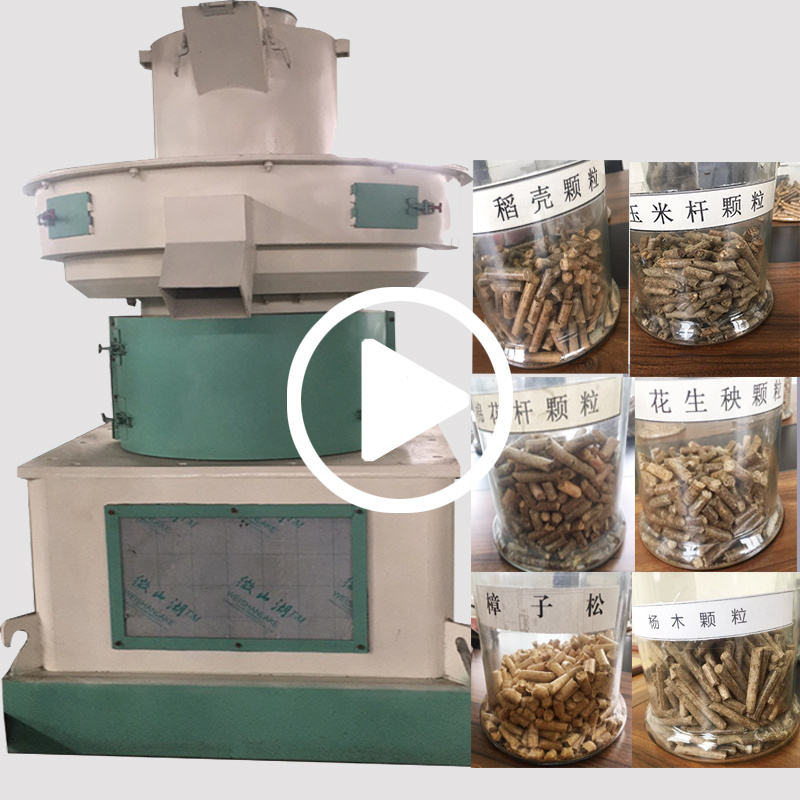

Machine pictures and parameters
Parameters of wood pellet making machine
|
Model |
VLGX-860 |
VLGX-760A |
VLGX-680A |
VLGX-580 |
VLGX-560 |
VLGX-450
|
|||
|
Motor power( KW ) |
220 |
160 |
132 |
110 |
90 |
55 |
|||
|
Speed (r/min) |
1450 |
||||||||
|
Pellet size (mm) |
4-12 (adjustable ) |
||||||||
|
Granulation temperature (°C) |
40-80 |
||||||||
|
Material moisture % |
15-25 |
||||||||
|
Machine weight kg |
11000 |
8000 |
7000 |
6500 |
5600 |
2900 |
|||
|
Dimension ( mm) |
3300*1600*2670 |
2460*1400*2000 |
2200*1200*1750 |
3100*1300*2100 |
2300*1250*2000 |
2160*1000*1850 |
|||
|
Capacity( t/h ) |
4 |
2.5-3 |
2-2.5 |
1.8-2 |
1.2-1.5 |
0.8-1 |
|||
Ring die
Hammer Chipper /slicer
