Internet of Things BLE Receiver Indoor Location Beacon Gateway 300m WiFi Coverage

Internet of Things BLE Receiver Indoor Location Beacon Gateway 300m WiFi Coverage

FOB Reference Price: Get Latest Price

≥1 Pieces

US $45

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: MOKO

Network:: Ethernet & Wi-Fi

WIFI Data Rate:: 150Mbps

WIFI Coverage:: 300m

Power Supply:: 9V DC/5V USB/PoE

Dimensions:: 120x120x22.5mm

Installation:: Horizontal, Ceiling,Wall

Server Protocol:: MQTT/HTTP/HTTPS

Bluetooth Scanning Range:: 120m

Scanning Capability:: 300/s(Maximum)

BLE Scanning Type:: iBeacon/Eddystone/Sensor Data/BLE Raw Data

Quick Details

Chipset:: NRF52832

Application:: IOT

Model Number:: MKGW1

Place of Origin:: Guangdong, China

Brand Name:: MOKO

Network:: Ethernet & Wi-Fi

WIFI Data Rate:: 150Mbps

WIFI Coverage:: 300m

Power Supply:: 9V DC/5V USB/PoE

Dimensions:: 120x120x22.5mm

Installation:: Horizontal, Ceiling,Wall

Server Protocol:: MQTT/HTTP/HTTPS

Bluetooth Scanning Range:: 120m

Scanning Capability:: 300/s(Maximum)

BLE Scanning Type:: iBeacon/Eddystone/Sensor Data/BLE Raw Data

Product Description

Internet of Things BLE Receiver Indoor Location Beacon Gateway 300m WiFi Coverage

Introduction

MKGW1 Gateway, is a Bluetooth-WIFI gateway independently developed by MOKO.

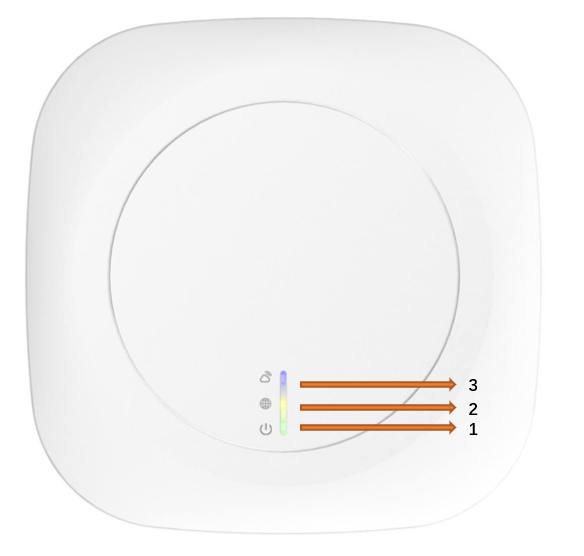

It has a compact shape with 3 multi-color indicator lights. It can be fixed by sticking or screwing.

It is convenient for users to get the information of the Beacon and upload the information to server.

Features

* Connect the standard MQTT Broker, Aws IOT, Azure IOT HUB, Aliyun IOT.;

* PoE、DC and USB power supply ;

*M odify the gateway parameters on the web UI ;

* Support Ethernet and WIFI internet access ;

* 300m WiFi coverage ;

* IEEE 802.11b/g/n w ireless Standard

*iBeacon&Eddystone&BLE raw data receiver;

Technology Parameter

No.	Item	Value	Remark
1	Color	White	Other colors can be customized
2	Dimension	120mm x 120mm x 22.5mm	Refer to mechanical draws for details
3	Net Weight	138.2g	-
4	Interface	PoE Port DC Power Port Micro USB Port RJ45 Network Port USB Upgrade Port	-
5	Operating Temperature	0 ~ 55ºC	-
6	Storage Temperature	20 ~ 30ºC	-
7	Wireless Standard	IEEE 802.11b/g/n	-
8	WIFI Data Rate	150Mbps	Maximum
9	WLAN Transmit power	18dBm	-
10	WIFI coverage	300m	Maximum，In the open space
11	Bluetooth Standard	BLE 5.0	Chip model:nRF52832
12	Bluetooth Scanning Range	120m	Maximum，In the open space
13	Maximum Scanning Capability	300/s	-
14	Server Protocol	MQTT(TCP/SSL), HTTP, HTTPS	-

mechanical draws

All dimensions is “mm”

Delivery

Sample

We would send samples via DHL or other Express within about 2 days after payment, then you would receive them in about 4 to 6 days.

Mass production

Bulk orders usually take about 2 to 3 weeks after payment received.

How to use it

Remark：

1. The Bluetooth module on the gateway scans the advertising data of surrounding Beacons；
2.The Bluetooth module sends the advertising data of Beacons to the WIFI module；
3. The gateway uploads the Beacon data to the server in json format according to the established network communication protocol.

Connect And Login

Step 1. Power on the gateway;
Step 2. Use PC or mobile phone, open WIFI to search gateway SSID (Default: MKGW-BW-XXXX), verify the password and connect to the gateway;
Step 3. Use a browser to open the link http://192.168.22.1 (Default);
Step 4. Enter the password to go to the gateway configuration web UI. Note that the configuration web UI will be automatically logged out if there is no peration within 1 hour.

Our Company

Why Choose us?

MOKOSmart specializes in design and manufacture of IoT Hardware. Our ODM & OEM solution offers a range of IoT products for the global smart device market. Currently, our products line includes fitness trackers, smart home smart sockets, smart switches, bluetooth beacons, bluetooth modules, LoRa products and wireless sensors.

Our Customers

Certifications

Hot sale

① H1 beacon ② H3 card beacon ③ M1 beacon ④ W1 wristband beacon

FAQ

Q1: Do the Beacons work with IOS and Android phones?
A1: Yes, We will send the user manual to you to set up the beacon ,you can test the Beacon with IOS and Android phones.

Q2: Do you provide the technical support to the developers?
A2: SURE. The following technical data and documents will be provided.
1.Android&IOS SDK 2. Configuration APP 3. SDK description

Q3: Is the Beacons Certified ?
A3: Yes, all of our Beacons are with FCC/CE/RoHS Certificates, we can provide to customers anytime if needed.

Q4: If the beacon can be managed remotely ?
A4: Yes, you can use our app to connect the beacon within the beacon range area to change the paramters.

Q5: If there have monthly charge after we purchased the beacon from you ?
A5: NO, we won't have monthly charge for our clients.

Q6: Could brand the product with our company LOGO?
A6: Yes, pls send an AI file with your logo to us, then our engineer will access for you.

Q7: What's the warranty of the product?
A7: we supply 1 year warranty from the shipping date, any damage caused during the production would be replace by a new one.

Q8: Could we have an customized beacon ?
A8: Yes, We offer the OEM/ODM service.

For more questions, Welcome to contact us.
