Quick Details
-
Warranty(Year):
-
1-Year
-
Lamp Luminous Flux(lm):
-
300
-
CRI (Ra>):
-
70
-
Working Temperature(℃):
-
-10 - 45
-
Working Lifetime(Hour):
-
10000
-
Place of Origin:
-
China
-
Brand Name:
-
DNA-R8
-
Emitting Color:
-
rgb
-
Laser Power:
-
5w,6w 35KPPS
-
Laser Diode TYpe:
-
TTL/Analog
-
Scanning Angle:
-
up to 60°
-
Control Mode:
-
SD, sound, auto, DMX (with RDM), master/slave mode, ILDA control
-
Working Enviroment:
-
-10-45degree
-
Size:
-
21*34*16.5cm/27cm (L*W*H)
-
Weight:
-
5.5kgs
Quick Details
-
Color Temperature(CCT):
-
2700K (Soft Warm White)
-
Type:
-
LASER LIGHTS
-
Application:
-
Sports Stadiums
-
Warranty(Year):
-
1-Year
-
Lamp Luminous Flux(lm):
-
300
-
CRI (Ra>):
-
70
-
Working Temperature(℃):
-
-10 - 45
-
Working Lifetime(Hour):
-
10000
-
Place of Origin:
-
China
-
Brand Name:
-
DNA-R8
-
Emitting Color:
-
rgb
-
Laser Power:
-
5w,6w 35KPPS
-
Laser Diode TYpe:
-
TTL/Analog
-
Scanning Angle:
-
up to 60°
-
Control Mode:
-
SD, sound, auto, DMX (with RDM), master/slave mode, ILDA control
-
Working Enviroment:
-
-10-45degree
-
Size:
-
21*34*16.5cm/27cm (L*W*H)
-
Weight:
-
5.5kgs
Product Description

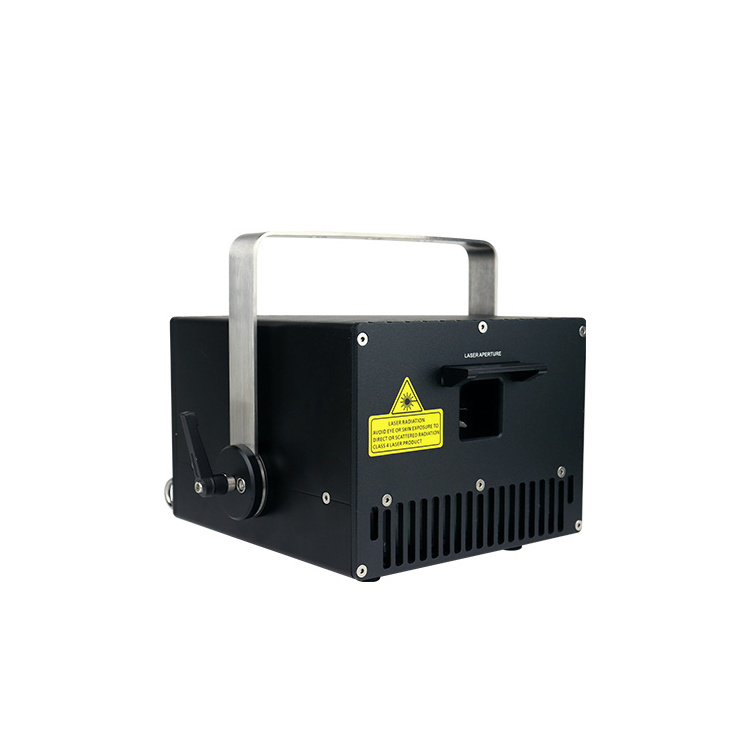

Above 2 pictures are for R8 5w 6W waterproof laser light, for waterproof model only have 1 power in, not have both Power in & out. IP56 rate.
Below are the information for 5-10w laser, waterproof and non waterproof the laser configuration is the same, just housing different.
Pub5 Housing, suitable for 5w 35kpps laser, 6w 35kpps laser
Pub8 housing, suitable for 8w 30kpps laser, 10w 30kpps laser. Max10 for 15w 40kpps laser
Features:
1. Private model products
2. The sealing level reaches the IP54, and the first floor is completely sealed. In the use, the dust and smoke oil can be avoided into the chassis, so that the life and brightness of the extended laser can be extended.
3. The heat dissipation layer is on the 2nd floor. The overall heat sink is combined with the laser light source, and the heat dissipation area reaches 100%, which extend the life of the laser.
Pub5 5w, 6w laser housing details
|
Laser power
|
5W [Red: 1.5W 638nm; Green: 1.5W 520nm; Blue: 2W 445nm]
6W [Red: 1.5W 638nm; Green: 1.5W 520nm; Blue: 3W 445nm]
|
|
Cooling method
|
the whole machine is cooled by air cooling
|
|
Control Signal Mode
|
TTL/analog automatic switching Modulation voltage: ≦30K
|
|
Laser divergence angle
|
<1.2mrad (full angle)
|
|
Laser spot size
|
3*6.5mm at the light outlet
|
|
Galvanometer
|
AT35S 35kpps galvanometer high-quality dielectric film reflectance >99% @45°incidence (covered wavelength: 400nm-680mm)
|
|
Scan angle
|
up to 60°
|
|
Laser Service Lift
|
≥10000 hours (maintain the test results in a constant temperature environment)
|
|
Laser Class
|
Class IV
|
|
IP Rate
|
IP54
|
|
Control Mode
|
SD (built-in more than 200 effects), sound control, automatic operation, DMX 18/27 channels (with RDM), master/slave mode, ILDA
software control |
|
Back Controls
|
AT-S5 LCD, 3-pin 512 in/out, DB25 in/out, key switch, remote in/out, power in/out, fuse
|
|
Working temperature
|
-10C-45°C
|
|
Application
|
stage, DJ, event disco, club, bar, etc
|
|
Size and Weight
|
Production size: 21*25*16.5cm /22cm (L*W*H) Net Weight: 5.5kgs
Carton Packing: 34*31*22cm Gross Weight: 6.5kgs 2IN1
carton：36*33*49cm 15kgs
flightcase size: 34*36*23cm 11kgs |
Pub8 8w 10w laser housing details, Max10 15w
|
Laser power
|
8W [Red: 2W 638nm; Green: 2W 520nm; Blue: 4W 445nm]
10W [Red: 3W 638nm; Green: 3W 520nm; Blue: 4W 445nm]
15W [Red: 5W 638nm; Green: 5W 520nm; Blue: 5W 445nm]
|
|
Cooling method
|
the whole machine is cooled by air cooling
|
|
Control signal mode
|
TTL/analog automatic switching Modulation voltage: ≦100K
|
|
Laser divergence angle
|
<1.2mrad (full angle)
|
|
Laser spot size
|
5*6.2mm at the light outlet
|
|
Galvanometer
|
AT40M 30/40kpps galvanometer high-quality dielectric film reflectance >99% @45°incidence (covered wavelength:
400nm-680mm) |
|
Scanning angle
|
up to 60°
|
|
Laser service life
|
≥10000 hours (maintain the test results in a constant temperature environment)
|
|
Laser Class
|
Class IV
|
|
IP Rate
|
IP54
|
|
Control Mode
|
SD (built-in more than 200 effects), sound control, automatic operation, DMX 18/27 channels (with RDM), master/slave mode, ILDA
software control |
|
Back Control
|
AT-S5 LCD, 3-pin 512 in/out, DB25 in/out, key switch, remote in/out, power in/out, fuse
|
|
Working Tempertaure
|
-10C-45°C
|
|
Application
|
Outdoor show, outdoor advertising, outdoor scenic parks, outdoor roofs, etc.
|
|
Size and weight
|
Size: 21*34*16.5cm/27cm (L*W*H) Net Weight: 10kgs
Carton Packing: 45*31*22cm Gross Weight: 11kgs
flightcase size: 45*36*23cm Gross weight: 16kgs
|
|
|
|
