This machine lifts the proportionally prepared raw grains to the raw grain silo. The discharge port is an inverted Y-shaped double discharge port, which can provide material for two grain silos.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V/50HZ or customizable, 380V/50HZ or customizable
-
Power:
-
/
-
Weight:
-
5000 KG
-
Dimension(L*W*H):
-
customizable
-
Type:
-
Pet food processing machine
-
Material:
-
Strainless Steel
-
Advantage:
-
Easy Control
-
Capacity:
-
2T
-
Certification:
-
CE Certificate
-
MOQ:
-
1 Set
-
Package:
-
Wooden Case
Quick Details
-
Applicable Industries:
-
Pet Shop
-
Place of Origin:
-
China
-
Brand Name:
-
/
-
Voltage:
-
380V/50HZ or customizable, 380V/50HZ or customizable
-
Power:
-
/
-
Weight:
-
5000 KG
-
Dimension(L*W*H):
-
customizable
-
Type:
-
Pet food processing machine
-
Material:
-
Strainless Steel
-
Advantage:
-
Easy Control
-
Capacity:
-
2T
-
Certification:
-
CE Certificate
-
MOQ:
-
1 Set
-
Package:
-
Wooden Case
Product Overview
Related Product
Bucket elevator
1.
Power 2.2kw
2.Size 800X580X4500MM
Mixed raw grain silo
1.Power 7kw
2.Material: carbon steel, barrel wall thickness 4mm
3.Volume:3 cubic meters
4.Size:1500X1500X3200MM
Install a level gauge at the feeding port of this machine. Equipped with internal spiral stirring and built-in mixing function. This machine comes with a screw conveyor to transport the mixed materials to the ultrafine crusher.
Droplet type coarse classifier
1.Production: 95% 20-40 mesh 2000-2800kg/h
2.Power: Main motor 37kw
3.Feeding motor: 1.1kw
4.External dimensions: 8300X3500X4000MM
This machine consists of a main unit, a cyclone separator, a pulse dust collector, a high-pressure fan, an electrical control box, and other parts. Suitable for crushing feed, chemical, and agricultural by-products.
Platform silo
1.Size:1500X150X5500MM
2.Material: Carbon steel
3.Volume:3 cubic meters
Install a vibrator on the silo wall to prevent powder suspension.
Ultra fine dust-free crushing unit
1.Crushing disc diameter: 1000MM
2.Production: 95% 120-80 mesh 2000-2800kg/h
3.Power: Main motor 110kw
4.Feeding motor: 1.1kw
5.External dimensions: 8300X3500X4000MM
This machine consists of a main unit, a cyclone separator, a pulse dust collector, a high-pressure fan, an electrical control box, and other parts. Suitable for crushing feed, chemical, and agricultural by-products.
Strong wind screening machine
1.Power: 1.5kw
2.Size: 1475X1461X2098MM
3.Applicable mesh size: Screening below 110 mesh, equipped with a spiral discharge system.
This machine screens out impurities that have been filtered through 40 mesh. For example, fiber impurities such as woven bags and rope heads in raw grains cannot be completely crushed by ultrafine crushers.
Mixing mixer silo
1.Size 1500X150X4500MM
2.Material: Carbon steel
3.Volume:2 cubic meters
Horizontal mixer
1.Material: carbon steel, barrel wall thickness 4MM
2.Volume:3 cubic meters
3.Size 3100X1300X2500MM
This machine has an internal dual axis mixing wing to fully mix and mix materials.
Meat puree high-pressure pump
1.Power:3KW
2.Production capacity varies with the host
3.Size:1200X600X1500MM
4.Material appearance: stainless steel
This machine delivers meat puree under high pressure to the horizontal mixer.
YS120-II twin-screw puffing machine
1.Total power: 215kw, actual energy consumption 100kw
2.Main motor: 200kw Siemens Bede motor
3.Modulator: 5.5kw
4.Feeder: 2.2kw
5.Rotary cutting: 2.2kw
6.Circulating oil pump: 2.2kw
7.Flow meter water pump: 0.37kw
The extruder is equipped with a control system, a vertical spiral feeding device, a modulator, a feeding system, an extrusion system, a rotary cutting system, a heating system, a main driving system, and a constant torque variable frequency speed control system for the rotary cutting, feeding, and driving systems of the extruder. The power is strong, the operation is stable, and energy is saved
11 meters five layer steam dryer
1.Power: 72.5kw
2.Size: 1550X1900X2800MM
3.Material: 201 stainless steel
4.Conveyor chain width 1400mm, 201 stainless steel, 304 stainless steel mesh fabric
5. Transmission 5 groups: 11kw
6. Ten sets of hot air circulation system: 55kw
7. Two sets of dehumidification: 4.4kw
8. Fabric feeder: 1.1kw
Double pitch roller chain, thickened mesh belt with strong load-bearing capacity. Chain wheel drive, smooth operation without dead points.
Fully automatic seasoning line
1.Power 6kw
2.Production varies with the host
3.Size 3800X800x1900MM
4.Material 201 stainless steel
This machine is equipped with dual barrels, one for spraying oil and one for spraying food attractants. High degree of automation, simple operation, and wide application range.
Five meters and five layers of cooling
1.Production varies with the host
2.Power 6kw
3.Size: 5500x11500x1900MM
4.Material appearance 201 stainless steel
5.Power supply voltage: 380/50Hz
Slow down the prepared materials to lower the interior of the product to room temperature. Cooling enters the packaging machine.
Finished product warehouse
1.Size 1500X150X3500MM
2.Material: Carbon steel
3.Volume:7 cubic meters
Products Application
Details Images

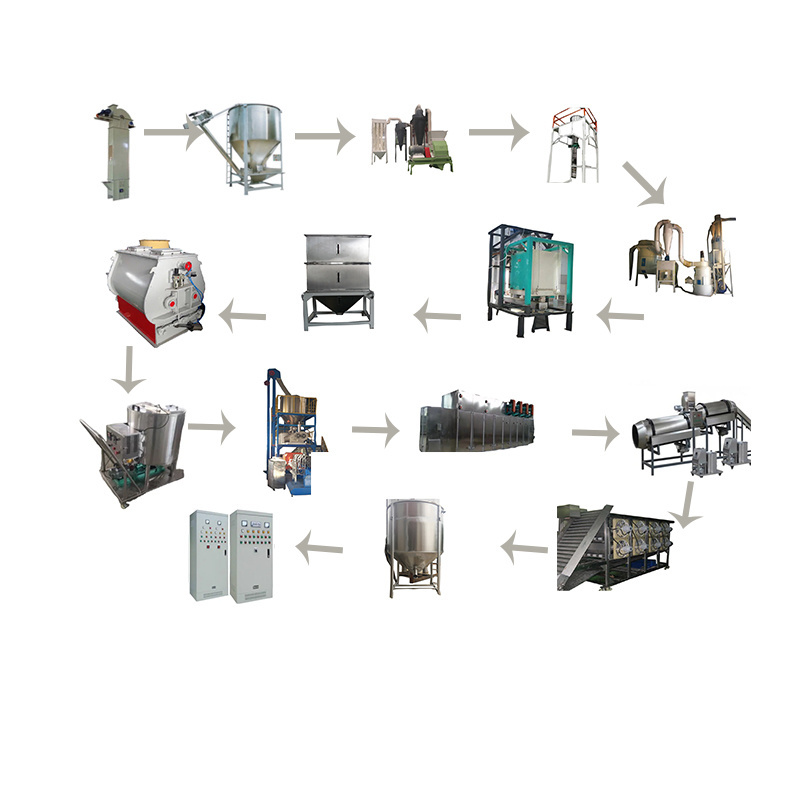

Mixer → Screw Conveyor → Extruder → Air Conveyor → Dryer → Hoister → Flavoring Roller → Oil Sprayor → Cooling Conveyor → Packing Machine
