Name: Test Platform
Brand: Lu Wang
Original: China
Shipments such as hoists, safety locks and so on must pass the test platform before they can be shipped.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
2*2.2KW
-
Min. Lifting Height:
-
1.1m
-
Table Size:
-
7.5*0.69*1.18m
-
Overall Dimensions:
-
7.5m
-
Weight:
-
880kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Color:
-
customered
-
Material:
-
Aluminium Alloy
-
Type:
-
Hot galvanized
-
Product name:
-
suspended platform
-
Keywords:
-
gondola suspended platform
-
Platform:
-
7.5m
-
Capacity:
-
800kg
-
Voltage:
-
220v /240v /380v /415v
-
Certification:
-
ISO9001/CE
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Luwang
-
Power:
-
2*2.2KW
-
Min. Lifting Height:
-
1.1m
-
Table Size:
-
7.5*0.69*1.18m
-
Overall Dimensions:
-
7.5m
-
Weight:
-
880kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Color:
-
customered
-
Material:
-
Aluminium Alloy
-
Type:
-
Hot galvanized
-
Product name:
-
suspended platform
-
Keywords:
-
gondola suspended platform
-
Platform:
-
7.5m
-
Capacity:
-
800kg
-
Voltage:
-
220v /240v /380v /415v
-
Certification:
-
ISO9001/CE
Product Description
Product Application

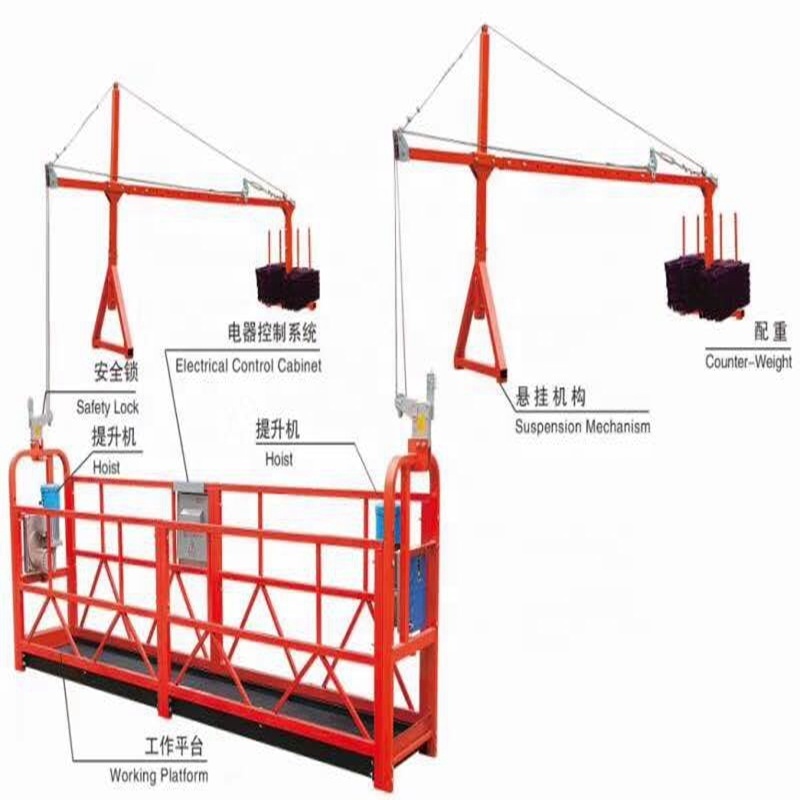

ZLP1000 electric lifting platform adopts 7.5 meters long platform, elevator adopts 1.8 motor, wire rope diameter 9.1 mm, greater power, longer size, more load.
Main Features
1) The electric platform weighs 1 tons.
2) Speed up 9 meters per minute
3) The platform is 7.5 meters in length.
Detailed Images
Machine Parts
Main Features
Name: hoist
Brand: Lu Wang
Original: China
A motor with a power of 1.8 kilowatts is used to raise the speed of 8.5 meters per minute.
Machine Parts
Name: safety rope
Brand: Lu Wang
Original: China
The diameter of the safety rope is 1.6 mm, which is made of polyester and twist. The platform needs 2 large ropes.
Main Features
Name: wire rope
Brand: France
Original: China
The diameter of the wire rope is 9.1 mm.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
12032 (L) * 2352(W) * 2393(D)
|
|
|
Weight
|
22 T
|
|
|
Packaging Details
|
Electric lifting platform packaging is tightened with packing straps, lifter carton, electric box carton, spare parts carton, and then packed in the container, so that its weight is evenly distributed in the container.
|
|
|
Packaging
|
|
|
|
Size
|
1.6m
|
|
|
Weight
|
400kg
|
|
|
Packaging Details
|
Tray with iron tray, fasten parts, then bind with film.
|
|
