- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SKYCOM
-
Applicable fiber:
-
SM,MM,DS,NZ-DS,EDF
-
Fiber Diameter:
-
100-150um
-
Coating Diameter:
-
100-1000um
-
Cleave Angle:
-
90
-
Weight:
-
0.45kg
-
Cleave Angl:
-
90°± 0.5°
-
Cut Length of Fiber Cable:
-
10~16mm (0.9mm)
-
Blade Lifetime:
-
40000 cleaves
Quick Details
-
Type:
-
Fiber optic cleaver
-
Model Number:
-
Skycom T-903
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SKYCOM
-
Applicable fiber:
-
SM,MM,DS,NZ-DS,EDF
-
Fiber Diameter:
-
100-150um
-
Coating Diameter:
-
100-1000um
-
Cleave Angle:
-
90
-
Weight:
-
0.45kg
-
Cleave Angl:
-
90°± 0.5°
-
Cut Length of Fiber Cable:
-
10~16mm (0.9mm)
-
Blade Lifetime:
-
40000 cleaves

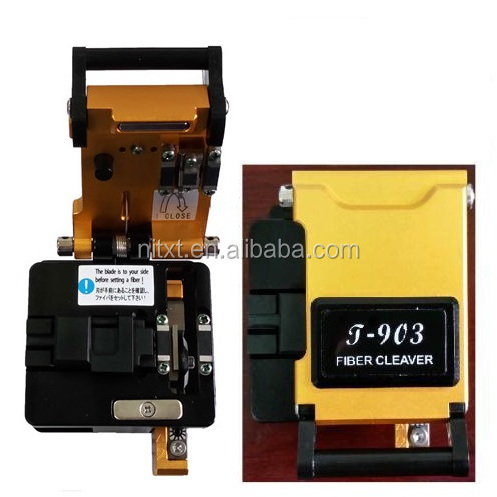

T-903 optical fiber cleaver cutter with multi-function
Description
The T-903 is an economic multi-action and high precision fiber cleaver, standard length 16mm. Compact, slim and simple is available for application.
General
1) Weight: 0.45kg.
2) Dimensions: 63(W) x 76(D) x 63(H)mm.
Features
♦ Stable operation with Multi-Action process
♦ Typical cleave angle: 90°± 0.5°
♦ Compact & handy outfit design
♦ H igh precision cleaving blade with 16 cleave spots
♦ Scratch-free anodized body surface
♦ Simplified blade adjustment & replacements
♦ Built-in maintenance tool attached: on the bottom
Specification
♦ Applicable fiber: SM, MM, DS, NZ-DS, EDF, 125um OD of Nude Fiber Cable
♦ Fiber Diameter: Core of Fiber Cable single(0.25 & 0.9mm)~12 multicore
♦ Coating Diameter: 100~1000um
♦ Cleave Angle: 90°± 0.5°
♦ Cut Length of Fiber Cable 9~16mm (0.25mm),10~16mm (0.9mm)
♦ Blade Lifetime: 36000 cleaves
> Product Parameters of Fiber Optic Cleaver
|
Item No. |
T-903 |
|
Applicable fiber |
SM, MM, DS, NZ-DS, EDF |
|
Fiber Diameter |
100~150um |
|
Coating Diameter |
100~1000um |
|
Cleave Angle |
90°± 0.5° |
|
Cleave Length |
single fiber standard 8~22mm |
|
Blade Lifetime |
36000 cleaves |
|
Dimensions |
63mm *76mm *63mm |
|
Weight |
About 450g |
