Best WiFi Smart Switch Wireless Remote Control Light Timer Relay Switches 110V 220V Home Automation Module with KT1004 KR2201W

• Remote ON/OFF – Turn electrical devices on/off from anywhere
• App Support – Free iOS and Android mobile App "Smart Life"
• Sync Status – Real-time device status provided to App
• Timing – Set scheduled/countdown/loop timers to turn on/off at specified time
• Share Control – Control your smart home together with your family
• Scene – Turn on/off a gang of devices with one tap
• Voice Control (Smart Home) – Works perfectly with Amazon Alexa, Nest, Google Home and etc.

Product Parameters

Input voltage: AC 90-250V

Output voltage: AC 90-250V

Maxload: 10A

Wireless type: Wi-Fi & RF433Mhz

Wireless standard : IEEE802 .11b/g/n

1. Download "Smart Life" by scanning the QR code or searching in App Store
2. In "Smart Life" create an account and select "My Home" on the bottom left corner. Then, select "Add Device"
3. On the top right corner, select "All devices"
4. Then, select the third option "Lighting Devices"
5. On the bottom of the screen, click "Confirm light blinks rapidly"
6. The "Enter your home's Wi-Fi password will show up, just type n your home wifi password and click "ok"
7. Connecting screen will pop up, just be patience. Afterward, you will return to Device added successfully. Just click "completed"

1. In "Amazon Alexa" app, open up the menu by selecting the top left icon
2. Select "Skills & Games" search for "Smart Life"
3. Click "ENABLE SKILL" and type in the user name and password you've registered on "Smart Life" App
4. Then, just click "Add Device"
5. Now you can control the light switch with your voice. Remember to check the name of your light switch on an app. (For example, if your light switch is named switch 1, you will have to tell Alexa to switch on switch 1)

• Momentary: Push the remote button, the relay connects, release the remote button, the relay dis-connects.
• Toggle: Push once the remote button, the relay connects, push twice the remote button, the relay dis-connects.
• Latching: Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.

Press the learning button continuously on the receivers for 8 times, the light will flash for seven times and switch off. Code cleared, receiver rest.
Note that resetting means all your paired remote controls/light switch will need to be re-paired in order to control the receiver again.

Setting Momentary Mode:

Press the learning key on the Receiver once, the LED on the Receiver will flash for once then switch on.

When the LED is on, press the button on the remote control/light switch(the one you wish to control the receiver with), the LED (on the Receiver) will flash for 3 times and switch off, which indicates learning complete.

Setting Toggle Mode:

Press the learning key on the Receiver twice, the LED on the Receiver will flash for twice then switch on.

When the LED is on, press the button of the remote control/light switch(the one you wish to control the receiver with), the LED (on the Receiver) will flash for 3 times and switch off, which indicates learning complete.

Setting Latching Mode:

Note: For latching mode, in order to pair with more remote control/light switch, you need to learn two different button, the first time learning is for ON, the second time learning for OFF.

For example: button A = ON, button B = OFF

Press the learning key(on the Receiver) 3 times, the LED (on the Receiver)will flash for 3 times.

When the LED is on, press the button on the remote control/light switch(the one you wish to control the receiver with). Press the remote button A, the LED (on the Receiver) will  flash for 3 times . Press the remote button B, the LED (on the Receiver) will flash for 3 times. 3 seconds later, the LED indicator will switch off which indicates learning complete.

A = ON, B = OFF.

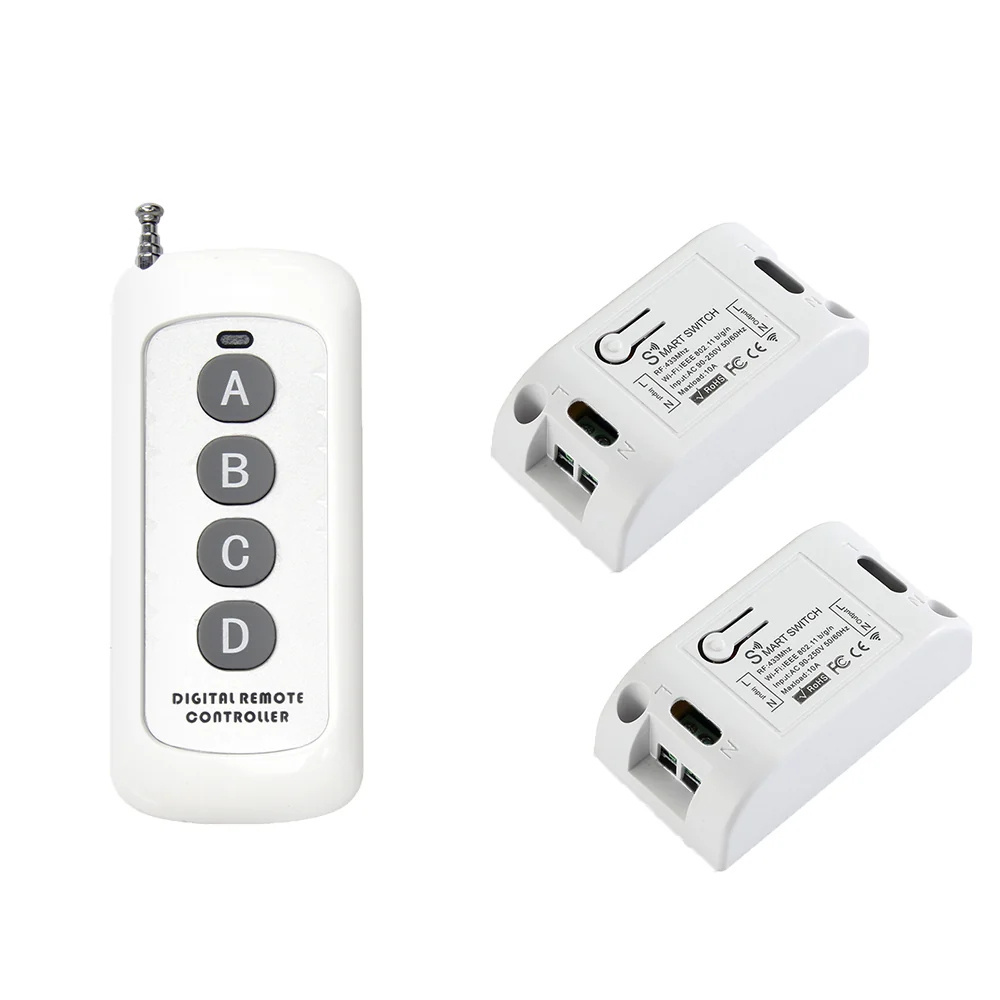

Remote Control (KT1000) Specifications:
Weight                                                     0.04 kg
Size                  90(mm) x 40(mm) x 20(mm)
Max Range                                      300 Meters
Operational Frequency                 RF433MHz
Battery                    23A 12V Alkaline Battery(Battery was not include)
