Quick Details
-
Ink Type:
-
sublimation ink, water based sublimation
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ENJET
-
Voltage:
-
380V/220V
-
Dimensions(L*W*H):
-
3145mm*1800mm*680mm
-
Weight:
-
ISO9001
-
Certification:
-
less than 430kg
Quick Details
-
Print Dimension:
-
1800mm/3200mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
sublimation ink, water based sublimation
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ENJET
-
Voltage:
-
380V/220V
-
Dimensions(L*W*H):
-
3145mm*1800mm*680mm
-
Weight:
-
ISO9001
-
Certification:
-
less than 430kg
Main Features:
Major parameters -Print speed
Production mode: 3pass\360X1800dpi 85square meter/h;
EQ mode: 4pass\720X1200dpi 65square meter/h
High precision mode: 6pass\720X1800dpi 45square meter/h, Paper 1.93m, Actual printable width 1.9m
Printing system: 1000W 220V/10A
Drying system: 3600W 220V/16A
Printing system:
Size: 3145X1632X840mm
Packing size: 3200X900X900mm
G.W.:430KG N.W.:320KG
Drying system: 2460X430X380mm
G.W.:50KG N.W.:35KG
Details:
Hanson mainboard; Main engine and support; Clean structure; Platform aspirating control; Real-time Dry system; German igus tank chain; Gigabit print port; Back and forth paper poles; Forward and backward pull bars; X and Y-axis 2 way Leadshine Integrated motor; Print Anti - hanging rub trigger; High precision trolley bottom plate; Japanese THK ultra-silent guide rail; Dual power constant tension paper stacker; Large capacity ink supply system; High precision printing platform; American fluororubber press paper wheel - can be lifted.
We keep improving and perfecting our high quality digital printing machine and service. At the same time, we work actively to do research and development for the industrial high speed textile digital printing machine. We sincerely look forward to hearing from you. Give us a chance to show you our professionalism and passion.
| Machine Parameters | |||||||||

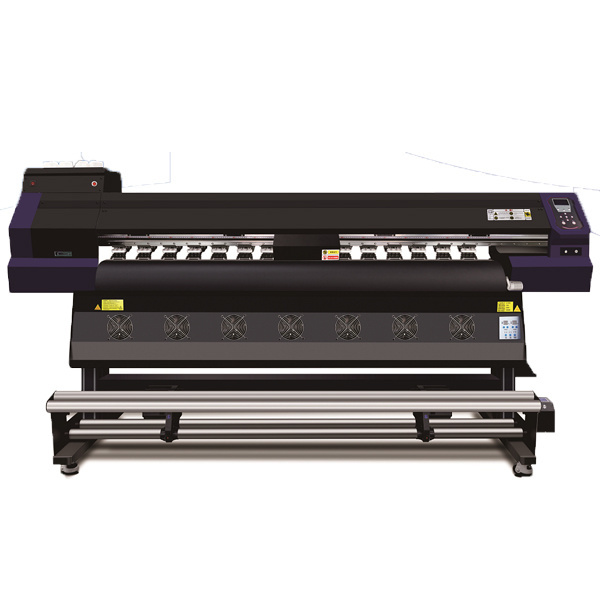

| Machine Name | Digital Textile Sublimation Printing Machine | ||||||||
| Model | ENJET E73-190 | ||||||||
| Print Heads | 3*4720 | ||||||||
| The Largest Printing Width | 1900mm | ||||||||
| Suitable for the Fabric Type | nylon, polyester(transfer paper over 40gsm) | ||||||||
| Types of Ink | Sublimation Ink/disperse ink | ||||||||
| The Ink Color | CMYK | ||||||||
| The Printing Speed | 2 pass, 120/h; 3 pass,85/h; 4 pass, 65/h; 6 pass, 45square meter/h | ||||||||
| Image Type | EPS, TIF, JPG, PDF | ||||||||
| PRI Software | Wasatch/Neostampa/Maintop 6.0/ Photoprint/ONYX etc. | ||||||||
| Computer Configuration |
Win 7 64bit, Win10 64bit, Hard Disk: NTFS, C; Disk: NTFS,C; Disk
Space: More than 100G, GPU: ATI Discrete GPU, CPU: Above intel i5/i7, Gigabit LAN |
||||||||
| Transfer Medium | Auto media Feeding,Tension collecting take-up system | ||||||||
| Heater | External Dryer&Heating System | ||||||||
| Head Moisture Method | Auto Moisturizing&Cleaning Function | ||||||||
| Power |
Input:210-230VAC, 50/60Hz 16A. Print system: 1KW
Dryer: Max 3.6KW |
||||||||
| Sending Materials Type | Roll to Roll | ||||||||
| The Mode Environment | Temperature 20℃~30℃, Humidity 35%~65% | ||||||||
| Overall Dimensions | 3145mm*1800mm*680mm | ||||||||
| Package Dimensions | 3200mm*1000mm*900mm | ||||||||
| Weight | 430kg or less | ||||||||
3.2m large format reflective vinyl sign advertising outdoor billboard printe
We provide you :
2. English RIP and Promon printingsoftware
3. Online training support
4. Technical support
