Quick Details
-
Brand Name:
-
Shengda
-
Model Number:
-
LWSY-50-300
-
Product Name:
-
LC diesel hydraulic oil flow meter for tanker unloading
-
Accuracy:
-
0.5%
-
Medium:
-
oil, etc.
-
Output:
-
4-20mA
-
Communication:
-
RS485/Modbus/HART
-
Working temperature:
-
-20~60℃; 5%~90%RH
-
Material:
-
Cast iron, cast steel
-
Connection:
-
Flange
-
Brand name:
-
Shengda
-
OEM:
-
Yes
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
2 years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shengda
-
Model Number:
-
LWSY-50-300
-
Product Name:
-
LC diesel hydraulic oil flow meter for tanker unloading
-
Accuracy:
-
0.5%
-
Medium:
-
oil, etc.
-
Output:
-
4-20mA
-
Communication:
-
RS485/Modbus/HART
-
Working temperature:
-
-20~60℃; 5%~90%RH
-
Material:
-
Cast iron, cast steel
-
Connection:
-
Flange
-
Brand name:
-
Shengda
-
OEM:
-
Yes

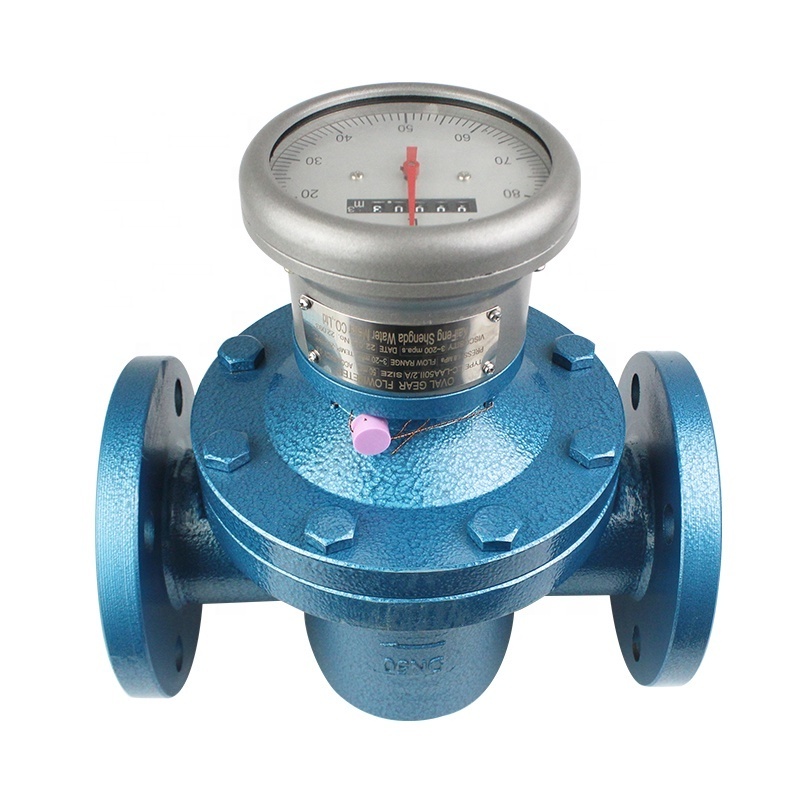

LC diesel hydraulic oil volume type flow meter positive displacement flow meter for tanker unloading
LC diesel hydraulic oil volume type flow meter positive displacement flow meter for tanker unloading
General Technical Specification
1. Materials of main parts and the nominal operating pressure
| Shell and cover | cover plate | oval wheel | Rotary shaft | Sheath of shaft | Nominal pressure (MPa) | |
| LC-A | Cast steel | Cast iron | Stainless | Bronze(with oil) or rolling bearing | 1.6 | |
| LC-E | Cast steel | Cast iron, Stainless steel |
Under DN50 6.3
DN80-100 4.0 DN150-200 2.5 |
|||
| LC-Q | Cast iron | Cast iron |
Alloy aluminum |
graphite |
1.6 | |
| LC-B, C | Stainless | Stainless | Stainless |
graphite |
1.6, 2.5 |
|
| LC-L |
Cast aluminum |
Cast iron,
Stainless |
Alloy
aluminum |
Bronze(with oil), graphite | 1.6 | |
| Notes:1. OCr18Ni12Mo2Ti for type LC-C; OCr18Ni9Ti for type LC-B. | ||||||
2. Accuracy class: class 0.5,class 0.2 (normal operating temperature -10℃~+60℃)
3. Measured media temp. (environment temperature -41℃~+50℃) LC-A,B,C:
-20℃~+60℃; 60℃~200℃(with high temp. radiator installed) LC-Q,L: -20℃~+60℃;
4. Explosion-proof mark: ExiaⅡCT5, dⅡBT4
LC diesel hydraulic oil volume type flow meter positive displacement flow meter for tanker unloading
Others:
1.The stainless steel flowmeters are specially made for the chemical liquid measurement 98% sulphidic acid,60% nitric acid, 50% caustic acid.
2. Prior to the delivery of the meter, it has been calibrated with the light diesel oil in the factory, and water calibration is not allowable in order to prevent the oval wheels from rusting. For the detail, see the national inspecting procedures standard JJG 235-99 <Verification Regulation of Oval Wheel Flowmeters>.
3. The strainer is separate product with separate price (complete sets are also provided).
Notice for Order
1. Name, type, specification, material;
2. Media temperature, operating pressure, flow range;
3. Media "Viscosity" or the name of the media;
4. Special requirement (for instance explosion-proof mark, etc);
5. Name of work units of ordering and receiving products;
6. Detailed address, telephone number and post code;
7. Work unit for settling accounts, bank and the account code;
8. The arriving station and the linkman;
9. Means for transportation;
10. Please contact us if you need more details about the related products;
11. We promise return goods,change and repair for our product and followed service during the product’s service time of use.
