Quick Details
-
Keypad Button Material:
-
Metal/rubber/custom
-
Cross Reference:
-
custom
-
membrane switch:
-
membrane switch,membrane keypad,membrane sticker,membrane panel
-
Actuation force::
-
Flat: 57 to 284g (2 to 10oz),Tactile: 170 to 397g (6 to 14oz)
-
Switch height::
-
Flat: 0.1 to 0.5mm,Tactile: 0.6 to 1.5mm
-
Environment::
-
Operating temperature: -40 to 80°C,Storage temperature: -40 to 80°C
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Smart
-
Model Number:
-
waterproof membrane switch
-
Keypad Button Material:
-
Metal/rubber/custom
-
Cross Reference:
-
custom
-
membrane switch:
-
membrane switch,membrane keypad,membrane sticker,membrane panel
-
Actuation force::
-
Flat: 57 to 284g (2 to 10oz),Tactile: 170 to 397g (6 to 14oz)
-
Switch height::
-
Flat: 0.1 to 0.5mm,Tactile: 0.6 to 1.5mm
-
Environment::
-
Operating temperature: -40 to 80°C,Storage temperature: -40 to 80°C
Products Description
|
Material
|
Polycarbonate/PET/PVC/Rubber/Glass
|
|
Surface
|
Matt/Glossy Surface
|
|
Botton Options
|
Tactile: metal dome, poly dome, silicone button
Non-tactile: flat button, printed silver spot on the circuit
|
|
Cable
|
Assembly LED/FFC Cable
|
|
Window
|
Clear/Transparent/Color Window
|
|
Adhesive
|
3M 467, 468, 9448A etc
|
|
Color
|
Pantone and RALcolor matching system
|
|
Connector
|
1.0mm pitch, 2.54mm pitch
|
|
Artwork Format
|
CAD ,CDR,AI ,Corel Draw
|
|
Circuit option
|
Silver printed conductive inks, FPC, PCB Printing
|
|
Certificate
|
ISO9001、RoHS、CE etc.
|

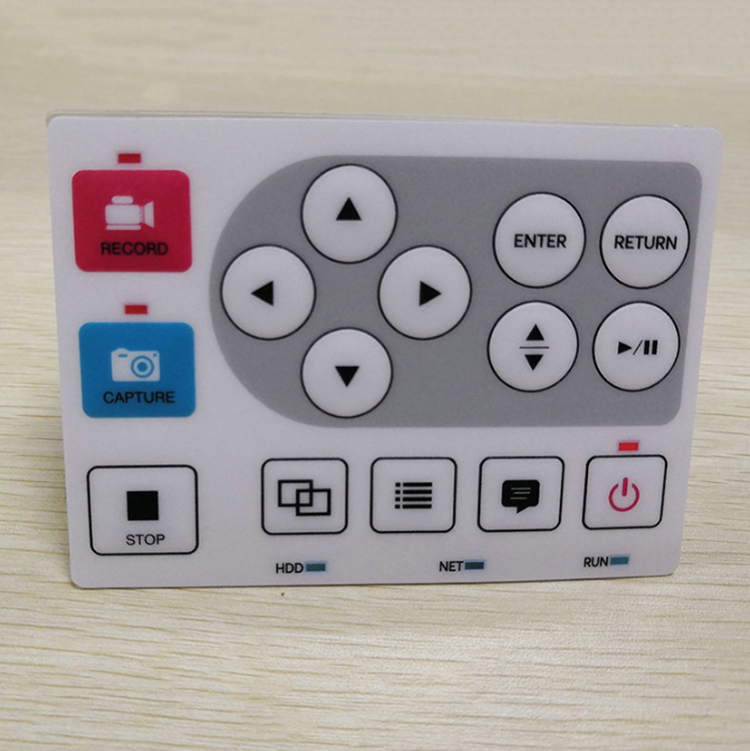

Product Display
|
Electrical Performances
|
|
|
|
|||
|
Wire Resistance
|
0.5mm width,<1Ω/cm
|
Rated Current
|
25-100mA,0-30V DC
|
|||
|
Insulation Resistance
|
>100MΩ 250V DC
|
Working Voltage
|
<50V DC
|
|||
|
Non-tactile Switch
|
0.1-0.4mm
|
Tactile Switch
|
0.4-1.0mm
|
|||
|
Working Life
|
>1 million times
|
Working Temperature
|
-40℃-70℃
|
|||
|
Working Humidity
|
40℃,98%RH No Influence
|
Substrate Voltage
|
1500V DC
|
|||
|
Feed backTime
|
10ms
|
Tail Folding
|
R>1,180
|
|||
|
Art
|
Ordinary Material
|
|
|
||
|
Graphic Overlay
|
|
Finish
|
Specification
|
||
|
|
PC
|
Gloss
|
0.175/.25/.35/.5 mm thickness
|
||
|
|
PC
|
Matt
|
0.175/.25/.35/.5 mm thickness
|
||
|
|
PET
|
Fine Texture
|
0.15/.20 mm thickness
|
||
|
|
|
Valet Texture
|
0.15/.20 mm thickness
|
||
|
|
|
Gloss with Hard Coat
|
0.18 mm thickness
|
||
|
Top Adhesive
|
PET Double-sided Tape
|
|
0.10/.125mm
|
||
|
|
Paper Double-sided Tape
|
|
0.10mm
|
||
|
|
Transfer Tape
|
|
0.06/.12mm
|
||
|
Retainer
|
PET
|
Gloss
|
0.125mm
|
||
|
Spacer
|
PET Double-sided Tape
|
|
0.225/.275mm
|
||
|
Circuit Layer
|
PET
|
Gloss
|
0.125mm
|
||
|
Rear Adhesive
|
Paper Double-sided Tape
|
|
0.10mm
|
||
|
|
Transfer Tape
|
|
0.06/.12mm
|
||
|
Connector
|
Pin
|
|
Metal,Male/Female 2.54mm
|
||
|
|
House
|
|
Female,2.54mm
|
||
|
Conductive Layer
|
Silver Paste
|
|
Acheson ELECTRODA 820B
|
||
|
|
Carbon Paste
|
|
Acheson ELECTRODA 423SS
|
||
|
|
Insulation Ink
|
|
Acheson ELECTRODA 452SS
|
||
Advantage:
* We have ISO 9001: 2015 authentication.
* Small trial orders can be accepted, free sample is available.
* Our price is reasonable and keep top quality for every clients
