Quick Details
-
Material:
-
Zinc Alloy Body
-
Color:
-
PVD Gold/ Rose Gold
-
Type:
-
Cabinet lock, Locker lock
-
Card Type:
-
IC/RF/METIC/M1 Card
-
Unlocking Way:
-
Cards
-
Low Voltage warming:
-
Yes
-
Warranty:
-
1 year, lifetime maintenance
-
Certification:
-
CE FCC ROHS
-
Application:
-
SPA/sauna bath center, swimming pool, gym,golf course, supermarket,
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tediton
-
Model Number:
-
TeHC26
-
Material:
-
Zinc Alloy Body
-
Color:
-
PVD Gold/ Rose Gold
-
Type:
-
Cabinet lock, Locker lock
-
Card Type:
-
IC/RF/METIC/M1 Card
-
Unlocking Way:
-
Cards
-
Low Voltage warming:
-
Yes
-
Warranty:
-
1 year, lifetime maintenance
-
Certification:
-
CE FCC ROHS
-
Application:
-
SPA/sauna bath center, swimming pool, gym,golf course, supermarket,

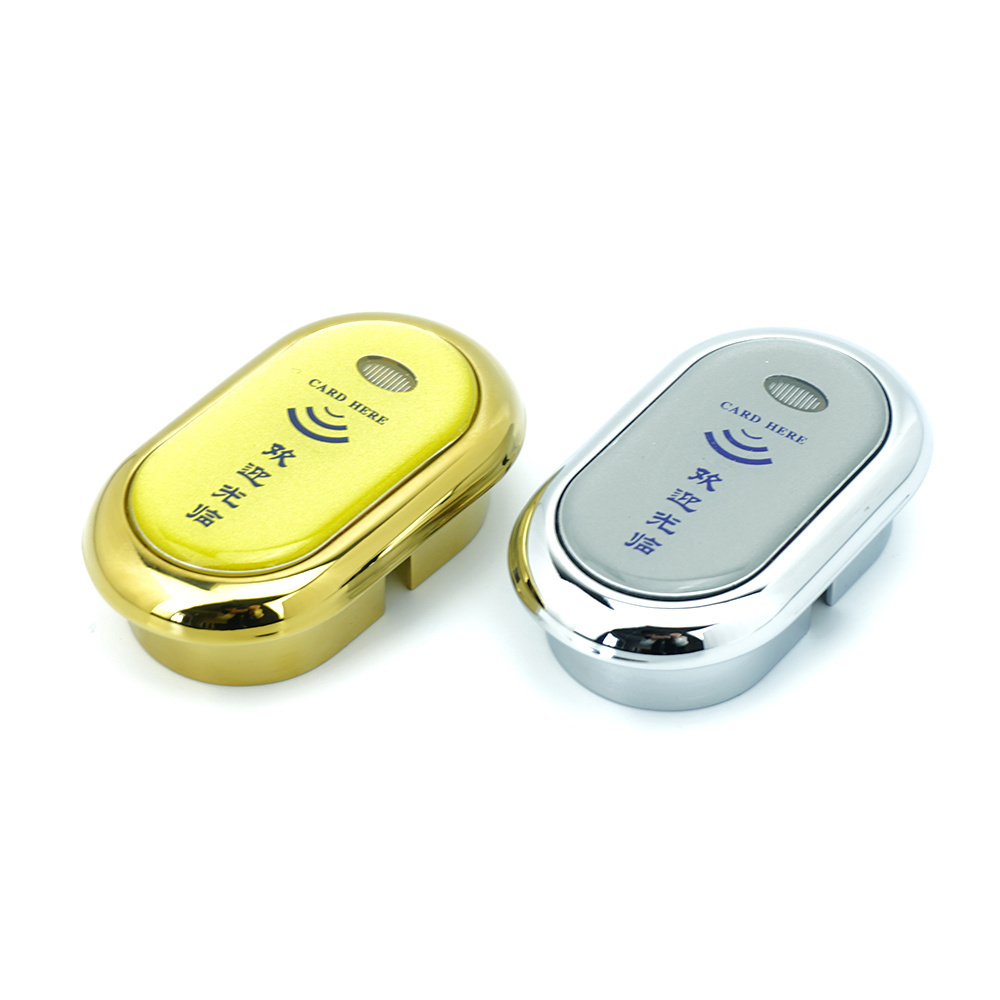

Waterproof Electronic Digital RFID Magnetic Cabinet Locker Lock for SPA GYM
FEATURES
1. Single card unlocking or double card unlocking both available
2. Bouncing function: when the lock opened by EM card, the cabinet door will be bounced automatically so that handle is not needed.
3. Card in plastic wristband or watchband – waterproof, moisture proof, anti-corrosion, heat-resistant.
4. External power interface(Audio interface)
5. Mechanical keys available in some certain case
6. Applicable to agent, school, SPA/sauna bath center, swimming pool, gym,golf course, supermarket, hotel, company, factory, household, business clue, etc
TECHNICAL PARAMETER
|
Material |
Zinc Alloy |
|
Finish |
Rose Gold/ PVD Gold |
|
Unlocking Card |
TM/ EM/ M1 card one/ ID |
|
Unlocking methods |
Single card/ Double cards |
|
Four level management |
Master card, manager card, service card, guest card. |
|
Starting time |
<1 second |
|
Master card capacity |
1 |
|
Guest card capacity |
16 |
|
Working Voltage |
Direct current 1.5V, 4 pieces of 2A alkaline battery |
|
Battery Life Span |
over 15 months |
|
External power interface |
Yes |
|
Static power consumption |
<5μA |
|
Dynamic power consumption |
About 200 mA |
|
Working temperature |
-30 to 80 degreed celsius |
|
Working humidity |
<95% |
|
The battery lift |
Open door for 1000 times |
|
Working Humidity |
≤ 80% |
|
Lock Weight |
2.8~3.4kg |
|
Warranty |
1 year, lifetime maintenance |
COLOR OPTIONS
SPECIFICATION
WRISTBAND/ TAG WITH RFID CARD OPTIONS
Lock Opening Ways:
1. Use master card to open
2. Use override mechanical key to pen. Take off the reader panel and find the cylinder inside the panel and open it with mechanical key.
3. Use outside battery box (
Emergency Powe supply is free for you
)
to open the locker when the battery power is low.
APPLICATION
