Quick Details
-
Model Number:
-
QS
-
Place of Origin:
-
Beijing, China
-
Horsepower:
-
22-1250 kw
-
Outlet Size:
-
6-48inch
-
Power:
-
22-1250 kw
-
Material:
-
Cast Iron/SS304/SS316/SS316L/duplex Stainless/SS904L
-
Shaft Seal:
-
Packing Seal, Mechanical Seal
-
Keywords:
-
Diesel Water Pump Set
-
Color:
-
Blue Red Yellow
-
Function:
-
Water Drainage
-
Feature:
-
High Efficiency
-
Impeller:
-
Double Suction
-
Driven:
-
Diesel Engine
-
Connection Type:
-
Belt/Direct Coupling
-
Application scope:
-
Flow Liquid Transfer
Quick Details
-
Application:
-
Developing World Water Solutions, Food and Beverage Industry, HVAC OEM, Industrial Utilities, Marine, Metal and Equipment Manufacturers, Mining industry, Raw Water Intake, temperature control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
High Pressure
-
Voltage:
-
380V/400V
-
Model Number:
-
QS
-
Place of Origin:
-
Beijing, China
-
Horsepower:
-
22-1250 kw
-
Outlet Size:
-
6-48inch
-
Power:
-
22-1250 kw
-
Material:
-
Cast Iron/SS304/SS316/SS316L/duplex Stainless/SS904L
-
Shaft Seal:
-
Packing Seal, Mechanical Seal
-
Keywords:
-
Diesel Water Pump Set
-
Color:
-
Blue Red Yellow
-
Function:
-
Water Drainage
-
Feature:
-
High Efficiency
-
Impeller:
-
Double Suction
-
Driven:
-
Diesel Engine
-
Connection Type:
-
Belt/Direct Coupling
-
Application scope:
-
Flow Liquid Transfer

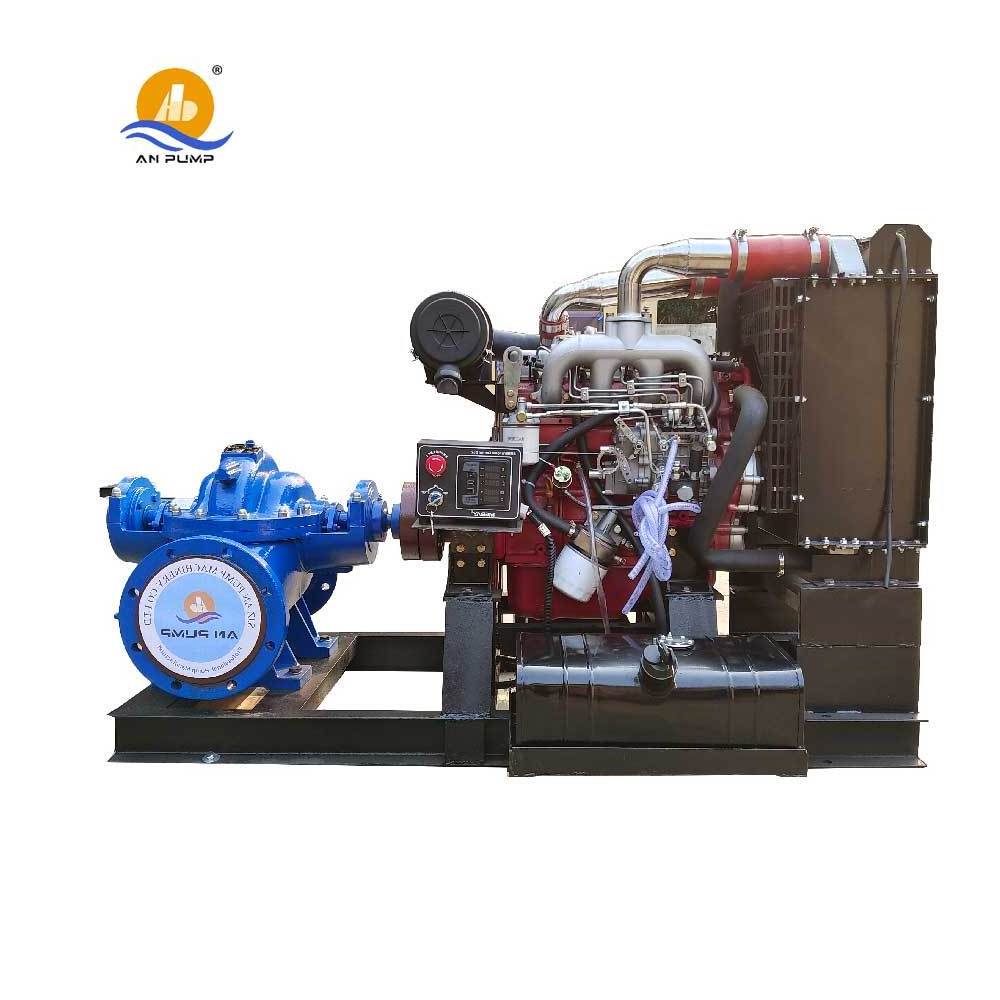

Garden Water Sprinkler Golf Course Flat Belt Driven Irrigation Pump
Model QS water pump is a single-stage double-suction horizontal split centrifugal pump used to transport pure water and liquids of both physical and chemical nature similar to water, with a maximum temperature of 80oc, suitable for water supply and drainage in factories, mines, cities, and electric stations, waterlogged land drainage and irrigation of farming land, and various hydraulic projects.
| Model | Capacity | Head | Speed(rpm) | Power | Efficiency(%) | NPSH(m) | Weight(kg) | ||
| (m3/h) | (L/s) | Shaft | Motor | ||||||
| 15QS-78 | 112-200 | 31-55 | 55-84 | 2900 | 30-51 | 45-55 | 68-75 | 5 | 150 |
| 150QS-50 | 120-220 | 31-61.2 | 35-52 | 2900 | 18.5-31.3 | 30-37 | 70-80 | 5 | 145 |
| 200QS-95 | 160-288 | 44.5-80 | 70.2-100 | 2900 | 60.8-88.6 | 90-110 | 62 | 5.5 | 245 |
| 200QS-63 | 180-351 | 50-97.5 | 37.5-69 | 2900 | 41-67.8 | 55-75 | 65-80 | 4.7-6.2 | 265 |
| 200QS-42 | 198-342 | 55-95 | 31-48 | 2900 | 30.5-40.2 | 37-45 | 76-82 | 4.8-8.2 | 219 |
| 250QS-65 | 342-612 | 95-170 | 50-71 | 1450 | 76.7-129.6 | 110-132 | 72-79 | 4 | 565 |
| 250QS-39 | 324-612 | 90-170 | 25-42.5 | 1450 | 40.2-67.7 | 55-75 | 75-86 | 4 | 428 |
| 250QS-24 | 342-576 | 95-160 | 17.4-27 | 1450 | 25.8-36.4 | 37-45 | 80-86 | 4 | 420 |
| 250QS-14 | 320-576 | 89-160 | 8.6-17.5 | 1450 | 15.4-22.1 | 22-30 | 75-85 | 4 | 405 |
| 300QS-90 | 540-936 | 150-260 | 57-98 | 1450 | 151-279 | 220-260 | 71-80 | 4.5-6.5 | 847 |
| 300QS-58 | 504-972 | 140-255 | 37-65 | 1450 | 99.2-168 | 180 | 78-84 | 5.5 | 572 |
| 300QS-19 | 504-935 | 140-260 | 11-23 | 1450 | 34.8-49.8 | 45-55 | 75-84 | 5.5 | 660 |
| 300QS-12 | 522-900 | 145-250 | 8-14.5 | 1450 | 22.4-33.1 | 30 | 75-80 | 5.5 | 660 |
| 350QS-125 | 740-1663 | 207-461 | 77-140 | 1470 | 313-620 | 500-680 | 70-81 | 6.5 | 1580 |
| 350QS-75 | 900-1440 | 250-400 | 54-80 | 1450 | 175-319 | 250-400 | 78-84 | 6.5 | 1200 |
| 350QS-44 | 864-1480 | 240-410 | 30-50 | 1470 | 121-188 | 160-220 | 79-84 | 6.5 | 1105 |
| 350QS-26 | 864-1440 | 240-400 | 16.5-32 | 1450 | 76.5-102 | 110-132 | 73-88 | 6.5 | 880 |
| 350QS-16 | 864-1440 | 240-400 | 10-20 | 1450 | 47.6-70 | 55-75 | 71-85 | 6.5 | 760 |
| 500QS-59 | 1150-2450 | 430-680 | 42-66 | 970 | 273-433 | 315-500 | 72-82 | 6 | 2750 |
| 500QS-35 | 1550-2410 | 430-670 | 31-40 | 970 | 137-247 | 240-280 | 80-88 | 6 | 2340 |
| 500QS-22 | 1296-2340 | 360-650 | 14-27 | 970 | 101-148 | 130-180 | 70-82 | 6 | 2010 |
| 500QS-20 | 2500-3800 | 694.4-1055 | 16-22 | 745 | 215-238.3 | 280-340 | 70-83 | 4.5-5.6 | 3030 |
| 500QS-13 | 1620-2325 | 450-646 | 10.6-15.2 | 970 | 70-79 | 110 | 85-89 | 6 | 2000 |
| 600QS-75 | 2300-3930 | 630-1092 | 49-80 | 960 | 442-730 | 550-900 | 85-90 | 7.5-8.7 | 4300 |
| 600QS-47 | 2502-3600 | 695-1000 | 32-56 | 970 | 392-460 | 450-550 | 80-88 | 7.5 | 3200 |
| 600QS-32 | 2304-3960 | 640-1100 | 20-37 | 970 | 228-310 | 280-380 | 84-89 | 7.5 | 2550 |
| 600QS-22 | 2340-3420 | 650-950 | 13-23.5 | 970 | 145-207 | 185-250 | 77-84 | 7.5 | 2500 |
| 800QS-76 | 4160-6600 | 1156-1722 | 63-82 | 740 | 976-1384 | 1400-1500 | 86-91 | 7.5-8 | 8000 |
| 800QS-32 | 4170-6460 | 1050-1795 | 23-33 | 730 | 391-580 | 450-630 | 78-84 | 6.5 | 5100 |
