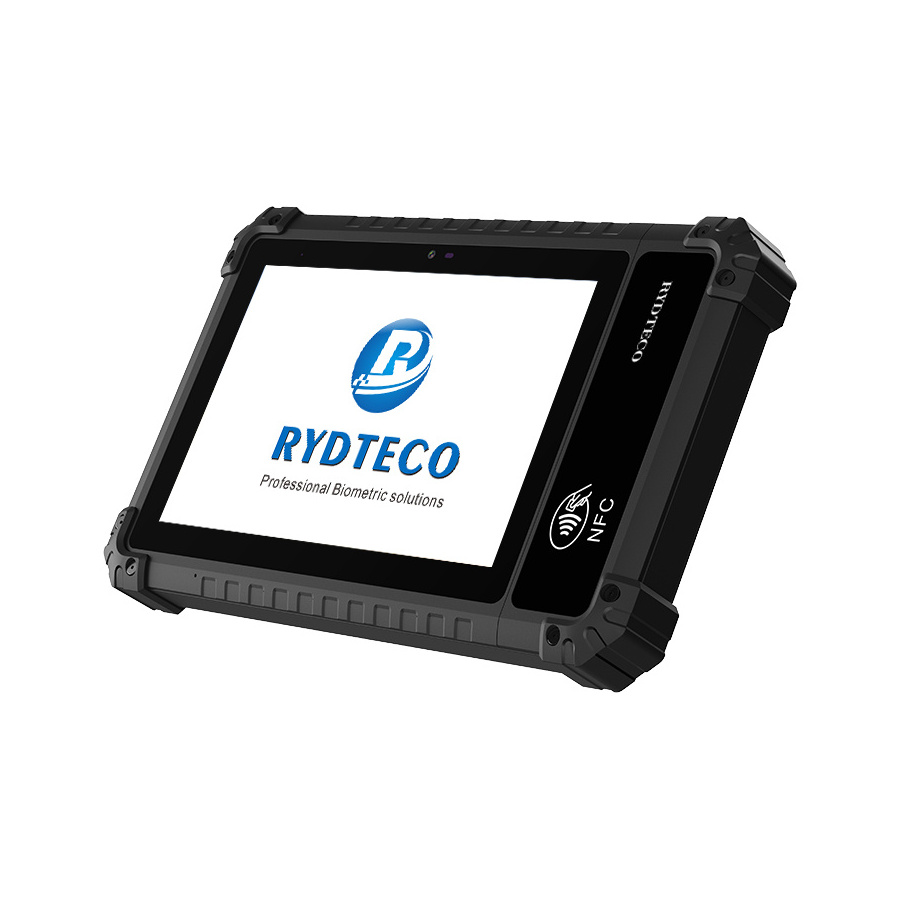

RG80-S2 is professional
Rugged Biometric Tablet 8 Inch IPS
Touch Display Android 10.0. We passed the certification of the android 10 GMS and guarantee the most basic function of the equipment stability, compatibility, through the certification of the hardware device is not easy to crash, card machine, at the same time to ensure the various services and software to be able to use Google.Have the ability to complete rapid fingerprint capture with optical FAP20/FAP30 fingerprint sensor. uses Live Fingerprint Detection (LFD) technology, has 500 PPI resolution, and is FBI PIV/FIPS201 and FBI Mobile ID FAP20/FAP30 Certified.
- Product Details
- {{item.text}}
Quick Details
-
Operating System:
-
ANDROID 10
-
Type:
-
Tablet PC
-
Weight:
-
900g
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RYDTECO
-
Model Number:
-
RG80
-
Product name:
-
Android Table PC
-
Camera:
-
Front 5.0MP Rear 13.0MP
-
Battery:
-
10,000mAh Li-ion Rechargeable and Removable Battery
-
Memory:
-
3GB+32GB; 4GB+64GB (Optional)
-
Barcode scanner:
-
1D/2D Baecode scanner
-
Size:
-
286*160*30mm
-
Wifi:
-
WiFi 802.11 b/g/n/ac
-
NFC:
-
NFC 13.56MHz 14443A/14443B/15693
-
Touch Panel:
-
5 point G+FF capacitive touch screen
-
IC CARD READER:
-
Support ISO 7816
Quick Details
-
Screen Size:
-
8"
-
Memory Capacity:
-
3GB+32GB 4GB+64GB(optional)
-
Display resolution:
-
1280x800
-
Operating System:
-
ANDROID 10
-
Type:
-
Tablet PC
-
Weight:
-
900g
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RYDTECO
-
Model Number:
-
RG80
-
Product name:
-
Android Table PC
-
Camera:
-
Front 5.0MP Rear 13.0MP
-
Battery:
-
10,000mAh Li-ion Rechargeable and Removable Battery
-
Memory:
-
3GB+32GB; 4GB+64GB (Optional)
-
Barcode scanner:
-
1D/2D Baecode scanner
-
Size:
-
286*160*30mm
-
Wifi:
-
WiFi 802.11 b/g/n/ac
-
NFC:
-
NFC 13.56MHz 14443A/14443B/15693
-
Touch Panel:
-
5 point G+FF capacitive touch screen
-
IC CARD READER:
-
Support ISO 7816
IP65 Rugged Biometric Tablet 8 Inch IPS Touch Display Android 10.0 LFD (Live Finger Detection) Technology
|
ID and Mechanical Features
|
|
|
||
|
Product Type
|
Rugged Biometric Tablet
|
RG80-S2
|
||
|
IP Level
|
IP65
|
|
||
|
Size
|
263mm*160mm*30mm
|
|
||
|
Weight
|
900g
|
|
||
|
Side Key
|
Volume Key
|
Volume +/ -
|
||
|
|
Power Key
|
Yes
|
||
|
General Characteristic
|
|
|
||
|
Platform
|
MTK6761
|
Quad-Core ARM Cortex-A53 2.0GHz Quad-core
|
||
|
Memory
|
2GB+16GB
|
3GB+32GB; 4GB+64GB Optional
|
||
|
Extend Memory
|
T-flash Card
|
256G extend
|
||
|
OS
|
Android10
|
Passed Google certificated（GMS)
|
||
|
Google GMS
|
Yes
|
|
||
|
FOTA
|
Yes
|
|
||
|
System&Band |
GSM/GPRS/EDGE Bands
|
850/900/1800/1900
|
||
|
|
3G Bands
|
WCDMA：B1/B2/B5/B8
|
||
|
|
FDD_LTE Bands
|
B1/B3/B7/B8/B20（Compatible with：B5/B28）
|
||
|
|
TDD_LTE Bands
|
Compatible with：B38/39/40/41
|
||
|
SIM Card
|
Dual NANO SIM
|
|
||
|
Multimedia Features
|
|
|
||
|
LCD
|
8.0’’IPS
|
16M Color
|
||
|
Display Resolution
|
800*1280
|
G+FF
|
||
|
TP
|
Capacitive ,Five Points
|
TP Material :Asahi glass
|
||
|
Camera
|
Rear Camera
|
13M AF (Compatible with：8M AF）
|
||
|
|
Front Camera
|
5M FF（Compatible with：8MFF）
|
||
|
Flash LED
|
Yes
|
|
||
|
Color LED
|
Yes
|
|
||
|
Torch
|
Yes (Share Flash LED)
|
|
||
|
Speaker
|
Yes
|
|
||
|
Receiver
|
Yes
|
|
||
|
MIC
|
Yes
|
|
||
|
Power Management
|
|
|
||
|
Battery Capacity
|
3.7V,10000mAh
|
3.7V,5000mAh, 7500mAh optional
|
||
|
Clock backup battery
|
Yes
|
|
||
|
Charge |
USB Type-c
|
5V,2A
|
||
|
|
DC
|
12V,1.5A
|
||
|
|
Solar Charging
|
Yes
|
||
|
Industry Features
|
|
|
||
|
Fingerprint Scanner
(4 x options)
|
Yes
|
Optical FAP20 Fingerprint Sensor FBI PIV/ FIPS201 and FBI Mobile ID FAP20 Certified 500 PPI Resolution Live Fingerprint Detection
(LFD) Technology Captures wet and dry fingerprints |
||
|
Fingerprint Scanner
|
Suprema BM-Slim3
Suprema BM-Slim2
Futronic FS81
IB Columbo
|
|
||
|
Contactless Card Reader
|
Yes
|
13.56MHz NFC, ISO14443 Type A/B, Mifare, ISO18092 compliant
|
||
|
Smart Card Reader
|
Yes
|
Supports ISO 7816 – Class A, B and C
|
||
|
|
Yes
|
Laser 1D & 2D Barcode Scanner Proprietary CMOS sensor with global shutter 844 x 640 pixel resolution with Decode Capability High
performance scan rate 100 scans/sec with Decode. |
||
|
PSAM Card
|
Yes
|
Optional
|
||
|
IRIS Recognition
|
Yes
|
Optional
|
||
|
|
|
|
||
|
Others Features
|
|
|
||
|
Vibrate
|
Yes
|
Prepared
|
||
|
GPS/AGPS
|
Yes
|
GPS, Galileo, GLONAS and Beidou
|
||
|
Wifi
|
Yes
|
802.11a/b/g/n/ac
|
||
|
NFC (Contactless Card Reader)
|
Yes
|
Optional
|
||
|
|
Proximity sensor
|
Yes
|
||
|
|
Light-Sensor
|
Yes
|
||
|
|
Gyro-Sensor
|
No
|
||
|
|
Acceleration sensor
|
Yes
|
||
|
|
Gesture Sensor
|
No
|
||
|
|
Magnetic-Sensor
|
Yes
|
||
|
External Ports
|
USB A
|
USB 2.0 OTG,can connect OTG memory and other device. Max output 1A.
|
||
|
|
USB Type-C (support OTG)
|
Yes
|
||
|
|
DC Jack
|
Yes
|
||
|
|
RJ45 Lan Port
|
Yes
|
||
|
|
IC card Reader
|
Yes
|
||
|
|
3.5mm Audio Jack
|
Yes
|
||
|
Accessaries
|
|
|
||
|
Power Adapter
|
Input:100-240Vac ;Output:12Vdc 1.5A, SMPS Adaptor
|
|
||
|
Type-C cable
|
0.6m 3ft Nylon Braided 2.1A 3A Fast Charging Data USB 2.0 to 3.1 Usb C Type C Cable
|
|
||
|
hand strap
|
Wide and strong hand straps design, can withstand 25 kg tension, it is very easy to use in work
|
|
||
|
Screwdriver
|
(Optional) Promotion high quality magnetic screwdriver
|
|
||
|
Hard Shell Carry Case
|
(Optional) Durable, portable, dustproof and water resistant. With hand carry strap, shoulder strap. Dimensions: Dimensions: 340mm x 304mm x 154mm
|
|
||
|
|
|
|
||
IP65 Rugged Biometric Tablet 8 Inch IPS Touch Display Android 10.0 LFD (Live Finger Detection) Technology
IP65
Rugged Biometric Tablet
featuring a biometric fingerprint scanner that offers accurate identification. Being the most stable biometric characteristics,fingerprint sensor uses Live Fingerprint Detection (LFD) technology, has 500 PPI resolution, and is FBI PIV/FIPS201 and FBI Mobile ID FAP20/FAP30 Certified. fingerprint authentication can be used to prevent unauthorized physical access to factory, warehouse, office, laboratory, meanwhile, it can be applied to KYC usage, examinee verification, Voter valid certification, etc.this device is robust and easy to use. Including single fingerprint sensor, facial recognition, it is able to withstand incredible environmental impacts.
Q: Can I have a sample order?
A: Yes;
Q: What is your general lead time?
A: 3-5 days for sample orders, 21-30 days for mass production e.g. 500pcs, 1,000pcs, 3,000pcs, etc.;
Q: What is your MOQ?
A: 2 pieces;
Q: What are your warranty terms?
A: 1 year warranty upon the receipt of the goods (2 years warranty for big orders);
Q: What are your payment terms?
A: Sample orders - advance payment before shipment;
Batch orders - 40% downpayment before production, balance before shipment;
Q: Do you accept OEM order?
A: Yes, MOQ for OEM is 500pcs.
Q:How are your after-sales service?
A: Yes;
Q: What is your general lead time?
A: 3-5 days for sample orders, 21-30 days for mass production e.g. 500pcs, 1,000pcs, 3,000pcs, etc.;
Q: What is your MOQ?
A: 2 pieces;
Q: What are your warranty terms?
A: 1 year warranty upon the receipt of the goods (2 years warranty for big orders);
Q: What are your payment terms?
A: Sample orders - advance payment before shipment;
Batch orders - 40% downpayment before production, balance before shipment;
Q: Do you accept OEM order?
A: Yes, MOQ for OEM is 500pcs.
Q: What are the certificates for your products?
A: Our certificates have CE, FCC, ISO,ROHS and other required certificates.
Q:How are your after-sales service?
A:
We have 24 hours online After-sales Team, any questions about operation or installation or other questions for biometrics products , you can contact us anytime.
Q: What is the general delivery of your product?
A: Our samples have stocks, if you are in bulk order, then it will be based on your specific number to set
Q: What is your production capacity?
A: Our production capacity is 2,000 units a week.
