Quick Details
-
Voltage:
-
220/380v/415V
-
Weight:
-
65 kg
-
Product name:
-
Vibrating Table
-
Material:
-
Carbon Steel
-
Model:
-
ZDP-500(3000)*500(3000)
-
Power Source:
-
3/50/380(Ph/Hz/v)
-
Vibrating Frequency:
-
48Hz
-
Motor (sets):
-
2 Sets
-
Speed:
-
3000-3600rpm
-
Application:
-
Construction Industry
-
Spring type:
-
Composite Springs
-
Usage:
-
Buildings
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhongchengyou
-
Frequency:
-
50hz/60hz
-
Voltage:
-
220/380v/415V
-
Weight:
-
65 kg
-
Product name:
-
Vibrating Table
-
Material:
-
Carbon Steel
-
Model:
-
ZDP-500(3000)*500(3000)
-
Power Source:
-
3/50/380(Ph/Hz/v)
-
Vibrating Frequency:
-
48Hz
-
Motor (sets):
-
2 Sets
-
Speed:
-
3000-3600rpm
-
Application:
-
Construction Industry
-
Spring type:
-
Composite Springs
-
Usage:
-
Buildings

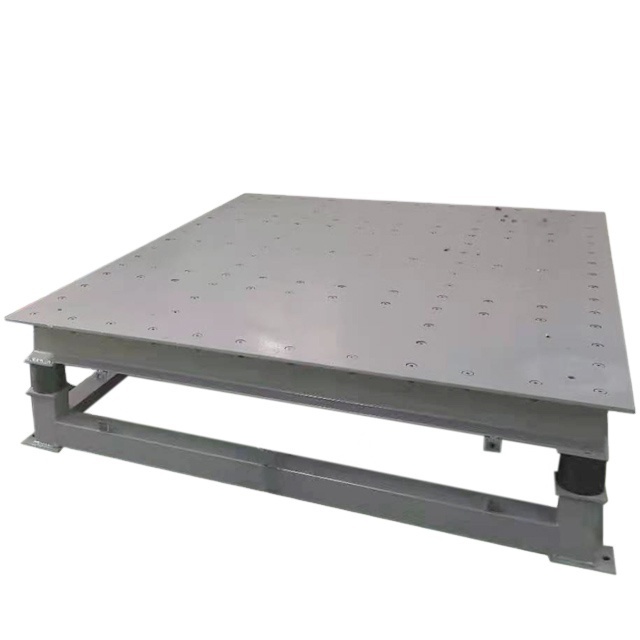

vibratory concrete paver vibrating table
Description:
vibrating table is mainly used for material consolidation , air and gaps reduction in material process , make it tighter ,solider . This concrete vibrator consists of table-board , vibrating motors , damping springs and basement ,
vibrating table applies to industries : compact bulk materials ,reduce air bubbles and then put more materials into a smaller containler , help reduce cost .
Working principle:
Concrete mould vibrator table is mainly composed of four parts.They are bracket, countertops, vibration, shock absorption institutions. Rubber springs and 2~8 vibrating motors are used together to vibrate materials from all directions (up and down, left and right, front and rear),leading to the effect of two or three-dimensional shake)
Technical parameters
|
Model |
Aera(square meter) |
powder(kw) |
Amplitude(mm) |
Weight(kg) |
|
ZDP-500×500 |
0.25 |
2×0.25 |
2-5 |
300 |
|
ZDP-1000×1000 |
1 |
2×0.4 |
2-5 |
600 |
|
ZDP-1200×1200 |
1.44 |
2×3 |
2-5 |
1200 |
|
ZDP-1500×1500 |
2.25 |
2×3 |
2-5 |
2000 |
|
ZDP-3000×3000 |
9 |
6×1.5 |
2-5 |
3000 |
Advantages
1,The vibration table is widely used in metallurgy, mold, food , chemical , building materials and other industries .
2,Vibration platform used in the production process to the granules, powder material shift from bulk to block, shape and form .
3. Used for compaction, detachment and aeration of bulk materials.
4.Used for testing of welded joints in automobile industry and delicate joints in
E lectronic industry.
5. Used for effective packing of fluffy and difficult to handle powder in chemical
and pharmaceutical industry.
6. Used for proper flow of powder in dies and moulds to get perfect mould parts .
How to confirm the model and price:
1. If you have ever used the vibration table,please give me the model number directly.
2. If you have not used the motor,Please confirm the questions as below:Power,area of the table,what material.Max load.Voltages and hertz.
