Quick Details
-
Model Number:
-
large angle
-
Item:
-
conveyor belt with side wall
-
Standard:
-
DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173
-
Belt core:
-
CC/NN/EP/CP
-
Cleat type:
-
TC/TCS/T/TS/C
-
Top cover thickness:
-
3 ~ 6mm
-
Ply:
-
2~10 plies
-
Bottom cover thickkess:
-
1.5 ~ 4.5 mm
-
Belt width:
-
300~1400mm
-
Tensile strength:
-
9~25Mpa
-
Structure:
-
Conveyor system
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
huayun
-
Model Number:
-
large angle
-
Item:
-
conveyor belt with side wall
-
Standard:
-
DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173
-
Belt core:
-
CC/NN/EP/CP
-
Cleat type:
-
TC/TCS/T/TS/C
-
Top cover thickness:
-
3 ~ 6mm
-
Ply:
-
2~10 plies
-
Bottom cover thickkess:
-
1.5 ~ 4.5 mm
-
Belt width:
-
300~1400mm
-
Tensile strength:
-
9~25Mpa
-
Structure:
-
Conveyor system
800mm belt width ep conveyor belt with side wall
can transit smoothly from horizontal to incline or even vertical

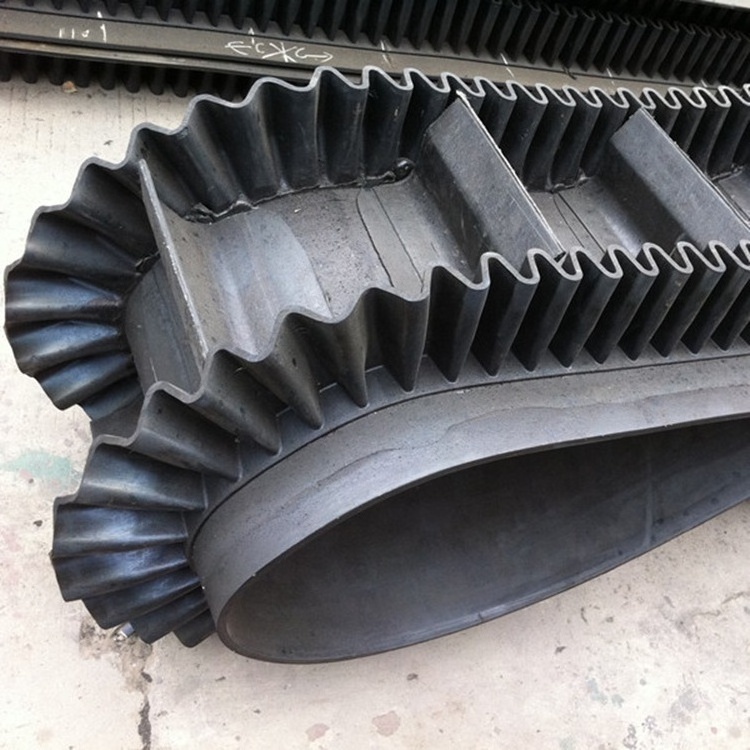

1. Detail Show of conveyor belt with side wall
Feature
1) increases the transmission angle (30 to 90 degrees);
2) small footprint, low investment;
3) throughput, a high degree of upgrading higher;
4) to tilt from horizontal (or vertical) to a smooth transition;
5) low consumption, long service life
Standard
DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173
2. General process of conveyor belt with side wall
Base belt width: 300/40/500/650/800/1000/1200/1400mm
Sidewall height: 40/60/80/100/120/160/200/240/300/400mm
Cleat type: TC
Cleat height: 35/55/75/90/110/140/180/220/260/360mm
3. Quality control for corrugated sidewall cleated conveyor belt
1) test equipment
2) ISO9001:2008
4. Well packed corrugated sidewall cleated conveyor belt and kinds of rubber conveyor belts you can choose
Packed in pvc waterproof cloth or as require.
Shipment within 7-15 working days according to the quantity.
the conveyor belt we can supply:
steel cord conveyor belt, heat resistant conveyor belt, sidewall endless conveyor belt, corrugated sidewall conveyor belt, chevron v conveyor belt, fire resistant conveyor belt, ep conveyor belt, nylon conveyor belt, etc.
5. About us - Baoding Huayun Conveyor Machinery Co., Ltd.
fi ve reasons to choose us:
1. the manufacturer of conveyor belts,conveyor idler rollers, conveyor pulleys, conveyor brackets;
2. with the most advanced production equipment;
3. the exquist craft with CEMA DIN JIS standard;
4. with TUV, ISO9001:2008 and Safety of Approval for Mining Products;
5. high quality material purchasing channel and excellent after-sale service.
Know more information abou the conveyor belt with side wall , pls contact us via the following ways:
