Quick Details
-
Model Number:
-
24030603
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FX PCB
-
Copper Thickness:
-
0.5-6oz
-
Min. Hole Size:
-
0.15mm
-
Min. Line Width:
-
0.05mm
-
Min. Line Spacing:
-
0.05mm
-
Surface Finishing:
-
ENIG,HASL,OSP,ENEPIG,Flash Gold
-
Maximum Size:
-
600mm x 1500mm
-
Thickness Tolerance(t≥0.8mm):
-
± 8%
-
Board Outline Tolerance:
-
± 0.10mm
-
Layer Counts:
-
1-24L
-
Thickness Tolerance(t<0.8mm):
-
± 10%
-
Aspect Ratio:
-
16 : 1
-
Solder Mask Type:
-
LPI
-
MOQ:
-
1pcs
-
Application:
-
Consumer Electronics
-
Insulation Layer Thickness:
-
0.075mm-5.00mm
Quick Details
-
Base Material:
-
FR-4, Kingboard, Nanya, Shengyi, Rogers
-
Board Thickness:
-
0.2-8mm to 0.1mm-8mm
-
Board Size:
-
customized
-
Model Number:
-
24030603
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FX PCB
-
Copper Thickness:
-
0.5-6oz
-
Min. Hole Size:
-
0.15mm
-
Min. Line Width:
-
0.05mm
-
Min. Line Spacing:
-
0.05mm
-
Surface Finishing:
-
ENIG,HASL,OSP,ENEPIG,Flash Gold
-
Maximum Size:
-
600mm x 1500mm
-
Thickness Tolerance(t≥0.8mm):
-
± 8%
-
Board Outline Tolerance:
-
± 0.10mm
-
Layer Counts:
-
1-24L
-
Thickness Tolerance(t<0.8mm):
-
± 10%
-
Aspect Ratio:
-
16 : 1
-
Solder Mask Type:
-
LPI
-
MOQ:
-
1pcs
-
Application:
-
Consumer Electronics
-
Insulation Layer Thickness:
-
0.075mm-5.00mm

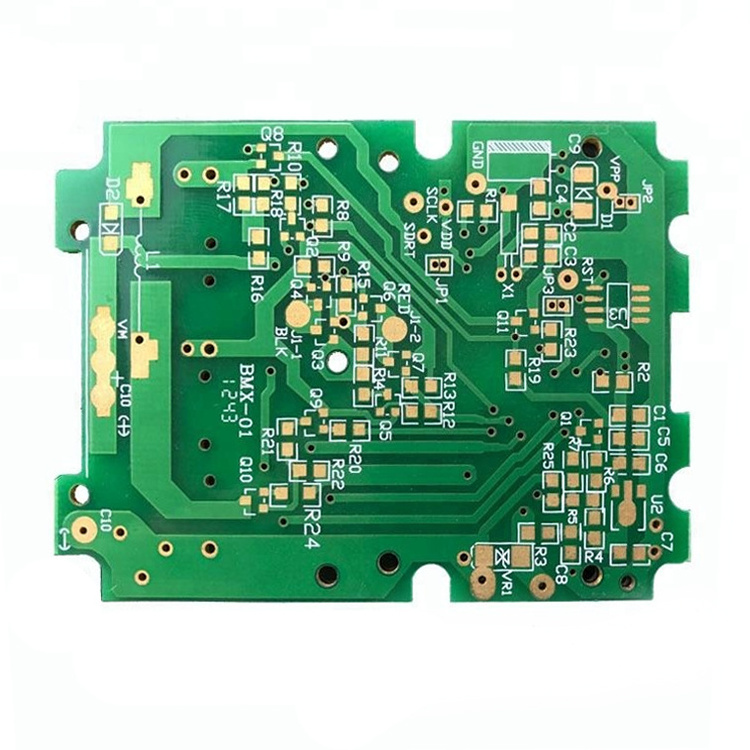

Custom Electronic Circuit Board FR4 PCB Board For Mp3 Player And Mp4 Player PCB PCBA Rigid PCB
Product Description
FX PCB Rigid PCB advantage is that we can supply all your rigid PCB in a short time with lower costs. There are different materials for your choice to meet specific design requirements, and our team will give you suggestions if your design has any potential faults or risks. Meanwhile, we can suggest improvements on the usage ratio to lower costs. Please send us your inquiry, and we will reply to you soon.
Do you need rigid printed circuit board prototypes or mass production? Assembled or unassembled circuit boards from 1 piece? Then you have come to the right place, We offer you inexpensive and high-quality PCB fabrication services.
It consists of an FR4 stiffener which may be very beneficial for the delivered quantity of stiffness and pressure. I’ll attempt to cover the whole lot associated with rigid PCB so that you can get a few precious facts and evaluate it with different PCBs to be had inside the market.
Technical Capability
|
Layer Counts
|
1-24L
|
|
Material
|
FR-4, Kingboard, Nanya, Shengyi, Rogers, Isola, ITEQ, Ventec, Arlon
|
|
Maximum Size
|
600mm x 1500mm
|
|
Board Outline Tolerance
|
± 0.10mm
|
|
Board Thickness
|
0.2-8mm to 0.1mm-8mm
|
|
Thickness Tolerance(t≥0.8mm)
|
± 8%
|
|
Thickness Tolerance(t<0.8mm)
|
± 10%
|
|
Insulation Layer Thickness
|
0.075mm-5.00mm
|
|
Minimum Line
|
0.05mm
|
|
Minimum Space
|
0.05mm
|
|
Out Layer Copper Thickness
|
18um-350mm
|
|
Inner Layer Copper Thickness
|
17um-210mm
|
|
Drilling Hole(Mechanical)
|
0.15mm-6.35mm
|
|
Finish Hole(Mechanical)
|
0.10mm-6.30mm
|
|
Diameter Tolerance(Mechanical)
|
0.05mm
|
|
Registration(Mechanical)
|
0.075mm
|
|
Aspect Ratio
|
16 : 1
|
|
Solder Mask Type
|
LPI
|
|
SMT Mini. Solder Mask Width
|
0.075mm
|
|
Mini. Solder Mask Clearance
|
0.05mm
|
Packing & Delivery
Packing Details
Inner packing :Vacuum Package
Inner packing :Vacuum Package
Outer packing:Standard Carton
