Quick Details
-
Brand Name:
-
Yinxing
-
Voltage:
-
220V/380V/415V/480V
-
Dimension(L*W*H):
-
1200*1200*800
-
Weight:
-
300 KG
-
Product name:
-
Circular vibrating screen
-
Advantage:
-
Energy conservation
-
Material:
-
SU304 or Q235A
-
Keyword:
-
Rotary Vibrating Screen Machine
-
Motor:
-
Vibrating machine
-
Layer(s):
-
1-5 Layers
-
quality:
-
Passed ISO9001:2008
-
Function:
-
Screening\separation\sorting\sieving
-
Capacity:
-
100Kg-10Tons/hour
-
Screen size:
-
4-0.045mm
Quick Details
-
Type:
-
Circular
-
Marketing Type:
-
new type
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yinxing
-
Voltage:
-
220V/380V/415V/480V
-
Dimension(L*W*H):
-
1200*1200*800
-
Weight:
-
300 KG
-
Product name:
-
Circular vibrating screen
-
Advantage:
-
Energy conservation
-
Material:
-
SU304 or Q235A
-
Keyword:
-
Rotary Vibrating Screen Machine
-
Motor:
-
Vibrating machine
-
Layer(s):
-
1-5 Layers
-
quality:
-
Passed ISO9001:2008
-
Function:
-
Screening\separation\sorting\sieving
-
Capacity:
-
100Kg-10Tons/hour
-
Screen size:
-
4-0.045mm
|
Model
|
Effective Screening Diameter
|
Effective Screening Area
|
Mesh of Screen
|
Motor Power
|
Layers
|
|
YX-400
|
400mm
|
0.11㎡
|
2-500mesh
|
--
|
1-5
|
|
YX-600
|
600mm
|
0.25㎡
|
2-500mesh
|
0.75kw
|
1-5
|
|
YX-800
|
800mm
|
0.46㎡
|
2-500mesh
|
1.1kw
|
1-5
|
|
YX-1000
|
1000mm
|
0.68㎡
|
2-500mesh
|
1.5kw
|
1-5
|
|
YX-1200
|
1200mm
|
1.01㎡
|
2-500mesh
|
1.5kw
|
1-5
|
|
YX-1500
|
1500mm
|
1.61㎡
|
2-500mesh
|
2.2kw
|
1-5
|
Products Description

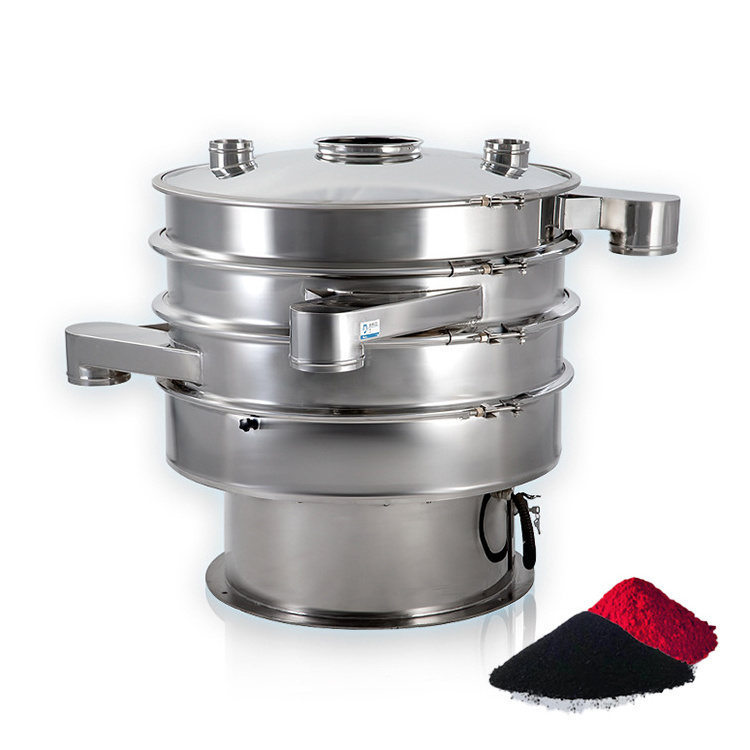

Rotary vibrating screen
is a high-precision fine powder screening machinery, its low noise, high efficiency, quick net change only 3-5 minutes, fully closed structure, suitable for grain, powder, mucus and other materials screening filtration. As a manufacturer of rotary vibrating screen, we have tracked the needs of customers for a long time, and designed three dimensional rotary vibrating screen to meet the needs of different customers.
Product Features
★
High efficiency, can screen powder and slime.
★
The mesh is not block and the powder is not fly. It can be sieved to 500 mesh or 0.028mm.
★
Unique grid design, the screen is durable and easy to replace.
★
Small size, takes up no space and is easy to move.
★
Impurities are automatically discharged and work continuously.
