Specification
|
|
|
|
Name
|

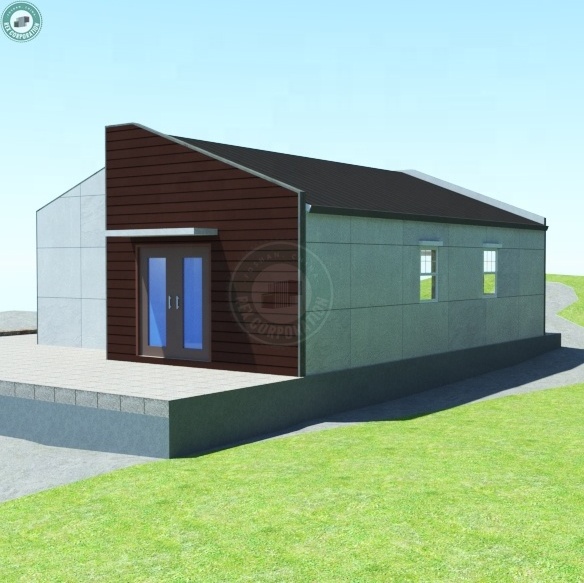

Prefab SIP Home
|
|
|
Size
|
10.4 x 7.9 x 3m(H)
|
|
|
Shipment
|
1 set/40GP
|
|
|
Structure
|
Q235B HS Galvanised Steel
|
|
|
Wall
|
75mm EPS/Concrete Wall Panel
|
|
|
Wall Cladding
|
Cement Fiber Wall Cladding
|
|
|
Roof
|
75mm Rockwool Sandwich Roof Panel w/Fascia Board
|
|
|
Ceiling
|
Bamboo Composite Ceiling & Cornices
|
|
|
Floor
|
3.5mm Vinyl Wood Flooring & Skirting , 600 x 600mm Ceramic Tile (For Bathroom)
|
|
|
Window
|
5+9+5 Double glazing Aluminum Sliding Window , 1.4mm Dark Gray Aluminium Frame
|
|
|
Door
|
5+9+5 Double Glaze Sliding Door , High Grade Steel Door
|
|
|
Stair
|
High Grade Interior Steel Stair w/Wood Stepboard and Steel Railing
|
|
|
Kitchen
|
Laminated Melamine Kitchen Cabinet w/ Quartz Stone Table Top and Stainless Steel Sink
|
|
|
Electric
|
LED Lights , Switches & Sockets , 2P 63A Distribution Box
|
|
|
Plumbing
|
UPVC/PPR/PB/PERT
|
|
|
Color
|
Concrete, Coffee Color
|
|
|
Technical Data Sheet
|
|
|
|
Wind Load
|
Up to Grade 12 , 200kph
|
|
|
Seismic Load
|
Up to Grade 10
|
|
|
Snow Load
|
0.6KN/㎡
|
|
|
Live Load
|
0.6KN/㎡
|
|
|
Floor Load
|
145KG/㎡
|
|
|
Wall Impact Load
|
0.6KN/㎡
|
|
|
Wall Heat Transfer Coefficient
|
0.35KCAL/㎡
|
|
|
Sound Insolation
|
>45Db
|
|
