Quick Details
-
Model Number:
-
TZ-8104
-
Protection Level:
-
ip65
-
Operating Temperature:
-
-10~+70C (with no icing)
-
Max. Current:
-
10A
-
Item Name:
-

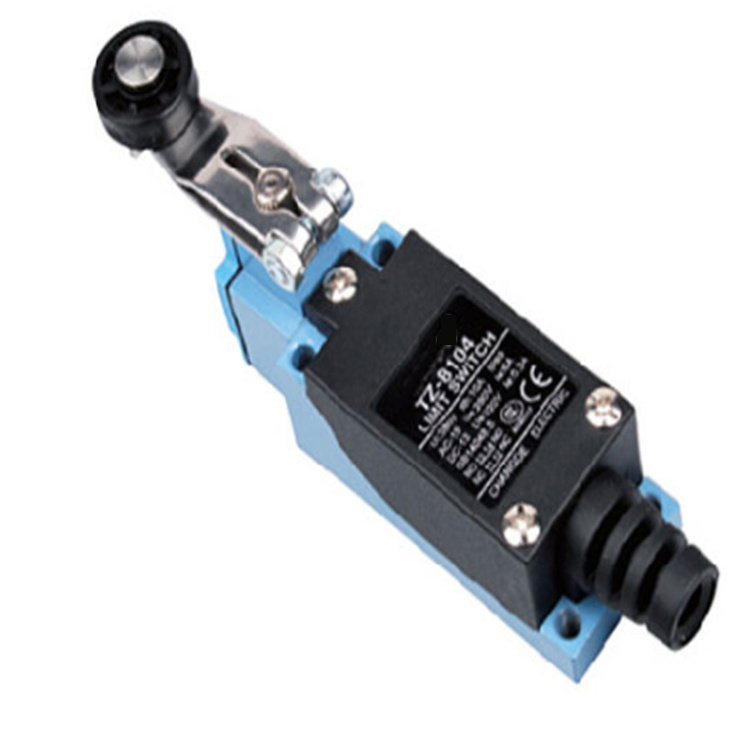

ME/TZ Limit Switch
-
Contact Form:
-
NO, NC
-
Certificate:
-
TUV, ISO9001, CCC, CE
-
Feature:
-
ouble circuit, high rigid construction, compact
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ODM/CNTOPSUN
-
Model Number:
-
TZ-8104
-
Protection Level:
-
ip65
-
Operating Temperature:
-
-10~+70C (with no icing)
-
Max. Current:
-
10A
-
Item Name:
-
ME/TZ Limit Switch
-
Contact Form:
-
NO, NC
-
Certificate:
-
TUV, ISO9001, CCC, CE
-
Feature:
-
ouble circuit, high rigid construction, compact
-
Certification:
-
CE
Features
-Double circuit type of limit switch
-Highly rigid construction, consists of intensive plastic and aluminum cast (Head and -cover snugly fit in box)
-Small volume, water-proof and oil-proof construction
-Built-in basic switch with double spring mechanism, longer mechanical life
-Smooth operation with greater OT
-Easy-to-wire circuit opening design
-Wide varity of actuators, easily use
Ratings
|
|
Noninductive Load (A) |
Inductive Load (A) |
||||||
|
Resistance Load |
Lamp Load |
Inductive Load |
Motor Load |
|||||
|
NC |
NO |
NC |
NO |
NC |
NO |
NC |
NO |
|
|
125VAC
|
5
|
5
|
1.5
|
0.7
|
3
|
3
|
2
|
1
|
|
8VDC
|
5
|
5
|
3
|
3
|
5
|
4
|
3
|
3
|
|
Inrush Current |
N.C: below 24A, N.O: below 12A |
|||||||
Notes:
1.Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).
2.Lamp load has an inrush current of 10 times the steady-state current,while motor load has an inrush current of 6 times the steady-state current.
Characteristics
|
|
0.5mm-50cm/sec |
|
Operating frequency |
Mechanical: 120 operations/minute, Electrical: 30 operations/minute |
|
Contact resistance |
25mΩ max. (initial value) |
|
Insulation resistance |
100mΩ min. (at 500VDC) |
|
Dielectric strength |
1000VAC, 50/60HZ for 1 minute between terminals of the same polarity |
|
1500VAC, 50/60 HZ for 1 minute between currentcarrying
|
|
|
1500VAC, 50/60 HZ for 1 minute between each terminal and ground |
|
|
Vibration |
10-55HZ,1.5mm double amplitude |
|
Shock |
Mechanical durable: 1, 000m/Sec2 (about 100G'S)
|
|
Ambient temperature |
-5ºC to +65ºC |
|
Humidity |
<95% RH |
|
Life |
Mechanical: 10,000,000 operations above
|
|
Weight |
About 130 to 190g |
|
Degree of protection |
IP65 |
Operating characteristics
|
|
TZ-8104 |
TZ-8108 |
TZ-8107 |
TZ-8111 |
TZ-8112/8122 |
TZ-8166/8167/8168/8169 |
||
|
OF Max. |
750g |
750g |
750g |
900g |
900g |
150g |
||
|
RF Min. |
100g |
100g |
100g |
150g |
150g |
- |
||
|
PT Max. |
20º |
20 º |
20 º |
1.5mm |
1.5mm |
30mm |
||
|
OT Min. |
50 º |
50 º |
50 º |
4mm |
4mm |
- |
||
|
MD Max. |
12 º |
12 º |
12 º |
1mm |
1mm |
- |
||
|
OP |
- |
- |
- |
26 ± 0.8mm |
37 ± 0.8mm |
- |
||
|
