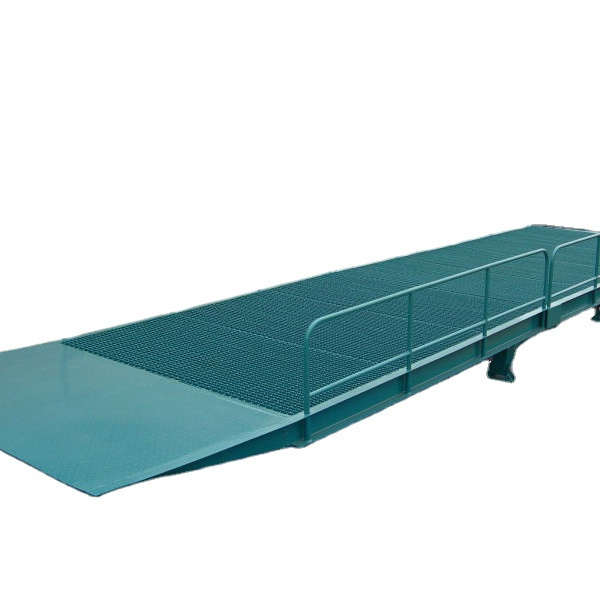

SAMCY Ramp High Quality Hydraulic Horse Trailer Tailgate Ramp

SAMCY Ramp Leveler Good Performance Better Price Hytger Truck Dock Ramps

Our factory SAMCY is specializing in manufacturing and exporting dock leveler,We have been in the industry 21 years since our setup in 1995.We are proud to offer you our full line dock leveler products:Stationary Dock Leveler,Mobile Hydraulic Dock leveler,Folding Dock Leveler.

The hydraulic dock leveler with hinge lip is a high capacity dock leveler,offing top-of-the line quality and safsty.The safety features of this dock leverler include return to dock position,velocity fuse free-fall protection and a Safe-T-Start maintenance support system.The hydraulic dock leveler is a kind of special mechanism which makes speed loading and unloading a reality.The height adjustment for the yard ramp become very easy with using of the hand hydraulic pump as dynamic and the extemal electric supply is unnecessary.

1)Hydraulic system

With handle pump,screw the return valve clockwise.Move the handle stick,to lift the ramp slowly.When the return valve is screwed counterclockwise,the hydraulic oil will go back,and the ramp will fall down on its own weight.

2)Heavy-duty moblie chakra

Moblie wheels adopt solid tyres,need not inflatable,durable,cooperate to brake pad,guarantee the operation safety.

3)Spin adjustable a leg

Prevend forklift into vehicle gravity concentrate on vehicle tail produce car overturned.Can fully guarantee the operation safety.The different height  to vehicles,suitbale for height adjustment of vehicles.

4)Manual hydraulic elebator system

Using artificial hydraulic power,don't must exteral electric power can be easily realized climbing height adjustment.

5)Fold-down transition board

The tail and transition plate and forklift folding hook can be convenient moblie cllimbing.

6)Hinge transition

Adjustable length of cable chains used to hook vehicles,make cllimbing and vehicles,even shift,always close together joint.

7)Bridge body structure

Bridge body strength,high bearing capacity bridge by high strength manganese steel body skeleton into truss add structure:compound high strength,the characterisitics of large carrying capacity.

8)Antiskid steel nets

Laying a layer above the bridge body slippery anilox steel plates,Mesh is distorted and hollow out,not only improved the reliability and work can prevent grease,dier and ice accumulation.

9)Safety crack-proof valve

In addition to the relief valve,in order to prevent the tubing rupture,occur because of the accident,hydraulic systems of decline set in pipeline rupture types,the valve,when oil will automatically lock
