Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RAZORTEK
-
Weight (KG):
-
1800 KG
-
Core Components:
-
Laser generator
-
Product name:
-
RZ1530FBC laser cutter
-
Power:
-
Raycus 2000w 3000w 6000w
-
Laser source:
-
Raycus Brand
-
Laser head:
-
Raytools manual cutting head
-
Guide rail:
-
Taiwan HIWIN linear guide rail 30m
-
Control System:
-
Cypcut 2000E EtherCAT Bus controllerwith wireless DSP
-
Electronic Components:
-
French Schneider
-
Transmission:
-
Rack and pinion transmissio
-
working voltage:
-
220 V/380V
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RAZORTEK
-
Weight (KG):
-
1800 KG
-
Core Components:
-
Laser generator
-
Product name:
-
RZ1530FBC laser cutter
-
Power:
-
Raycus 2000w 3000w 6000w
-
Laser source:
-
Raycus Brand
-
Laser head:
-
Raytools manual cutting head
-
Guide rail:
-
Taiwan HIWIN linear guide rail 30m
-
Control System:
-
Cypcut 2000E EtherCAT Bus controllerwith wireless DSP
-
Electronic Components:
-
French Schneider
-
Transmission:
-
Rack and pinion transmissio
-
working voltage:
-
220 V/380V

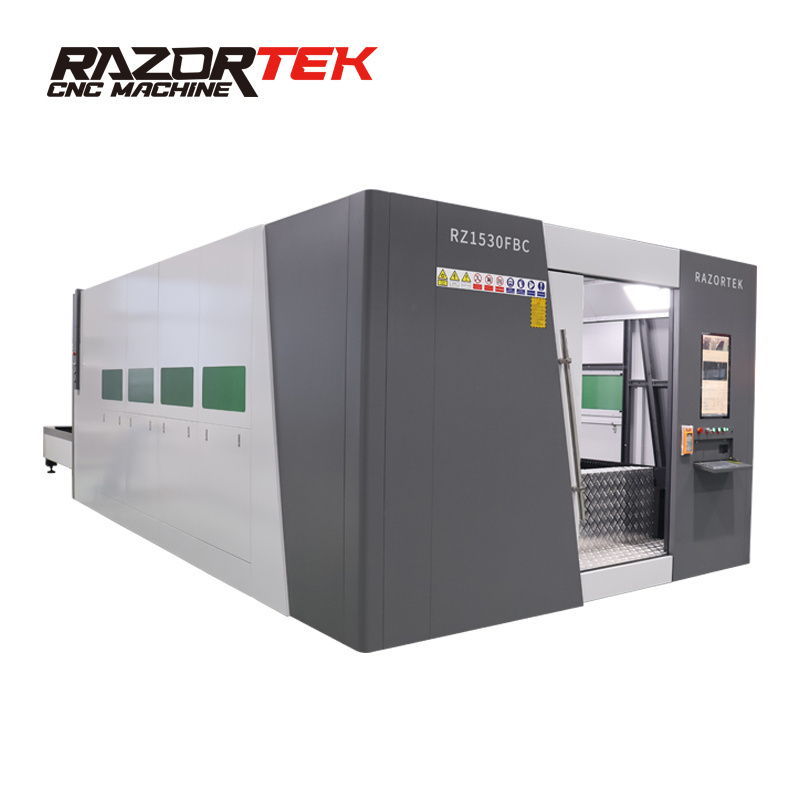

Machine overview
A high-power, fully enclosed cutting machine with double switching work surfaces, an industrial-specific cutting machine that combines safety and efficiency.
The following is the general structure of the machine.
Specification
|
Model
|
RZ1530FBC
|
|
Working area
|
1500*3000mm
|
|
Control System
|
Cypcut 2000E EtherCAT Bus controllerwith wireless DSP
|
|
Laser head
|
Raytools brand laser cutting head
|
|
Guide rail
|
Taiwan Hiwin guide rail 30mm
|
|
Transmission
|
Taiwan YYC Rack and pinion transmission, Y axis dual-drive
|
|
Electronic Components
|
French Schneider
|
|
Motor
|
Y 1.3kw*2/X 850W/Z 400W
|
|
Max Cutting Speed
|
35m/min
|
|
X axis max speed
|
65m/min
|
|
Y axis max speed
|
70m/min
|
|
Z axis max speed
|
30m/min
|
|
X axis max acceleration
|
1G
|
|
Y axis max acceleration
|
1G
|
|
Cooling Way
|
Water Cooling
|
|
Min line width
|
0.1mm
|
|
Power Requirements
|
380v/220V, 50/60Hz, 3phase
|
|
Continuous Working Time
|
24Hours
|
Detail photos
Raycus laser generator
Intelligent servo driver
Intelligent alarm laser head
Remote control
Industrial water chiller
PC with display
Dust cover and metal armor
Thickened saw table
Automatic dust door
Intelligent proportional valve
Rear platform surveillance camera
Automatic oil Lubrication
Application industry
Razortek CNC Fiber Laser Cutting Machines are widely used in electrical power, automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising signs, car decoration, sheet metal production, lighting hardware, display equipment, precision components, metal products and other industries.
Specialized fast speed cutting of a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, steel, various alloy plate, rare metal and other materials.
Specialized fast speed cutting of a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, steel, various alloy plate, rare metal and other materials.
