Quick Details
-
Span:
-
7.5 ~ 31.5m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
AICRANE
-
Weight (KG):
-
2000 kg
-
Product name:
-
Overhead bridge crane 5 ton 2 ton
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Loading capacity:
-
1 ~ 25ton or Customized
-
Lifting height:
-
6 ~ 30 m or Customized
-
Working duty:
-
A3-A4
-
Painting color:
-
Yellow,Blue,According to your demand
-
Working Temperature:
-
-25℃ ~ +40℃
-
Electrics brand:
-
Schneider/Siemens/Chint or Customized
-
Lifting mechanism:
-
Electric winch trolley,electric hoist
Quick Details
-
Max. Lifting Height:
-
30m
-
Rated Lifting Moment:
-
500KN
-
Max. Lifting Load:
-
50 ton
-
Span:
-
7.5 ~ 31.5m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
AICRANE
-
Weight (KG):
-
2000 kg
-
Product name:
-
Overhead bridge crane 5 ton 2 ton
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Loading capacity:
-
1 ~ 25ton or Customized
-
Lifting height:
-
6 ~ 30 m or Customized
-
Working duty:
-
A3-A4
-
Painting color:
-
Yellow,Blue,According to your demand
-
Working Temperature:
-
-25℃ ~ +40℃
-
Electrics brand:
-
Schneider/Siemens/Chint or Customized
-
Lifting mechanism:
-
Electric winch trolley,electric hoist
Specification
|
Technical Parameter of LD Single Girder Overhead Crane
|
|
|
|
|
|
|||||
|
Capacity
|
t
|
1
|
2
|
3
|
5
|
|||||
|
Span
|
S(m)
|
7.5~31.5
|
7.5~31.5
|
7.5~31.5
|
7.5~31.5
|
|||||
|
Lifting height
|
m
|
6~30
|
6~30
|
6~30
|
6~30
|
|||||
|
Lifting speed
|
m/min
|
8（0.8/8）
|
8（0.8/8）
|
8（0.8/8）
|
8（0.8/8）
|
|||||
|
Trolley speed
|
m/min
|
20(30)
|
20(30)
|
20(30)
|
20(30)
|
|||||
|
Crane speed
|
m/min
|
20(30)
|
20(30)
|
20(30)
|
20(30)
|
|||||
|
Work duty
|
|
A3~A4
|
A3~A4
|
A3~A4
|
A3~A4
|
|||||
|
Track type
|
|
P18
|
P18 P24
|
P24
|
P24
|
|||||
|
Capacity
|
t
|
10
|
16
|
20
|
25
|
|
Span
|
S(m)
|
7.5~31.5
|
7.5~31.5
|
7.5~31.5
|
7.5~25.5
|
|
Lifting height
|
m
|
9~30
|
9~30
|
9~30
|
9~30
|
|
Lifting speed
|
m/min
|
7（0.7/7）
|
3.5（0.35/3.5）
|
3.3（0.33/3.3）
|
3（0.3/3）
|
|
Trolley speed
|
m/min
|
20(30)
|
18
|
14
|
16
|
|
Crane speed
|
m/min
|
20(30)
|
20(30)
|
20(30)
|
20(30)
|
|
Work duty
|
|
A3~A4
|
A3~A4
|
A3~A4
|
A3~A4
|
|
Track type
|
|
P24 P30
|
P30 P38
|
P38 P43
|
P38 P43
|
Product Description

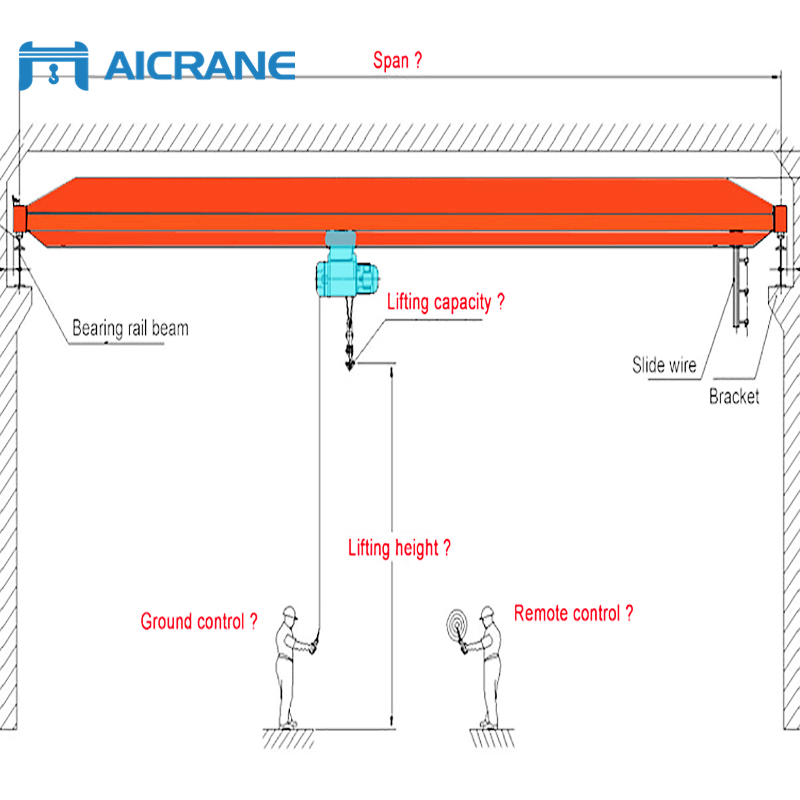

LD Single Girder Overhead Bridge Crane indoor lifting equipment for sale is a kind of light duty crane, and uses hoist as lifting tool, including hand chain hoist, electric chain hoist and electric wire rope hoist.
