Quick Details
-
Input:
-
8/12/16/20/24 HDMI inputs
-
Video Encoding:
-
MPEG-4 AVC/H.264, HEVC/H.265
-
Video Bit-rate:
-
1~15Mbps each channel
-
Video Rate Control:
-
CBR/VBR
-
Audio Encoding:
-
MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3
-
Dimension(WxLxH):
-
482mm x 410 mm x 44mm
-
Environment:
-
0~45℃(work);-20~80℃(Storage)
-
Frequency:
-
50/60Hz
-
Power Supply:
-
AC 110V± 10%;AC 220 ± 10%
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DAYTAI
-
Model Number:
-
DT-MCE-9542LU
-
Input:
-
8/12/16/20/24 HDMI inputs
-
Video Encoding:
-
MPEG-4 AVC/H.264, HEVC/H.265
-
Video Bit-rate:
-
1~15Mbps each channel
-
Video Rate Control:
-
CBR/VBR
-
Audio Encoding:
-
MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3
-
Dimension(WxLxH):
-
482mm x 410 mm x 44mm
-
Environment:
-
0~45℃(work);-20~80℃(Storage)
-
Frequency:
-
50/60Hz
-
Power Supply:
-
AC 110V± 10%;AC 220 ± 10%
Description

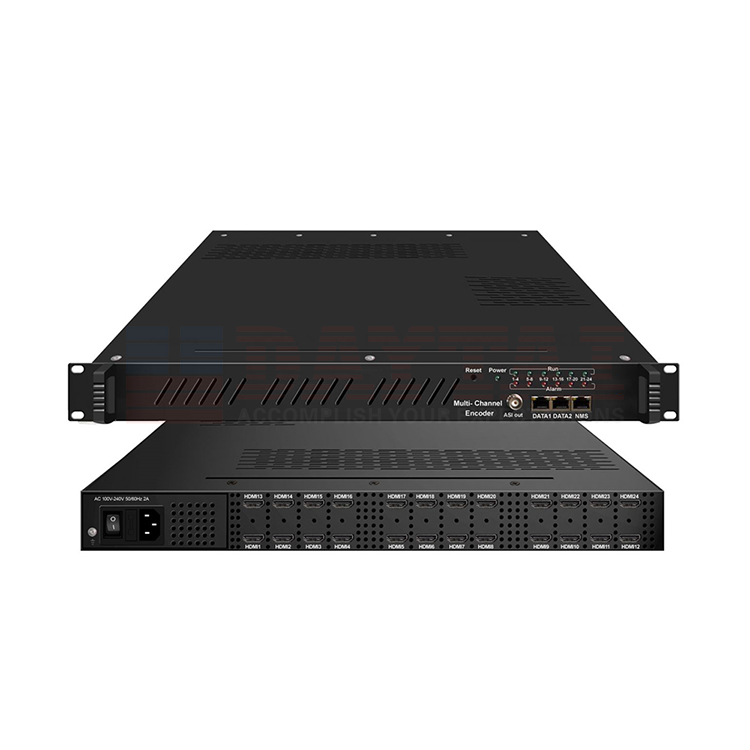

Digital TV Headend Multi-Channel HEVC/H.265 HD Encoder (DT-MCE-9542LU),DT-MCE-9542LU Multi-Channel encoder is a professional HD audio & video encoding and multiplexing device. It has 8/12/16/20/24 HDMI video input interfaces, and supports HEVC/H.265, MPEG-4 AVC/H.264 video encoding, with H.265’s high compression ratio, it helps to save bandwidth up to 75%. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.Order Information:DT-MCE-9542LU-8 OR DT-MCE-9542LU-12 OR DT-MCE-9542LU-16 OR DT-MCE-9542LU-20 OR DT-EMC-9542LU-24 is optional,Power requirements:AC 110V±10%,50/60Hz,AC 220 ± 10%,50/60Hz, Power Plug:European standard Plug or American standard Plug is optional.
Features
⊙Support “Null PKT Filter” function
⊙1 ASI output (optional) as copy of MPTS
⊙IP output over UDP and RTP/RTSP protocol
⊙Support PID Remapping/ PCR accurate adjusting
⊙Support QR code, LOGO, closed caption insertion.
⊙Control via web management, and easy updates via web
⊙HEVC/H.265, MPEG4 AVC/H.264 video encoding format
⊙Support B frame GOP, high video compression ratio and stable bitrate
⊙MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough audio encoding format.
⊙8/12/16 /20/24× HDMI input with 8/12/16 /20/24 SPTS and 1 MPTS output through Data 1 and Data 2
Features
⊙Support “Null PKT Filter” function
⊙1 ASI output (optional) as copy of MPTS
⊙IP output over UDP and RTP/RTSP protocol
⊙Support PID Remapping/ PCR accurate adjusting
⊙Support QR code, LOGO, closed caption insertion.
⊙Control via web management, and easy updates via web
⊙HEVC/H.265, MPEG4 AVC/H.264 video encoding format
⊙Support B frame GOP, high video compression ratio and stable bitrate
⊙MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough audio encoding format.
⊙8/12/16 /20/24× HDMI input with 8/12/16 /20/24 SPTS and 1 MPTS output through Data 1 and Data 2
Parameter
|
Item
|
Specification
|
|
|
||
|
Input
|
8/12/16/20/24 HDMI inputs
|
|
|
||
|
Video
|
Resolution
|
input
|
1920×1080_60P,1920×1080_50P,
1920×1080_59.94P,1920×1080_60i, 1920×1080_50i, 1920×1080_59.94i, 1280×720_60P, 1280×720_59.94P, 1280×720_50P |
||
|
|
|
Output
|
1920×1080_60P , 1920×1080_50P,
1920×1080_30P,1920×1080_25P, 1280×720_60P,1280×720_50P |
||
|
|
Encoding
|
|
MPEG-4 AVC/H.264, HEVC/H.265
|
||
|
|
Bit-rate
|
|
1~15Mbps for each channel
|
||
|
|
Rate Control
|
|
CBR/VBR
|
||
|
|
GOP Structure
|
|
IP, IBBP, IBBBP
|
||
|
Audio
|
Encoding
|
|
MPEG-1 Layer 2, LC-AAC, HE-AAC,
HE-AAC V2, AC3 Passthrough |
||
|
|
Sampling rate
|
|
48KHz
|
||
|
|
Bit-rate
|
|
48Kbps~384Kbps (MPEG-1 Layer 2 &
LC-AAC) 24 Kbps~128 Kbps (HE-AAC) 18 Kbps~56 Kbps (HE-AAC V2) |
||
|
Multiplexing
|
Maximum PID
Remapping |
|
180 output PIDs per channel
|
||
|
|
Function
|
|
PID remapping (automatically or manually)
|
||
|
|
|
|
Accurate PCR adjusting
|
||
|
Stream output
|
IP output thru Data1 (GE) and Data2 (FE) over UDP and RTP/RTSP protocol 8/12/16/20/24 SPTS and 1MPTS output (unicast/ multicast)
ASI output as copy of MPTS (optional) |
|
|
||
|
System
function |
Network management (WEB)
|
|
|
||
|
|
Chinese and English language
|
|
|
||
|
|
Ethernet software upgrade
|
|
|
||
|
Miscellaneous
|
Dimension (W×L×H)
|
|
482mm×410mm×44mm
|
||
|
|
Environment
|
|
0~45℃(work);-20~80℃(Storage)
|
||
|
|
Power requirements
|
|
AC 110V± 10%,50/60Hz,AC 220 ± 10%,50/60Hz
|
||
Technical Comparison
|
Item
|
DT-MCE-9542L
|
DT-MCE-9542LU
|
|
Chipset
|
Hisilicon (Old)
|
Hisilicon (New)
|
|
Video Format
|
MPEG-4 AVC/H.264
|
MPEG-4 AVC/H.264, HEVC/H.265
|
|
Video Bit Rate |
1~13Mbps each channel
(Bit rate is with a high fluctuation, suitable for cable system, not suitable for satellite uplink) |
1~15Mbps each channel (Bit rate is stable) |
|
GOP
|
IP…P (P Frame adjustment, without B
Frame ) |
IP, IBBP, IBBBP
|
|
Output Resolution
|
1920×1080_30P, 1920×1080_25P,
1280×720_30P, 1280×720_25P |
1920×1080_60P, 1920×1080_50P,
1920×1080_30P,1920×1080_25P, 1280×720_60P，1280×720_50P |
|
Audio Encode
|
MPEG-1 Layer 2
|
MPEG-1 Layer 2, LC-AAC, HE-AAC,HE-AAC V2, AC3 Passthrough
|
|
Audio Gain
|
0-255 Adjustable
|
N/A
|
|
IP output |
SPTS and1MPTS (for 8/12 channel)
SPTS or 1MPTS alternative (for 16/20/24 channel) |
SPTS and 1MPTS (for 8/12/16/20/24 channel)
|
Order Information
|
DAYTAI Model
|
Description
|
|
DT-MCE-9542LU-8
|
8 HDMI Inputs with 8 SPTS and 1 MPTS out
|
|
DT-MCE-9542LU-12
|
12 HDMI Inputswith 12 SPTS and 1 MPTS out
|
|
DT-MCE-9542LU-16
|
16 HDMI Inputs with 16 SPTS and 1 MPTS out
|
|
DT-MCE-9542LU-20
|
20 HDMI Inputs with 20 SPTS and 1 MPTS out
|
|
DT-MCE-9542LU-24
|
24 HDMI Inputs with 24 SPTS and 1 MPTS out
|
