tapioca processing and running good in hydraulic presser machine machine a presser le manioc cassava hydraulic press on sale

tapioca processing and running good in hydraulic presser machine machine a presser le manioc cassava hydraulic press on sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $5000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Type:: garri complete line

Voltage:: 220V

Power:: 3kw

Weight:: 320 KG

Dimension(L*W*H):: 1560*450*1340mm

After-sales Service Provided:: Engineers available to service machinery overseas

Color::: customized

Material:: stainless or carbon steel

Capacity:: 500kg/h

Application:: garri food

Advantage:: Saving energy and labour

Certification:: CE ISO

Quick Details

Marketing Type:: Hot Product 2022

Place of Origin:: Henan, China

Brand Name:: Doing

Type:: garri complete line

Voltage:: 220V

Power:: 3kw

Weight:: 320 KG

Dimension(L*W*H):: 1560*450*1340mm

After-sales Service Provided:: Engineers available to service machinery overseas

Color::: customized

Material:: stainless or carbon steel

Capacity:: 500kg/h

Application:: garri food

Advantage:: Saving energy and labour

Certification:: CE ISO

Product Description

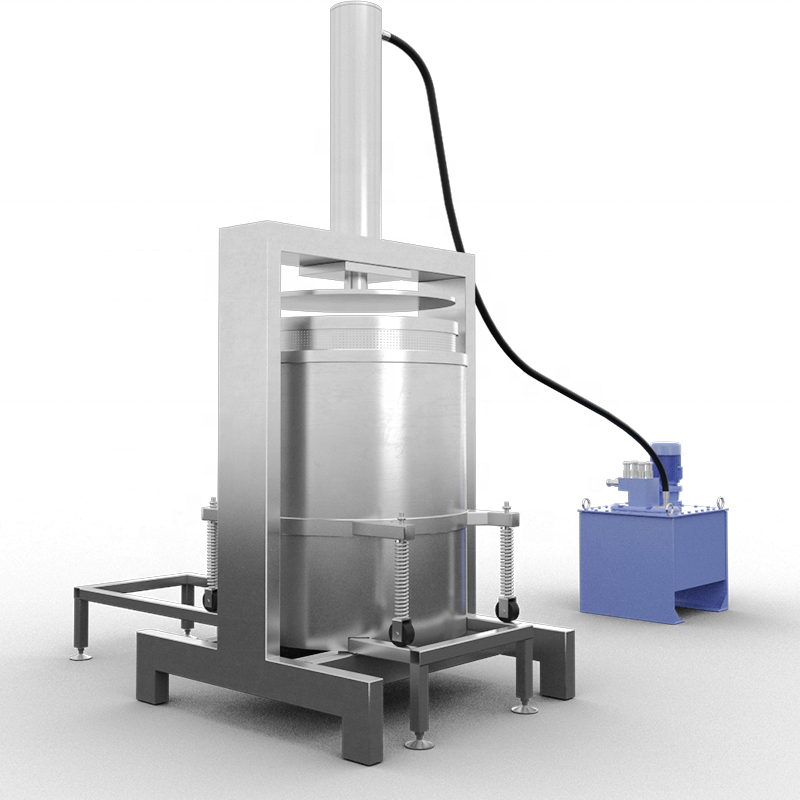

Garri dewatering hydraulic press machine is mainly composed of frame, cylinder, pressure oil pump, gland, motor, fuel tank and Press Barrel. After fermentation, Garri is directly put into the cylinder. Then, the hydraulic pumping station directly squeezes the crushed cassava to remove the moisture. The extruded water flows out of the pressure bucket and flows to the specified location.

Model	DY-500
Capacity(kg/h)	500-1000
Diameter(mm)	500
Power(kw)	3.0
Pressure(Mpa)	≤20
Material	SS304

Equipment features：

1. full stainless steel material;
2. different capacity for customer;
3. using hydraulic principle, the pressure could be 5-100T;
4. after the process, the garri water moisture is below 40% oercent, which is suitable for garri frying;

There are two types of hydraulic press machine,with a barrel or not.With a barrel it can collect the water which squeezed.

Customer can choose based on requirements.

Production Line Show

Model	Capacity
Small scale	1TPD
Medium scale	2~3TPD, 5TPD
Large scale	10TPD, 20TPD

Model	Capacity
Mini	5TPD
Small scale	10TPD
Medium scale	20TPD
Large scale	100TPD, 200TPD

Model	Capacity
Small scale	5~10TPD
Medium scale	20TPD, 50TPD
Large scale	100TPD, 200TPD

Main Equipment

Hot sale machines	Capacity
Cassava peeler	1tph, 2tph, 5tph
Cassava grater	1~2tph
Hydraulic press	250~300kg/h, 450~600kg/h, 700~900kg/h
Garri fryer	100kg/h
Vibration sieve	500kg/h, 800kg/h, 1t/h, 1.5t/h
Rasper	1~2t, 4t, 6~10t, 10-12t, 12-15t, 20t
Vacuum filter	0.5tph, 1tph, 2~3tph, 3~4tph, 5tph, 7tph
Flash dryer	0.5t, 1t, 1.5t, 2t, 3t, 5t, 8t, 10t, 12.5t, 15t
