Quick Details
-
Model Number:
-
FN-H720RT
-
style:
-

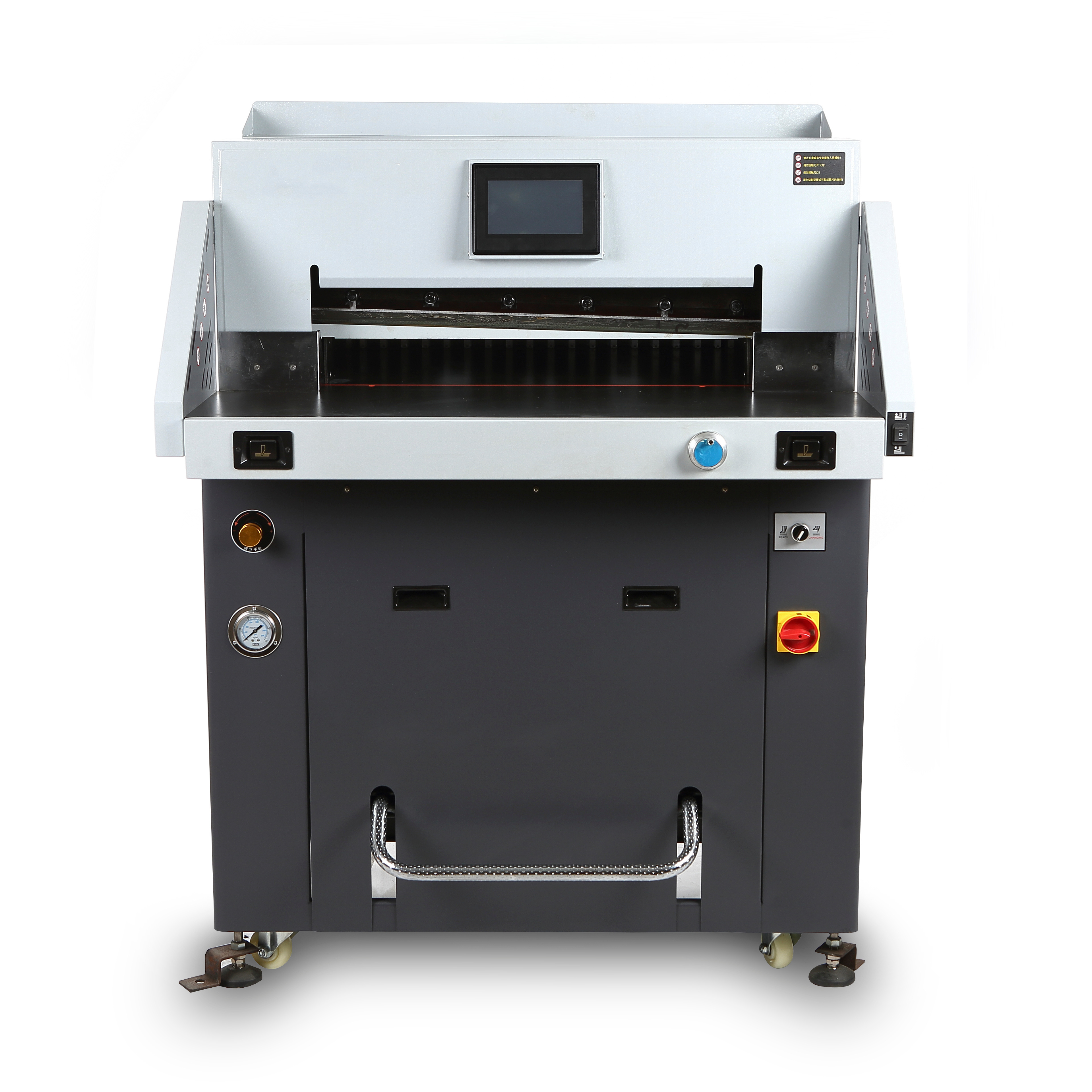

Hydraulic paper cutter
-
Product name:
-
FN-H720RT
-
Cutting size:
-
720mm
-
cutting thickness:
-
80mm
-
cutting precusion:
-
±0.2mm
-
display:
-
7.0"touch screen
-
clampling mode:
-
Hydraulic+mechanical pedal
-
Dimension:
-
1550*1200*1460mm
-
Cutting mode:
-
220v(110v) 50HZ(60HZ),2.75kw
-
Net weight:
-
450kgs
Quick Details
-
Power:
-
Electricity
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FRONT
-
Model Number:
-
FN-H720RT
-
style:
-
Hydraulic paper cutter
-
Product name:
-
FN-H720RT
-
Cutting size:
-
720mm
-
cutting thickness:
-
80mm
-
cutting precusion:
-
±0.2mm
-
display:
-
7.0"touch screen
-
clampling mode:
-
Hydraulic+mechanical pedal
-
Dimension:
-
1550*1200*1460mm
-
Cutting mode:
-
220v(110v) 50HZ(60HZ),2.75kw
-
Net weight:
-
450kgs
✳
The pricture and specifications are subject to change without prior notice.
Any question, please confirm with our sales manager.
Product Description
Paper cutting machines performance features:
1.Unique air ball table design, have ball air blowers in order to handle paper easily.
2. Widen and enlarge side table design to increase the platform space.
3. Cutting & pressing mode are hydraulic, with Taiwan imported motor;
4. 100groups x 96 steps program for repeat cuts
5. Top-suspended ball screw and nut for pushing paper. High speed of pushing and high precision of cutting.
6.Cast aluminum platform design. Thickened frame design to ensure quality
7. Electronic hand wheel for backgauge position with variable speed.
2. Widen and enlarge side table design to increase the platform space.
3. Cutting & pressing mode are hydraulic, with Taiwan imported motor;
4. 100groups x 96 steps program for repeat cuts
5. Top-suspended ball screw and nut for pushing paper. High speed of pushing and high precision of cutting.
6.Cast aluminum platform design. Thickened frame design to ensure quality
7. Electronic hand wheel for backgauge position with variable speed.
Product Paramenters
Model
|
FN-H720RT
|
Work
|
CNC mode
|
Max cutting length(mm)
|
720
|
Min cutting length(mm)
|
30
|
Cutting thickness(mm)
|
80
|
Cutting precision(mm)
|
0.2
|
Clamping mode
|
Hydraulic+mechanical pedal
|
Display
|
7 ' touch screen
|
Power
|
220V(110V)50HZ (60HZ) 2.75KW
|
Machine weight
|
450KG
|
Machine measurement(L*D*H)mm
|
1550*1200*1460
|
Machine Details
Our Factory
Zhejiang Daxiang Office Equipment Co., Ltd. is a comprehensive high-tech enterprise integrating R&D, production and sales. It has 20 years of history in the field of office equipment manufacturing in China. At present, the company has electric paper cutters, hydraulic paper cutters, glue binding machines, printers, corner rounding machines, hot stamping machines and other products.
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 7-20days if the goods are not in stock, it is according toquantity.
Q:What about your warranty?
A:Our warranty is 13 months, all machine part can be replaced for free within 13 months if broken(not including man made).
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have 13 months warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L
