Quick Details
-
Brand Name:
-
Yunyi
-
Model Number:
-
YD-42
-
Max. Current:
-
20mA
-
Max. Working Pressure:
-
100MPa
-
Name:
-
hydraulic mechanical water oil pressure switch
-
Control range::
-
-0.1~0~100Mpa
-
Stability:
-
≤ 0.2% / year
-
Display:
-
4-digit LED display
-
Power supply range:
-
24V ± 20%
-
Load capacity:
-
<24V1.2A
-
Protection class:
-
IP65
-
Ambient temperature:
-
-30 ℃ ~ 70 ℃
-
Storage temperature:
-
-40 ℃ ~ 85 ℃
-
Control accuracy:
-
≤ ± 0.5% FS
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
36VDC
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Yunyi
-
Model Number:
-
YD-42
-
Max. Current:
-
20mA
-
Max. Working Pressure:
-
100MPa
-
Name:
-
hydraulic mechanical water oil pressure switch
-
Control range::
-
-0.1~0~100Mpa
-
Stability:
-
≤ 0.2% / year
-
Display:
-
4-digit LED display
-
Power supply range:
-
24V ± 20%
-
Load capacity:
-
<24V1.2A
-
Protection class:
-
IP65
-
Ambient temperature:
-
-30 ℃ ~ 70 ℃
-
Storage temperature:
-
-40 ℃ ~ 85 ℃
-
Control accuracy:
-
≤ ± 0.5% FS

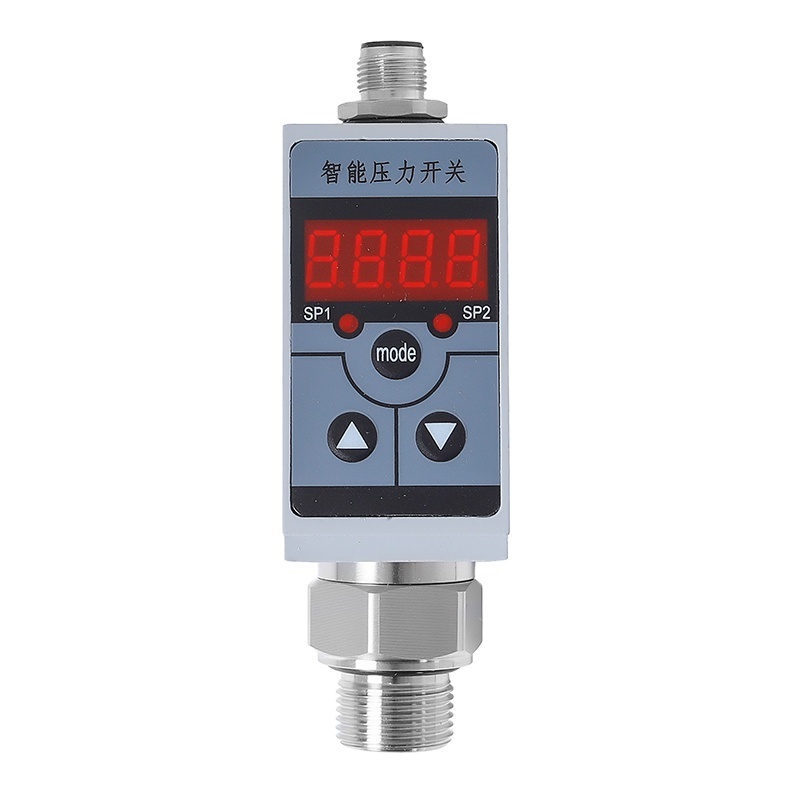

Electronic Liquid Differential Steam Low Presostato Control Npn Water Pump Pressure Switch
Electronic Pressure Switches electronic water pressure control switch is a pressure measurement, display, intelligent digital pressure measurement and control products output, integrated control. This product is a full electronic structure, use front-end with baffle filled hydraulic resistance type pressure sensor, the output signal is composed of high precision, low drift amplifier processing, into the high precision A/D converter, the digital signals into the microprocessor can processing, through processing the signal control switch, monitoring and control of the pressure control system. Digital Air Pressure Switch is flexible to use,
simple operation, easy debugging, safe and reliable. Widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries, the fluid medium pressure measurement display and control.
simple operation, easy debugging, safe and reliable. Widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries, the fluid medium pressure measurement display and control.
|
Pressure Range
|
-1 Bar-1 Bar; 0-0.1 Bar.....1000 Bar
|
|
Accuracy
|
±0.25%F.S， ±0.5%F.S
|
|
Output
|
4~20mA or RS485
|
|
Pressure connect port
|
G1/4’’male, G1/2’’male
|
|
Pressure Type
|
Gauge pressure; Absolute pressure; Sealed gauge pressure; Negative pressure optional.
|
|
Safe Overload
|
150% F.S.(standard)
|
|
Burst Pressure
|
300% F.S. (standard)
|
|
Display Units Accuracy
|
≤ ±0.1%F.S
|
|
Response time
|
≤5ms
|
|
Protection class
|
IP65
|
|
Ambient temperature
|
-30 ℃ ~ 70 ℃
|
|
Storage temperature
|
-40 ℃ ~ 85 ℃
|
|
Display
|
4-digit LED display
|
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What''s delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What''s your warranty terms?
A: We offer 12 months warranty time.
Q:Can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
