Quick Details
-
Table Travel (Y) (mm):
-
500
-
Dimension(L*W*H):
-
2500x2000x2550mm
-
Weight (T):
-
5.2 T
-
Positioning Accuracy (mm):
-
0.004
-
Repeatability (X/Y/Z) (mm):
-
0.002
-
Range of Spindle Speed(r.p.m):
-
1 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
7.5
-
Max. Table Load(kg):
-
500 kg
-
Feed Speed(mm/min):
-
1 - 10000 mm/min
-
Rapid Feed Speed(m/min):
-
20
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WEILI
-
Voltage:
-
380V
-
After-sales Service Provided:
-
Overseas service center available
-
condition:
-
new
-
colour:
-
any colour
-
X travel:
-
850 mm
-
Y travel:
-
500 mm
-
Z travel:
-
550mm
-
Table size:
-
1000*500 mm
-
controller:
-
Fanuc or Mitsubishi or Siemens
-
tool changer:
-
Arm type or Funnel type
-
name:
-
ATC cnc machining center automatic tool changer/vertical machine
Quick Details
-
Table Size (mm):
-
1000x500
-
Number of Axes:
-
3
-
Table Travel (X) (mm):
-
800
-
Table Travel (Y) (mm):
-
500
-
Dimension(L*W*H):
-
2500x2000x2550mm
-
Weight (T):
-
5.2 T
-
Positioning Accuracy (mm):
-
0.004
-
Repeatability (X/Y/Z) (mm):
-
0.002
-
Range of Spindle Speed(r.p.m):
-
1 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
7.5
-
Max. Table Load(kg):
-
500 kg
-
Feed Speed(mm/min):
-
1 - 10000 mm/min
-
Rapid Feed Speed(m/min):
-
20
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WEILI
-
Voltage:
-
380V
-
After-sales Service Provided:
-
Overseas service center available
-
condition:
-
new
-
colour:
-
any colour
-
X travel:
-
850 mm
-
Y travel:
-
500 mm
-
Z travel:
-
550mm
-
Table size:
-
1000*500 mm
-
controller:
-
Fanuc or Mitsubishi or Siemens
-
tool changer:
-
Arm type or Funnel type
-
name:
-
ATC cnc machining center automatic tool changer/vertical machine

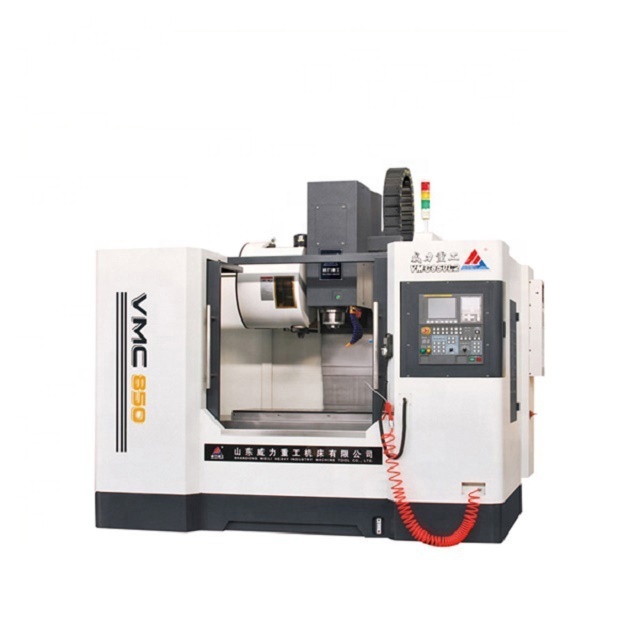

ATC cnc machining center automatic tool changer/vertical machine center
1. Specification
| PARAMETER | ||
| Table | X travel | 850 mm |
| Y travel | 500 mm | |
| Z travel | 550 mm | |
| table size | 500X1000 mm | |
| table load weight | 450 kg | |
| T-slot | 3-18-90mm | |
| distance from spindle end to table | 110-610 mm | |
| distance from spindle center to column | 560 mm | |
| X,Y,Z rapid movement | 20x20x20 m/min | |
| cutting feed | 1-5000 mm/min | |
| spindle | spindle speed | 8000 rpm |
| spindle taper | BT40 | |
| ATC | tool changer type | funnel type |
| tool change quantity | 16 piece | |
| the biggest tool diameter | 80/130 mm | |
| the biggest tool length | 300 mm | |
| the biggest tool weight | 6 kg | |
| main motor power | 5.5 /7.5kw | |
| overall size | 2700x2150x2700 mm | |
| weight | 4700 kg | |
2. Standard configuration
| ITEM | BRAND |
| CNC controller | FANUC Oi-mate MD |
| ATC(funnel,16 piece)(optional :disc,24 piece) | DETA, made in Taiwan |
| Spindle BT40 | POSA ,made in Taiwan |
| Box guide way (optional: linear guide way) | (HIWIN,made in Taiwan) |
| ball screw | PMI,made in Taiwan |
| bearing | NSK, made in Japan |
| electrical part | Schneider or Siemens |
| spindle center blow | |
| high pressure water cooling | |
| air cool | |
| manual chip | |
| three color alarm |
3. Detail
in one plywood case
Payment: TT 30% deposit, balance 70% before delivery. / LC at sight.
Our workshop
Main products:3 axes vertical CNC milling machining center, Vertical CNC Machine Center, CNC High Speed Vertical Machining Center, CNC High Speed Vertical Machining Center, High Speed Die and Mold CNC Machining Center,
CNC Milling Machine, Machining Centers, Machining Tools ,CNC Machine Machine tool CNC machining CNC milling Conventional milling Universal milling CNC machine CNC machine center, CNC machine, CNC Machine Tools CNC VMC Series milling machine.
VMC550,VMC650,VMC850,VMC1060,VMC1270,VMC1370,VMC1580
About us
| Shandong Weili Heavy Industry Machine Tools Company have a hard-earned reputation for durability and reliability, and are built to last. From the start, our mission has been focused on offering our clients affordable, heavy-duty machine tools, without sacrificing quality and performance. And with a nationwide dealer network, we are committed to providing our clients with the highest level of responsive service and support. |
|
If you have some doubt for above machine, plz contact me. I will be very glad. W E L C O M E T O I N Q U I R Y, M Y F R I E N D. |
