Quick Details
-
Brand Name:
-
pufa
-
Model Number:
-
PF-G24PLC7WH
-
Base Type:
-
high power g24 led lamp
-
CRI (Ra>):
-
82
-
Lamp Luminous Flux(lm):
-
800
-
Working Lifetime(Hour):
-
40000
-
Working Temperature(℃):
-
-20 - 50
-
Product Weight（kg）:
-
0.3
-
Lamp Luminous Efficiency(lm/w):
-
120
-
Material:
-
Aluminum+PC
-
Input voltage:
-
AC85-265V
-
Power factor:
-
0.95
-
Driver:
-
Constant Current Driver
-
Working temperature:
-
-20-50°C
-
life span:
-
40000Hours
-
Beam angle:
-
120 Degree
-
Power:
-
7W
-
LED type:
-
2835SMD CRI>80
Quick Details
-
Color Temperature(CCT):
-
4100K (Neutral White)
-
Input Voltage(V):
-
85-265
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
pufa
-
Model Number:
-
PF-G24PLC7WH
-
Base Type:
-
high power g24 led lamp
-
CRI (Ra>):
-
82
-
Lamp Luminous Flux(lm):
-
800
-
Working Lifetime(Hour):
-
40000
-
Working Temperature(℃):
-
-20 - 50
-
Product Weight（kg）:
-
0.3
-
Lamp Luminous Efficiency(lm/w):
-
120
-
Material:
-
Aluminum+PC
-
Input voltage:
-
AC85-265V
-
Power factor:
-
0.95
-
Driver:
-
Constant Current Driver
-
Working temperature:
-
-20-50°C
-
life span:
-
40000Hours
-
Beam angle:
-
120 Degree
-
Power:
-
7W
-
LED type:
-
2835SMD CRI>80
Product Description

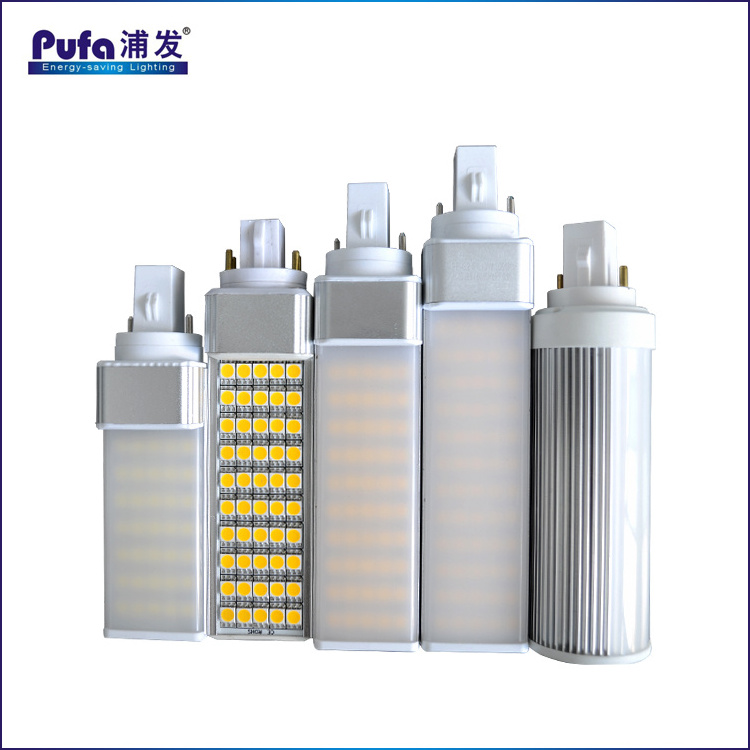

PF 120 degree beam angle G24PLC lamp
1.
Up to 80%
Energy-saving and environmentally friendly,120lm/W h
igh light efficacy and reliablilty, cost effective.
2.
Use high thermal conductivity aluminium, good heat dissipation
.
3.
Comfortable & healthy: no UV.no flicking.and no RF interference.
4.
Quick and easy installationto minimize retrofit costs,little maintenance costs.
5.
Adopt high brightness and low light decline led. Good quality power LED source.
6.
Long life: average 50,000 hours or more
7
Wide range of availab
le operating voltage and low consumption
8.
Work without ballast and starter.instant soft-start.
9.
Compatible electronic ballast are avaliable if you need
Product Paramenters
|
Model No.
|
PF-G24PL-13W
|
PF-G24PLC-11W
|
PF-G24PLC-9W
|
PF-G24PLC-7W
|
PF-G24PLC-5W
|
||||
|
Luminnus flux
|
1500±10%
|
1300±10%
|
1000±10%
|
800±10%
|
550±10%
|
||||
|
Dimension
|
165mm
|
150mm
|
138mm
|
128mm
|
99mm
|
||||
|
Socket
|
G24Q 4pin/ G24D 2pin
|
|
|
|
|
||||
|
Power factor
|
≥0.9
|
|
|
|
|
||||
|
Input Voltage
|
AC85-265V
|
|
|
|
|
||||
|
Frequency
|
50/60Hz
|
|
|
|
|
||||
|
LED type
|
81pcsSMD2835
|
60pcs SMD2835
|
54pcs SMD2835
|
45pcs SMD2835
|
40pcs SMD2835
|
||||
|
Color temperature
|
2700k 3000k 4000k 5000k 6000k
|
|
|
|
|
||||
|
Beam angle
|
210°
|
|
|
|
|
||||
|
Working temperature
|
-20 to 50℃
|
|
|
|
|
||||
|
CRI
|
82Ra
|
|
|
|
|
||||
|
Lifespan
|
50000h
|
|
|
|
|
||||
|
Housing material
|
AL+PC
|
|
|
|
|
||||
|
Warranty
|
3 years
|
|
|
|
|
||||
|
Certification
|
CE & RoHS ETL
|
|
|
|
|
||||
