DAHUIMT DBQ50C Line Bore Equipment Boring Machine Universal Welder Tornos Para Metal
DAHUIMT DBQ50C Line Bore Equipment Boring Machine Universal Welder Tornos Para Metal
DAHUIMT DBQ50C Line Bore Equipment Boring Machine Universal Welder Tornos Para Metal
DAHUIMT DBQ50C Line Bore Equipment Boring Machine Universal Welder Tornos Para Metal
DAHUIMT DBQ50C Line Bore Equipment Boring Machine Universal Welder Tornos Para Metal
DAHUIMT DBQ50C Line Bore Equipment Boring Machine Universal Welder Tornos Para Metal
DAHUIMT DBQ50C Line Bore Equipment Boring Machine Universal Welder Tornos Para Metal
DAHUIMT DBQ50C Line Bore Equipment Boring Machine Universal Welder Tornos Para Metal

DAHUIMT DBQ50C Line Bore Equipment Boring Machine Universal Welder Tornos Para Metal

FOB Reference Price: Get Latest Price
≥1 Sets
US $1971
≥10 Sets
US $1970
≥20 Sets
US $1939
≥100 Sets
US $1847
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Travel (W-axis) (mm):
0 mm
Range of Spindle Speed(r.p.m):
3000 r.p.m
Production Capacity:
50-100 Sets/month
Place of Origin:
Liaoning, China
Brand Name:
DAHUIMT
Voltage:
220V50HZ
Dimension(L*W*H):
Depend
Weight (T):
0.2 T
Weight:
120kg
After-sales Service Provided:
Overseas service center available
Boring bar diameter:
40mm
Bore diameter:
45-280mm
Boring stroke:
4500mm
Machine weight:
120kg
Motor power(feed drive):
90w
Feed rate:
0-100mm/min
warranty period:
12 MONTHES
Motor Power (kw):
1.8

Quick Details

Table Travel (X) (mm):
0 mm
Table Travel (Y) (mm):
0 mm
Table Travel (Z) (mm):
260 mm
Travel (W-axis) (mm):
0 mm
Range of Spindle Speed(r.p.m):
3000 r.p.m
Production Capacity:
50-100 Sets/month
Place of Origin:
Liaoning, China
Brand Name:
DAHUIMT
Voltage:
220V50HZ
Dimension(L*W*H):
Depend
Weight (T):
0.2 T
Weight:
120kg
After-sales Service Provided:
Overseas service center available
Boring bar diameter:
40mm
Bore diameter:
45-280mm
Boring stroke:
4500mm
Machine weight:
120kg
Motor power(feed drive):
90w
Feed rate:
0-100mm/min
warranty period:
12 MONTHES
Motor Power (kw):
1.8
Related products
Products Recommended
The freight charge on the page is higher, kindly consult salesman about specific freight !
Product Description

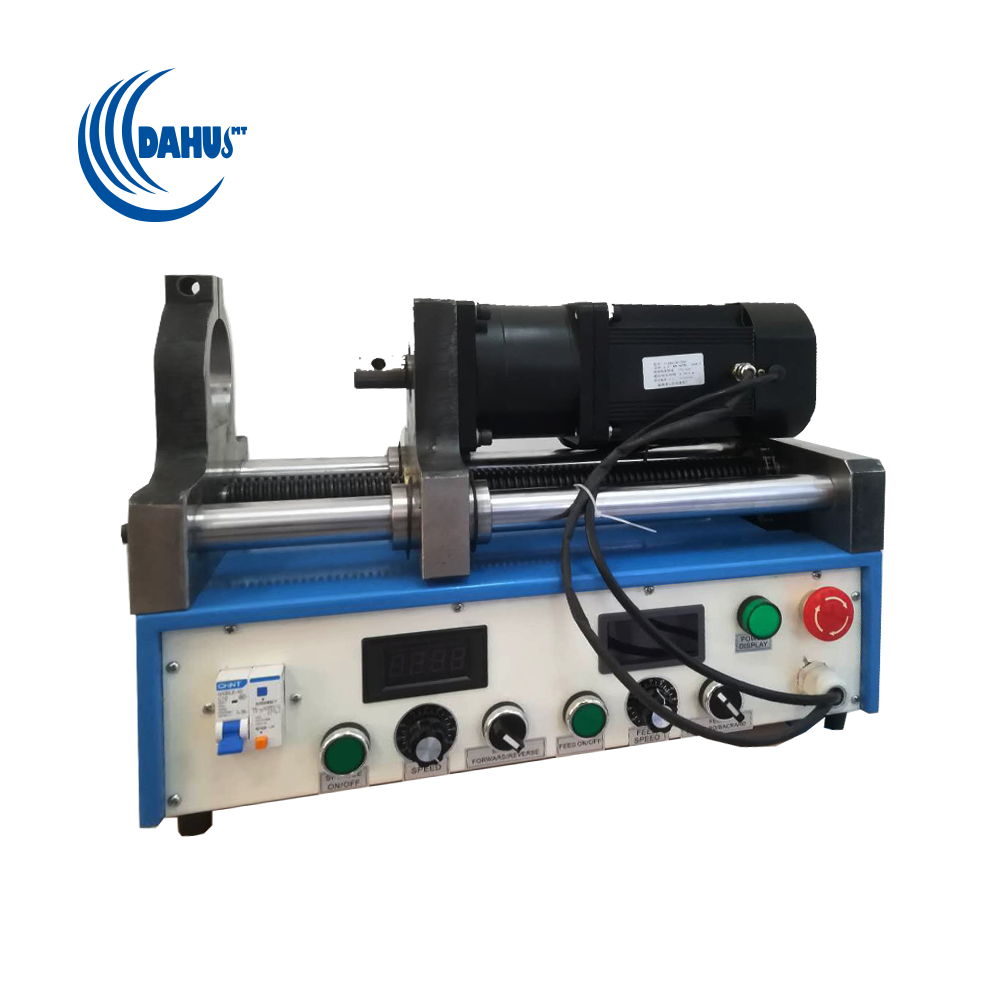

PORTABLE LINE BORING MACHINE
We are professional and skilled for producing as well as selling in this kind of machine since we have been in this area for more than 10 years. Machines are upgraded year by year, we updated the components continully to improve the quality, at the same time reduce its cost, now we have a mature system to insure customers would absolutely purchase machines with best quality and competitive price.
Model
DBQ40C
DBQ40
DBQ50C
DBQ50
DB50A
Boring bar diameter
40mm
50mm
Boring diameter range
φ45-φ180mm
φ45-φ200mm
φ55-φ250mm
φ55-φ280mm
Motor
Brushless DC motor 1.5Kw
Servo motor 1.8Kw
Brushless DC motor 1.5Kw
Servo motor 1.8Kw
Feeding speed
0-90mm/min
0-80mm/min
Length of boring bar
1500mm(Standard) Could be customized
Max turning depth
2mm
Torque
61NM
76.4NM
Voltage
220V/380V
Detailed Images

Power Plugs

10A, 250V with CE standard.

Core parts

Oil-free lubrication,strong rigidity,small gap and long serve time.

Drive

Good heat dissipation, regular big brand, heavy weight, high quality, long life of parts, no problem when operating.

Motor selection

Servo motor: The main drive stability is good independent feed drive, the cutting is more stable and does not chatter the tools.
Brushless DC motor: High torque, equipped with independent drive power protection for the motor has a good overload overheat protection.
Installation Steps
Optional Accessories
AUTO-WELDING MACHINE&WELDING RESOURCE
Simple operation, perfect appearance, light volume, stable welding rotation, large welding stroke, intelligent brushless motor and intelligent drive.
Welding power supply (wire feeder + electric welding machine) can work in conjunction with automatic welding
produced by our company. The changed welding power supply has stable output current, low cost and long life. It is recommended that customers choose a welding power source when purchasing automatic welding.
FACER&BORING BAR
The use of high-quality steel has the functions of smooth rotation, good processing and clean surface, and automatic feed. It is recommended that customers choose facer when purchasing boring machines.
The boring bar is made of high hardness material with smooth surface, even texture and very straight. The length and diameter of the boring bar can be customized according to the processing requirements, 40/50/60*1500-5000mm. In addition, can also be customized universal joint boring bar.
Our Advantages
Ready To Ship
Company Introduction
Dalian Dahui Machinery Equipment Co. , Ltd. is a professional manufacturer and trading company engaged in the manufacturing and export of various types of machine tools such like: CNC Lathe Machine, Vertical Lathe Machine, Horizontal Lathe Machine, Boring Machine, Machining Center and their accessories . Since its establishment in 2009, its products have been exported to more than 20 countries and regions, including Italy, Sweden, Turkey, Russia, Saudi Arabia, the United Arab Emirates, Australia, and Mexico. With reliable product quality and meticulous after-sales service, it has won customers' trust and praise.

Our Services & Strength

Our service: DMTC provides 7x24-hour online pre-sale service, engineer follow-up order service, and logistics operation service. With years of understanding of various markets, engineers who have toured various countries for a long time provide installation services. In addition, we can help customers successfully complete a series of services such as import clearance, thereby reducing customer costs in all aspects. Our advantage: Advantage 1: CE, ISO certification. Advantage 2: Full production tracking. Advantage 3: Engineers stationed in the factory guarantee the highest quality. Advantage 4: More suppliers as alternatives, guarantee your lowest price. Advantage 5: Sales staff who have been in the business for more than 10 years, answer your pre-sales / after-sales questions. Advantage 6: Engineers traveling around the world to ensure after-sales service. Advantage 7: OEM, ODM production, to meet customer needs in all aspects. Advantage 8: 5% -10% deposit, giving you the greatest trust and the least pressure on funds. Advantage 9: Low MOQ for only 1 unit. Advantage 10: For small equipment (such as boring machines) guaranteed in-stock all year round.
