Quick Details
-
Brand Name:
-
CXZTCL
-
Model Number:
-
CX-0412
-
Product name:
-
Magnetic Switch
-
Keywords:
-
Water Level Switch
-
Cable materail:
-
Four fluorine line
-
Installation:
-
Vertical
-
Color:
-
Sliver
-
Voltage:
-
220V+Relay
-
Max.currect:
-
1A
-
Function:
-
Touch Sensor Switch
-
Material:
-
304/316stainless steel
-
Certification:
-
CCC
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
Order 1 years
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
CXZTCL
-
Model Number:
-
CX-0412
-
Product name:
-
Magnetic Switch
-
Keywords:
-
Water Level Switch
-
Cable materail:
-
Four fluorine line
-
Installation:
-
Vertical
-
Color:
-
Sliver
-
Voltage:
-
220V+Relay
-
Max.currect:
-
1A
-
Function:
-
Touch Sensor Switch
-
Material:
-
304/316stainless steel
-
Certification:
-
CCC

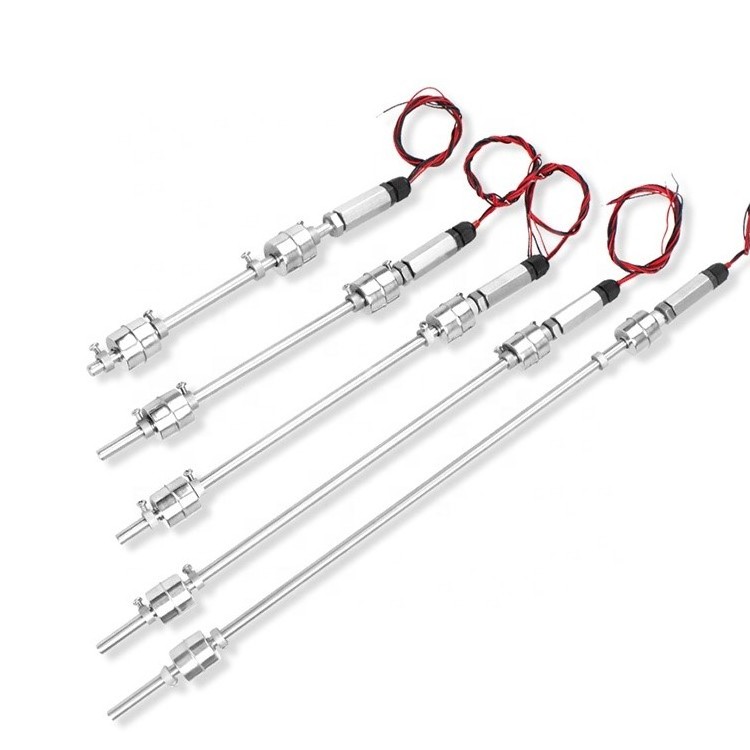

Adjustable High Precision Liquid Level water level sensor switch
Description
Double float switch can be used in water tank, pool, sink, tank and other liquid level control (drainage or water), or do the level of the upper and lower alarm switch. Inside the contacts are very sensitive with imported reed switches.
Float switch can not directly control the solenoid valve or high power relay, AC contactor and so on. To add a small relay.
1. Can the float be able to move anywhere?
A: No, the point of the float is fixed, up and down with a stopper limit. The retainer movement is also useless, inside the reed switch is not moving.
2. Float switch can directly control the pump cargo solenoid valve or alarm it?
A: No, because the float switch inside the reed switch contact current is small, control the big load will burn out. Control the solenoid valve, the alarm to add a small relay, control the pump to add a small relay or AC contactor (according to the pump with the power of the AC contactor).
