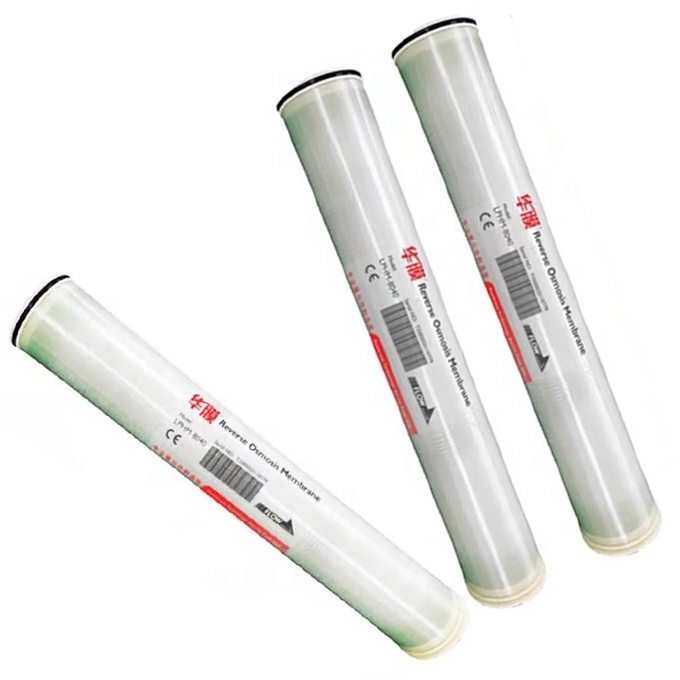

Industrial water treatment ULP4040 reverse osmosis RO membrane 4 Inch RO membrane element from Chinese manufacturer

Industrial water treatment ULP4040 reverse osmosis RO membrane 4 Inch RO membrane element from Chinese manufacturer

FOB Reference Price: Get Latest Price

≥100 Pieces

US $59

≥500 Pieces

US $58

≥1000 Pieces

US $55

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 3.3kg

Size:: 106x12x12cm

Power:: None

Weight (KG):: 3.5 kg

PRODUCT NAME:: RO MEMBRANE

BRAND:: HUAMO, FROTEC, TANFO, ROOR

FUNCTION:: WATER FILTRATION

MODELS:: ULP4040, ULP6040, ULP 8040

KEYWORD:: REVERSE OSMOSIS MEMBRANE

WARRANTY:: 24 MONTHS

CERTIFICATION:: CE ISO

OPERATION PRESSURE:: 150 PSI

PH RANGE:: 2-10

MAX. OPERATION TEM.:: 45℃(113℉)

Quick Details

Place of Origin:: Fujian, China

Brand Name:: HUAMO

Material:: Imported glue

Weight:: 3.3kg

Size:: 106x12x12cm

Power:: None

Weight (KG):: 3.5 kg

PRODUCT NAME:: RO MEMBRANE

BRAND:: HUAMO, FROTEC, TANFO, ROOR

FUNCTION:: WATER FILTRATION

MODELS:: ULP4040, ULP6040, ULP 8040

KEYWORD:: REVERSE OSMOSIS MEMBRANE

WARRANTY:: 24 MONTHS

CERTIFICATION:: CE ISO

OPERATION PRESSURE:: 150 PSI

PH RANGE:: 2-10

MAX. OPERATION TEM.:: 45℃(113℉)

Product Description

RO MEMBRANE WORKING CONDITION

1. Maximum Operating Pressure:

41 bar(600 psi);

2. Maximum Operating Temperature:

45℃ (113℉); 3. Maximum Pressure Drop per Element:

1.0 bar (15 psi); 4. pH Range of Continuous Operation: 2-11; 5. pH Range of Chemical Cleaning: 1-13; 6. Maximum Feed Silt Density Index:

(SDI15) 5.0; 7. Free Chlorine Tolerance: < 0.1 ppm.

These points are normal as below:

1. Membrane active areas may vary ±4%;

2. Permeate flow rates for individual elements may vary ±15%; 3. Stabilized salt rejection is generally achieved after continuous using for 24-48 hours,

which depending on water qualities and operating conditions.

HUAMO ULP SERIES RO MEMBRANE

ULP series is a low-pressure aromatic polyamide composite membrane element. It has the characteristics of large flux and high desalination rate. The operating pressure is about 2/3 of normal membranes.It is suitable for desalination of RO water,
groundwater, municipal water and other water sources. It is mainly used in pure water, boiler feed water, food and pharmaceutical manufacturing industries and other fields.

Model	Active Membrane Area ft2(m2)	Stabilized Salt Rejection (%)	Minimum Salt Rejection(%)	Permeate Flow Rate gpd(m3/d)
ULPHM-4040	78(7.2)	99.3	99	2250(8.7)
ULPHM-6040	185(172)	99.2	99	4120(15.6)
ULPHM-8040	400(37)	99.3	99	11500(44)

NOTES OF HUAMO ULP SERIES RO MEMBRANE:

1. Test Condition: Feed Water Pressure 1.03 MPa (150 psi);

2. Feed Water Temperature: 25 °C (77 °F);

3. Feed Water Concentration :1,500 ppm NaCl;

4. Feed Water pH: 8; Permeate Recovery 15%.

Model	A inch(mm)	B inch(mm)	C inch(mm)	D inch(mm)
ULP-4040	40(1016)	1.05(26.7)	0.75(19)	3.9(99)
ULP-6040	40(1016)	1.05(26.7)	0.98(25)	5.75(146)
ULP-8040	40(1016)	0	1.125(29)	7.95(201.9)

HUAMO LP SERIES RO MEMBRANE

BW series is an aromatic polyamide composite membrane element. It has the characteristics of low operating pressure, high water production and high desalination rate. It has a high removal rate for dissolved salts, TOC, SI02 and other substances, and is especially suitable for the preparation of high-purity water in the electronics and power industries. It is suitable for desalination treatment of surface water, municipal water and other water sources, mainly used in industrial pure water, boiler feed water or brackish water applications such as high-concentration brine.

Model	Active Membrane Area ft2(m2)	Stabilized Salt Rejection (%)	Minimum Salt Rejection(%)	Permeate Flow Rate gpd(m3/d)
BW-4040	78(7.2)	99.4%	98.8%	2050(7.8)
BW-6040	185(17.2)	99.3%	99%	4120(15.6)
BW-8040	400(37)	99.4%	98.8%	10500(40)

NOTES OF HUAMO BW SERIES RO MEMBRANE:

1.Test Condition: Feed Water Pressure: 1.55MPa (225 psi);

2. Feed Water Temperature: 25 °C (77 °F);

3. Feed Water Concentration: 2,000 ppm NaCl;

4. Feed Water PH: 8.

Model	A inch(mm)	B inch(mm)	C inch(mm)	D inch(mm)
BW-4040	40(1016)	1.05(26.7)	0.75(19)	3.9(99)
BW-6040	40(1016)	1.05(26.7)	0.98(25)	5.75(146)
BW-8040	40(1016)	0	1.125(29)	7.95(201)

HUAMO FR SERIES RO MEMBRANE

FRHM4040/FRHM8040 anti-fouling brackish water desalination reverse osmosis membrane element, with the characteristics

of high water production and high desalination rate. Suitable for large-scale industrial and municipal water treatment systems or systems with poor influent water quality.

Model	Active Membrane Area ft2(m2)	Stabilized Salt Rejection (%)	Minimum Salt Rejection(%)	Permeate Flow Rate gpd(m3/d)
FRHM4040	78(7.2)	99.5	99%	2050(7.8)
FRHM8040	400(37)	99.5	99%	10,500(40)

NOTES OF HUAMO FR SERIES RO MEMBRANE:

1.Test Condition: Feed Water Pressure: 1.55MPa (225 psi);

2. Feed Water Temperature: 25 °C (77 °F);
3. Feed Water Concentration: 2,000 ppm NaCl;
4. Feed Water PH: 8.

Model	A inch (mm)	B inch (mm)	C inch (mm)	D inch (mm)
FRHM4040	40(1016)	1.05(26.7)	0.75(19)	3.9(99)
FRHM8040	40(1016)	0	1.125(29)	7.95(201)

HUAMO FR-HT series RO membrane

TF22-8040FR-HT/TF22-4040FR-HT anti-fouling high temperature reverse osmosis membrane elements, which have the characteristics of high water production, high salt rejection and certain high temperature resistance. Suitable for large-scale industrial and municipal water treatment systems or systems with poor influent water quality.

Model	Active Membrane Area ft2(m2)	Stabilized Salt Rejection (%)	Minimum Salt Rejection(%)	Permeate Flow Rate gpd(m3/d)
TF22-4040FR-HT	78(7.2)	99.5	99	2050(7.8)
TF22-8040FR-HT	400(37)	99.5	99	10500(7.8)

Model	A inch(mm)	B inch(mm)	C inch(mm)	D inch(mm)
TF22-4040FR-HT	40(1016)	1.05(26.7)	0.75(19)	3.9(99)
TF22-8040FR-HT	40(1016)	0	1.125(29)	7.95(201)

High filter precision of ro membrane

Reverse osmosis membrane can intercept material greater than 0.0001 micron, is one of the finest membrane separation products, can effectively intercept all dissolved salts and molecular weight greater than 100 organic matter, while allowing water molecules through.
