Quick Details
-
Brand Name:
-
CYKY
-
Voltage:
-
110v-240v
-
Dimension(L*W*H):
-
414*500*750
-
Year:
-
2020
-
Weight (KG):
-
210
-
Power (kW):
-
12
-
Type:
-
Cut Off Machine
-
After-sales Service Provided:
-
No overseas service provided
-
max. remote monitor:
-
5 meters
-
Magnification:
-
10x-200x
-
Cutting depth:
-
0.1 - 50mm
-
Positional accuracy:
-
+/- 0.01 mm
-
Name:
-
diamond wire cutting machine
-
Product:
-
small precision diamond wire saw
Quick Details
-
Blade Size(mm):
-
100
-
No-load Speed(rpm):
-
1 rpm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CYKY
-
Voltage:
-
110v-240v
-
Dimension(L*W*H):
-
414*500*750
-
Year:
-
2020
-
Weight (KG):
-
210
-
Power (kW):
-
12
-
Type:
-
Cut Off Machine
-
After-sales Service Provided:
-
No overseas service provided
-
max. remote monitor:
-
5 meters
-
Magnification:
-
10x-200x
-
Cutting depth:
-
0.1 - 50mm
-
Positional accuracy:
-
+/- 0.01 mm
-
Name:
-
diamond wire cutting machine
-
Product:
-
small precision diamond wire saw

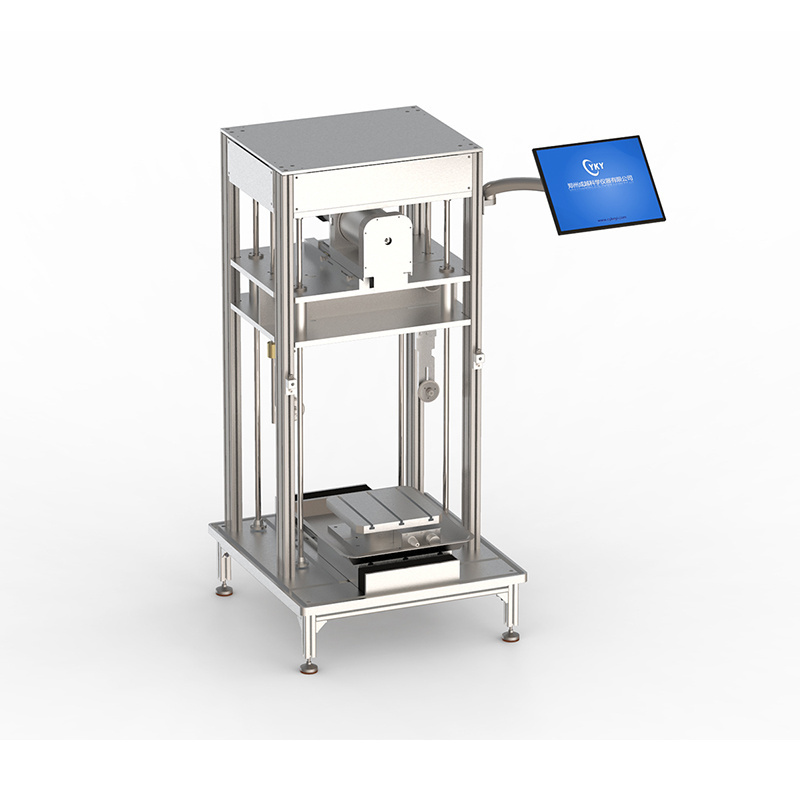

Precision Diamond Wire Saw With Swing Rotary Sample Fixture and Microscope Monitor
is a CE certified, small precision diamond wire saw for cutting sample ≤ 2" diameter
or square up to 50mm thick. It is designed to provide low stress cut for various materials such
as the fragile crystals and TEM or IC samples.
- Through-Microscope viewing enables accurate positioning for initializing the first cut
- Swing / Rotary Sample Fixture promotes higher efficiency and better cut surface quality
- Pneumatic wire tension control system with digital pressure regulator help maintain a stable
wire tension during the cut while provides better adaptability to wires as thin as 0.12mm
- Ultra-thin sectioning up to 0.06 mm for some strong materials
Technical parameters of diamond wire saw machine
|
Power |
Wire Saw Control: Universal 110V or 240VAC 50/60Hz, 200W max. |
|
Structure
|
Premium Add-ons ( Through-Microscope viewing, Swing/Rotary Fixture, Pneumatic Wire tension control ) for precise, efficient and high quality cut Heavy-duty aluminum alloy structure with compact size single wire swing cutting with adjustable wire length from 5-15mm (broken wire still can be used) Transparent plastic plates are included to prevent Coolant splashing |
|
Through-Microscope Viewing |
Through-Microscope viewing allows you pick up small details on the sample which is essentially invisible to the eye. Thus, accurate positioning for the cuts is supported. Li-ion battery powered microscope and wireless monitor provides upto 5 hours continues operation. 5 meters max. remote monitor . Magnification 10x - 200x |
|
Swing / Rotary Sample Fixture |
Such fixture has an independent controller for its parameter settings such as swing frequency/ angle (±23°, upto 20 swings/min), rotating speed (30rpm max.) Cycles. Higher cutting surface quality can be expected by swinging or rotating the specimen throughout the cutting process. 110~240VAC to 24VDC power adapter is includ e |
|
Pneumatic tension system |
The wire saw features a pneumatic tension system for optimizing the cutting performance and wire adaptability. With such system, the wire saw can handle different cutting wires from 0.12mm - 0.5mm dia. An air compressor is required. Digital Pressure regulator 0~130PSI (+/-3% full span accuracy) |
|
Motor Driven Stage |
Z axis: 50mm, automatically controlled by digital panel Y axis: 50mm, automatically controlled by digital panel Two dimension sample stage built in 360° degree horizontal rotating and +/-10° tilting |
|
Cutting parameters |
Feed Speed: 0.01 mm/min to 40 mm/min adjustable Back Speed: 1 mm/min to 100 mm/min adjustable Spooler spin speed: 1-260 RPM adjustable |
|
Controller & Touch Screen |
Color touch screen controller will set up wire travel speed, cutting speed along Z axis and cutting width along Y axis |
|
Lubricant Refill Cup
|
Features an oil refill cup behind the spooler motor, please apply 10-15 drops Anti-Wear Oil before first-time use. Wire spooler motor, 3 Amps, Torque=1.8Nm |
|
|
≤ 15 meters used for each installation One spool of 0.30mm Dia x 20 meter length Diamond Wire is included for immediate use A Diamond Blade Dressing Stone is included for keeping the wire sharp. |
|
Wire tension system |
Steel spring wire tension system with break wire alarm |
|
|
One water pump is included for cooling diamond wire during cutting. (the pump voltage is the same as the saw voltage) You must use anti-corrosive oil or radiator water as coolant Warning: must clean the machine after each cutting, especially using tap water as the coolant to prevent rust. |
|
Product dimensions
|
Saw: 414mm(L) × 500mm(W) × 750mm(H) Controller: 340mm(L) x 290mm(W) x 170mm(H) |
|
Crate dimensions |
27"(L) x 23"W) x 40" (H) |
|
Shipping Weight |
188 lbs with 48x40x44" |
|
Warranty |
One year limited with lifetime support, not including cutting wire |
