Quick Details
-
Brand Name:
-
Weisheng
-
Model Number:
-
VS-2082
-
Fault location of outer sheath:
-
0Ω~5MΩ
-
Conductor circuit resistance:
-
0Ω~2KΩ
-
Maximum Output Power:
-
5W
-
Operating temperature:
-
-20℃~+50℃
-
Maximum depth:
-
8 meters
-
Data interface:
-
USB 2.0
-
Sounding accuracy:
-
±2.5%+5cm (0m~2m) ±5%+5cm(2m~3m)±7.5%+5cm(3m~8m)
-
Dual frequency signal output function:
-
Dual frequency signal output function
-
Output power setting:
-
Low, medium and high
-
RX Frequancy:
-
Active signal:98kHz,9.8kHz,82kHz
Quick Details
-
Warranty:
-
1 years
-
Power:
-
Electronic
-
Place of Origin:
-
China Hebei
-
Brand Name:
-
Weisheng
-
Model Number:
-
VS-2082
-
Fault location of outer sheath:
-
0Ω~5MΩ
-
Conductor circuit resistance:
-
0Ω~2KΩ
-
Maximum Output Power:
-
5W
-
Operating temperature:
-
-20℃~+50℃
-
Maximum depth:
-
8 meters
-
Data interface:
-
USB 2.0
-
Sounding accuracy:
-
±2.5%+5cm (0m~2m) ±5%+5cm(2m~3m)±7.5%+5cm(3m~8m)
-
Dual frequency signal output function:
-
Dual frequency signal output function
-
Output power setting:
-
Low, medium and high
-
RX Frequancy:
-
Active signal:98kHz,9.8kHz,82kHz
Specification
Introduction

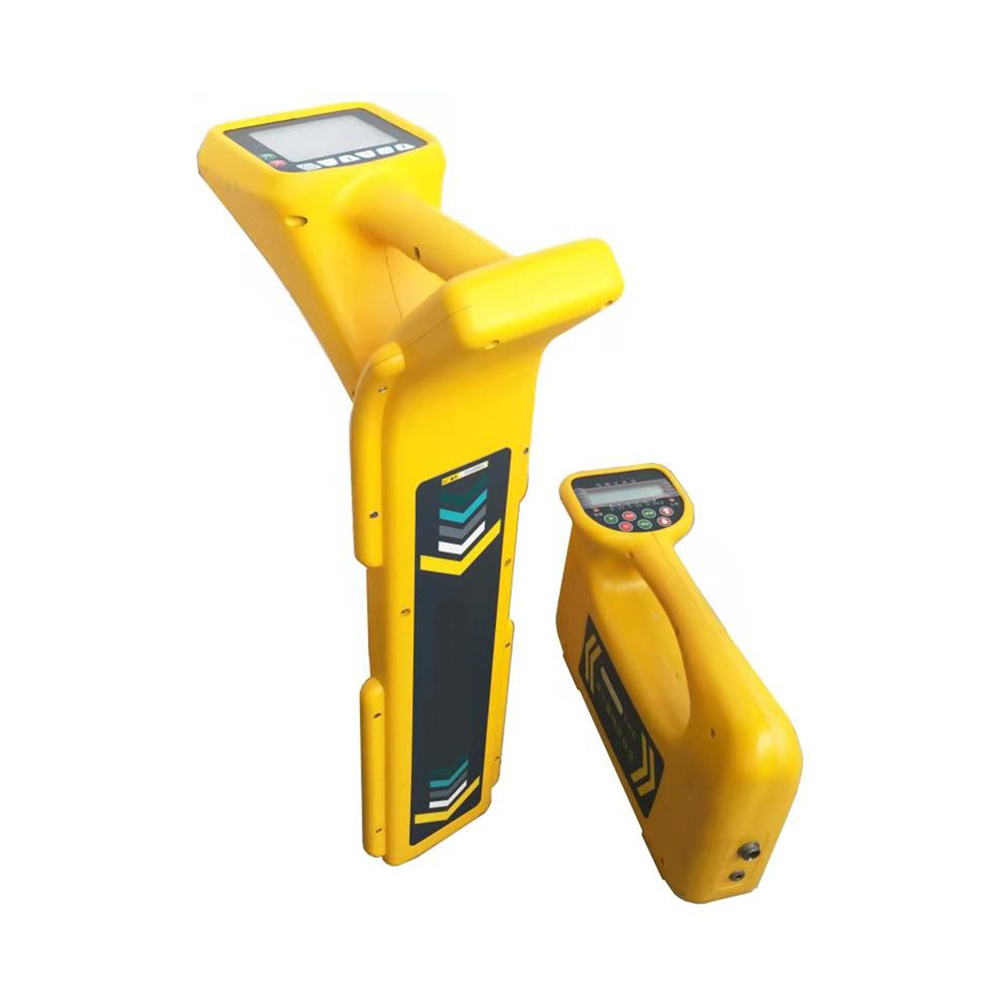

Pipe Locator is specially designed to detect pipes, sondes, telecommunication lines buried utilities. This device may detect buried power cables, CATV cables, gas and water pipes, sewer lines, telephone cables, fiber optic cables with sheath, sondes, inspection camera transmitters.
The Transmitter emits a signal. The Receiver detects the signal. You can locate the relative position of the buried utility, sonde or camera by following the tracing signal.
For further information on
W
eshine
's Service Solutions, contact our
24/7
online sales representative on alibaba.com
or you may
>>
Click Here
(for PC)
or Click "
Send Inquiry
"
at the bottom
(for APP)
to get quotes from
W
eshine
.
|
Transmitter Specifications
|
|
|
|
Operating Frequency
|
low • medium • high • radio
|
|
|
Operating Temperature
|
-4°F to 133º (-20ºC to +55ºC)
|
|
|
Hook-up Method
|
Direct Connection
Inductive Coupling (with optional coupler) Transmitter Induction |
|
|
Load Matching
|
automatic from 5 Ω to 25,500 Ω
|
|
|
Output Power
|
10 Watts (High) 250 Milliwatts (Low)
|
|
|
Battery Types
|
7.2 V lithium-ion battery pack
8 amp-hour maintenance |
|
|
Battery Life
|
greater than 4-8 hours
depending on load, frequency and power setting |
|
|
Dimensions
|
23 x 28 x15 cm
|
|
|
Weight
|
2.6Kg
|
|
|
Receiver Specifications
|
|
|
|
Operating Frequency
|
low • medium • high • radio• 50/60Hz
|
|
|
Antenna Mode
|
Null (vertical coil)
Peak (horizontal coil) |
|
|
Audio Indication
|
Variable pitch audio
|
|
|
Operating Temperature
|
-4°F to 133º (-20ºC to +55ºC)
|
|
|
Battery Types
|
7.2 V lithium-ion battery pack
8 amp-hour maintenance |
|
|
Battery Life
Continuous Intermittent |
12 hours 24 hours |
|
|
Dimensions
|
68 x 25 x11 cm
|
|
|
Weight
|
1.6Kg
|
|
|
Signal Strength
|
LCD bar graph
Absolute Signal Strength readout 0-999 |
|
|
Gain Control
|
up/down button for automatic
centering and manual control |
|
|
Dynamic Range
|
100 dB
|
|
|
Depth Measurement
Automatic Manual |
Digital depth readout to 2.5m
Triangulation for verification of automatic readout in congested environments |
|
