Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD 2 or EZCAD 3
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
OV LASER
-
Marking Head Brand:
-
sino-galvo
-
Weight (KG):
-
60 KG
-
Core Components:
-
Laser machine
-
Windows System:
-
Win XP / 7 / 8 / 10 (32 bit , 64 bit)
-
Fiber laser source lifespan:
-
80000 hours - 100,000 hours
-
Power Supply:
-
AC110V/220V +10% / 50HZ or 60HZ
-
Continuous Working:
-
24 hours
-
Pulse Frequence:
-
30 KHz - 60 KHz
-
Laser Head Brand:
-
sino-galvo
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD 2 or EZCAD 3
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
OV LASER
-
Marking Head Brand:
-
sino-galvo
-
Weight (KG):
-
60 KG
-
Core Components:
-
Laser machine
-
Windows System:
-
Win XP / 7 / 8 / 10 (32 bit , 64 bit)
-
Fiber laser source lifespan:
-
80000 hours - 100,000 hours
-
Power Supply:
-
AC110V/220V +10% / 50HZ or 60HZ
-
Continuous Working:
-
24 hours
-
Pulse Frequence:
-
30 KHz - 60 KHz
-
Laser Head Brand:
-
sino-galvo
Welcome to contact Carrie for inquiries and technical support.
Mobile/WhatsApp/Skype/WeChat: +86 13307109231
Email: sales25(@)86ovlaser.com
Product Description
Specification
We can customize the machine depending on your special needs.
What Can Fiber Laser Engraving Machine do?
One fiber laser marking machine with 4 functions:
1.Fast marking on materials surface。
2.deep engraving metal。
3.cutting jewelry names。
4.3D relief engraving metal.
Suits for engraving logo, text, time, serial, part number, QR code, barcode, 2D code, bitmap, pictures and images on almost all metal and part of nonmetal mateirals. Appicable for engraving gold silver jewelry, firearm guns, gift items, tumbler cups mugs, pens, auto parts, knives, metal tools and machinery parts etc.Flexible to work with electric xy moving table to get large format engraving area, work with rotary fixture to mark cylinder objects.
Main Parts of Fiber Laser：
* Laser Source: Raycus / JPT / IPG / MAX brand.
* Software: EZCAD2 or EZCAD3.0
* Laser Power: 30w 50w 60w 80w 100w 120W
* Marking Area: 110*110mm, 150*150mm, 175*175mm,200*200mm, 300*300mm.
* Galvo Head: OV Laser OV8810 / Sino Galvo SG 2206 / Sino Galvo SG7220/ZBTK
* Column Stand: 50cm / 68cm / 80cm / 100cm etc.
* Rotary Fixture Available: 69mm, 80mm, 100mm, 125mm, 160mm, 200mm etc.
* More Optional Parts: Vision Position Camera/ Cyclops Camera/ Conveyor table / Purifier / Electric XY table.
What Can Fiber Laser Engraving Machine do?
One fiber laser marking machine with 4 functions:
1.Fast marking on materials surface。
2.deep engraving metal。
3.cutting jewelry names。
4.3D relief engraving metal.
Suits for engraving logo, text, time, serial, part number, QR code, barcode, 2D code, bitmap, pictures and images on almost all metal and part of nonmetal mateirals. Appicable for engraving gold silver jewelry, firearm guns, gift items, tumbler cups mugs, pens, auto parts, knives, metal tools and machinery parts etc.Flexible to work with electric xy moving table to get large format engraving area, work with rotary fixture to mark cylinder objects.
Main Parts of Fiber Laser：
* Laser Source: Raycus / JPT / IPG / MAX brand.
* Software: EZCAD2 or EZCAD3.0
* Laser Power: 30w 50w 60w 80w 100w 120W
* Marking Area: 110*110mm, 150*150mm, 175*175mm,200*200mm, 300*300mm.
* Galvo Head: OV Laser OV8810 / Sino Galvo SG 2206 / Sino Galvo SG7220/ZBTK
* Column Stand: 50cm / 68cm / 80cm / 100cm etc.
* Rotary Fixture Available: 69mm, 80mm, 100mm, 125mm, 160mm, 200mm etc.
* More Optional Parts: Vision Position Camera/ Cyclops Camera/ Conveyor table / Purifier / Electric XY table.
|

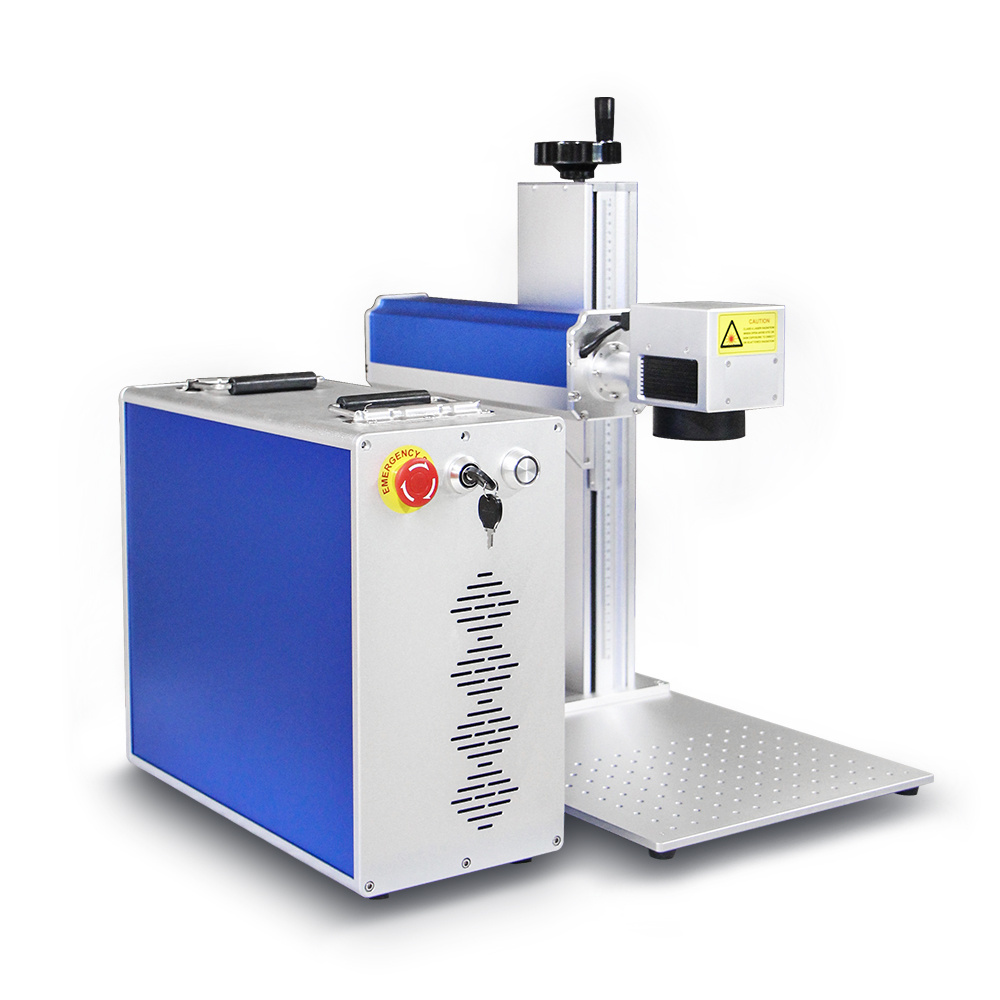

Fiber Laser Marking Engraving and Cutting Machine Specifications
|
|
|
|
|||
|
Model
|
OV SF-20/30/50/100
|
Cooling Mode
|
Air Cooling
|
|||
|
Power
|
20W/30W/50W/100W
|
Marking Speed
|
7000mm/s
|
|||
|
Laser Source
|
Raycus/ IPG/ JPT/MAX
|
Minumum Line Width
|
0.015mm
|
|||
|
Pulse Frequency
|
20Khz-60Khz/50-100Khz
/1-4000Khz
|
Minumum Character
|
0.2mm
|
|||
|
Field Lens Brand
|
Singapore Wavelength
|
Laser Wavelength
|
1064μm
|
|||
|
Marking Area
|
110mm*110mm, optional 70mmx70mm, 175mm×175mm 300*300mm or more
|
Operating Environment
|
5℃-45℃, clean or dust-free
|
|||
|
Control Card
|
JCZ Brand EZCAD
|
Power Supply
|
AC220V or 110V plug
|
|||
|
Operating System
|
Win XP /7/ 8/ 10 (32 bit, 64bit)
|
Warranty
|
3 years
|
|||
|
Application & Samples
|
|
|
|
Jewelry & Acessories:
|
Rings, Pendant, Bracelet, Necklace, Sunglasses, Watches etc.
|
|
|
Electronic Components:
|
Phone, IPAD, Resistors, Capacitors, Chips, Printed Circuit Boards, etc.
|
|
|
Mechanical Parts:
|
Bearings, Gears, Standard Parts, Motor, etc.
|
|
|
Electronics:
|
Iphone, IPAD, Ipod, Keyboard and more standard parts.
|
|
|
Instrument:
|
Panel Board, Nameplates, Precision equipment, etc.
|
|
|
Hardware Tools:
|
Knives, Tools, Measuring Tools, Cutting Tools, etc.
|
|
|
Automobile Parts:
|
Pistons&Rings, Gears, Shafts, Bearings, Clutch,Lights
|
|
|
Handicrafts:
|
Zipper, Lighter, Key Holder, Souvenir,etc.
|
|
Sample show
Plastic marking samples
MOPA color marking sample
2.5D & 3D Samples
The newest 2.5D machine is composed by the motorized Z axis and EZCAD 3.0 software, mainly used for coin relief engraving, metal mould deep engraving, metal sheet engraving and cutting etc., but cheaper than the 3D machine.
2.5D laser for jewelry & coin relief engraving, necklace cutting etc.
2.5D laser for jewelry & coin relief engraving, necklace cutting etc.
2.5D laser for gun, knife, metal relief engraving
Lastest 3D galvo laser machine for curved surface marking for choice
