- Product Details
- {{item.text}}
Quick Details
-
Application:
-
artificial grass, roof garden, basement
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong
-
Brand Name:
-
Best
-
Model Number:
-
DC141
-
Type:
-
drainage cell
-
name:
-
HDPE drainage cell
-
material:
-
hdpe ldpe
-
color:
-
black, white, custom
-
application:
-
roof garden and artificial grass lawn
-
usage:
-
drainage of water
-
thickness:
-
5 mm
-
height:
-
20 mm 30 mm 50 mm
-
width:
-
500 mm
-
length:
-
500 mm
-
package:
-
ropes
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
artificial grass, roof garden, basement
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong
-
Brand Name:
-
Best
-
Model Number:
-
DC141
-
Type:
-
drainage cell
-
name:
-
HDPE drainage cell
-
material:
-
hdpe ldpe
-
color:
-
black, white, custom
-
application:
-
roof garden and artificial grass lawn
-
usage:
-
drainage of water
-
thickness:
-
5 mm
-
height:
-
20 mm 30 mm 50 mm
-
width:
-
500 mm
-
length:
-
500 mm
-
package:
-
ropes
Product Description

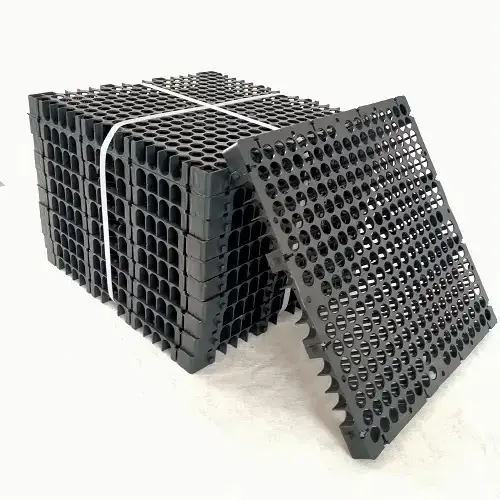

Our drainage cell is a structural drainage module drain panel manufactured from recycled plastics designed for sub-surface drainage where a high capture and discharge rate of water and high compressive strength is required.
It can used in the construction of roof gardens, planter boxes, plaza decks, basements, pond filtration systems, concealed drains, pre-cast and in situ drains and sports fields. It also provides a drainage cavity and, when used in a landscaped roof, it provides additional protection layer for the waterproofing membrane and eliminates the need for a gravel course. The modules are easily interlocked in the same plane or at right angles to one another. The modules may also be butted together without interlocking. The cell is available in different 30mm and 20mm height, and are able to withstand loads imposed by wheel burrows and mechanical equipment such as Bobcats.
Specification
|
item
|
value
|
|
Warranty
|
More than 5 years
|
|
After-sale Service
|
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
|
|
Project Solution Capability
|
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
|
|
Application
|
roof, garage, parking lot, retaining wall, basement, artificial grass
|
|
Design Style
|
Modern
|
|
Place of Origin
|
Shandong
|
|
Brand Name
|
Best
|
|
Model Number
|
DC23073101
|
|
Type
|
HDPE drainage cell, plastic drainage cell, drain panel
|
|
name
|
Plastic 30 mm drainage cell panel
|
|
material
|
hdpe ldpe
|
|
color
|
black, white
|
|
application
|
construction waterproofing
|
|
usage
|
roof, garden, parking lot, basement, retaining wall
|
|
thickness
|
5 mm
|
|
height
|
20 mm, 30 mm, 40 mm and 50 mm drain cell panel
|
|
width
|
500 mm
|
|
length
|
500 mm
|
|
package
|
ropes
|
Product Features
High compressive strength in excess of 80t/m² but lightweight.
High surface area and internal void volume.
Efficient water capture and discharge Interlocks in one plane and also at right angles to one another.
Flexibility in design and configuration.
Rapid assembly minimizes on-site disruption.
Resistant to biological attack.
Not affected by wide range of soil-borne chemicals.
Narrow profile enables greater soil depth in planter beds.
Relieves hydrostatic pressure on retaining walls.
Extremely hardwearing, waterproof and abrasion resistant fiber.
Mildew Proof, Rot Proof
Excellent Dimensional Stability
Suitable for Outdoor / Indoor use, and for all types of weather.
U/V Stabilized – Chemically treated
UV Stabilizer provides a maximum protection for the grass carpet against fading from UV sunlight.
Solution dyed grass keeps the color durable.
Solution-dyed for excellent color fastness
The blades of fake grass will not be broken or worn out by itself.
Washable.
Mildew Proof, Rot Proof
Excellent Dimensional Stability
Suitable for Outdoor / Indoor use, and for all types of weather.
U/V Stabilized – Chemically treated
UV Stabilizer provides a maximum protection for the grass carpet against fading from UV sunlight.
Solution dyed grass keeps the color durable.
Solution-dyed for excellent color fastness
The blades of fake grass will not be broken or worn out by itself.
Washable.
Product Usage
Sports Field
Roof Garden
Feature Wall
Landscaping
Car parks
Driveway drainage
Artificial grass
Synthetic turf
Greening lawn of balcony
Basement wall
Retaining wall
Terrace garden drains
Packing & Delivery
Bundles and pallets for package.
