Quick Details
-
Product name:
-
swing barrier gate
-
Material:
-
304 Stainless Steel
-
Keyword:
-
Barrier Gates Turnstile
-
Type:
-
swing turnstile
-
Size:
-
1500mm x135mm x980mm
-
Average lifespan:
-
5 million times
-
Channel width standard channel:
-
600mm
-
Power supply:
-
AC100~265V / 50HZ±10%
-
switch time:
-
0.5-60 seconds, adjustable
-
Application:
-
Security Access Control Management
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
LIKE
-
Model Number:
-
503S18
-
Product name:
-
swing barrier gate
-
Material:
-
304 Stainless Steel
-
Keyword:
-
Barrier Gates Turnstile
-
Type:
-
swing turnstile
-
Size:
-
1500mm x135mm x980mm
-
Average lifespan:
-
5 million times
-
Channel width standard channel:
-
600mm
-
Power supply:
-
AC100~265V / 50HZ±10%
-
switch time:
-
0.5-60 seconds, adjustable
-
Application:
-
Security Access Control Management

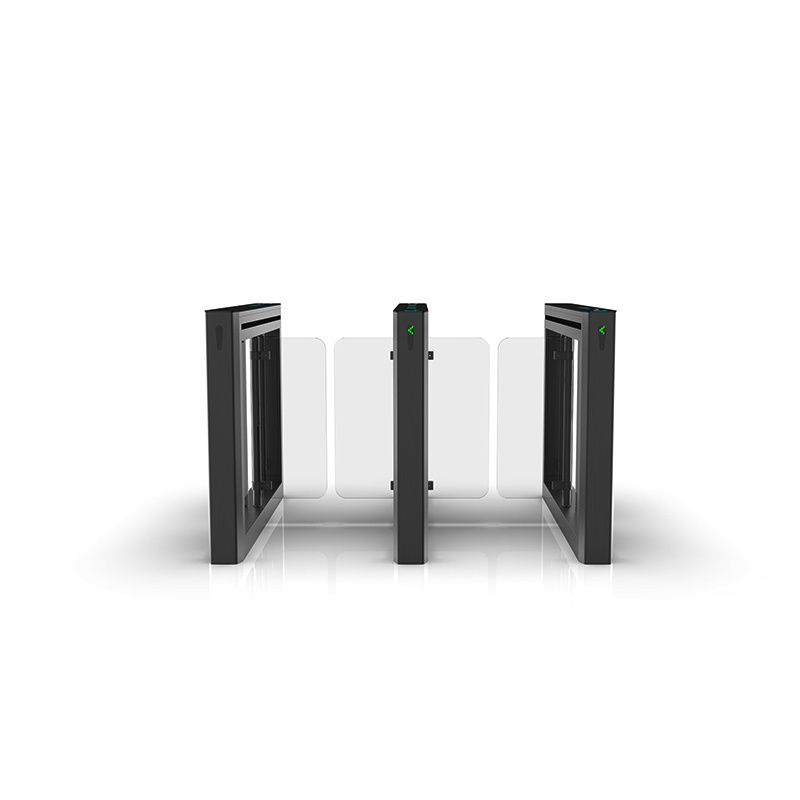

Products Description
The latest swing gate product is made of 304 stainless steel, with a beautiful and elegant appearance, rust prevention, and durability. And standard electrical interfaces are used externally, which can integrate card swiping authentication, QR code authentication, facial recognition, etc. on this device, providing a civilized and orderly way of passage for personnel entering and exiting, while also preventing illegal personnel from entering and exiting. In addition, the system has specially designed a power outage and opening function that meets the fire protection requirements. In case of emergency, it ensures that the passage is unobstructed and facilitates timely evacuation of personnel.
Product Features
*Equipped with dual anti pinch function, infrared detection detects someone in the middle and will not close the brake. When walking away, it will automatically close. When encountering obstacles during the process, it will rebound or within the specified time, the motor will automatically stop working with minimal force. At the same time, an alarm signal will be issued, and when encountering obstacles, it will rebound automatically to stop this action, ensuring the safety of personnel passage;
*Anti retrograde function, effectively preventing unauthorized personnel from passing through;
Anti tailgating function, allowing unauthorized personnel to follow predecessors into authorized channels, effectively blocking the latter;
*Unique anti condensation treatment and unique protective treatment around the perimeter greatly reduce the generation of condensation;
*The sliding track design reduces installation difficulty, simplifies maintenance, increases efficiency, and reduces maintenance costs;
*Integrated wiring harness handling makes maintenance more convenient, making it easier to quickly identify fault points in case of problems and reducing troubleshooting time.
Specification
|
product name
|
swing gate
|
|
Power supply voltage
|
AC100~265V/50HZ ± 10%
|
|
Working environment temperature
|
-15 ℃~70 ℃
|
|
Relative humidity
|
≤ 90%, anti condensation
|
|
Rated power
|
45W
|
|
Input interface
|
relay switch signal/serial port RS232 communication signal
|
|
Operating speed
|
Normally closed mode ≤ 35 times/minute, normally open mode ≤ 45 times/minute
|
|
Safe mode
|
The swing arm automatically opens when powered off, and automatically closes when powered on
|
|
Average lifespan
|
≥ 5 million times
|
|
Channel width
|
standard channel 600mm
|
|
Door material
|
acrylic/stainless steel
|
|
product dimensions
|
1500mm x 135mm x 980mm
|
|
switch time
|
1-60 seconds, adjustable
|
Usage scenario
