Quick Details
-
Brand:
-
Cangzhou Zhonghe
-
Model:
-
customized
-
Core Components:
-
Waycovers
-
Product Name:
-
CNC Milling Machine Protection Cover
-
Feature::
-
High speed and smooth
-
Application:
-
Machine tool guide rail protection
-
Color:
-
Silver or customized
-
Advantages:
-
Corrosion resistance
-
Connecting plate::
-
Iron Plate
-
Protective::
-
Protect Slide way Bellow Cover
-
Place of Origin:
-
Hebei China (Mainland)
-
Resist::
-
High temperature resistance
-
Service life::
-
Moth than 2 years
Quick Details
-
Brand Name:
-
Zhonghe
-
Material:
-
Stainless steel 201
-
Applicable Industries:
-
CNC Machine
-
Brand:
-
Cangzhou Zhonghe
-
Model:
-
customized
-
Core Components:
-
Waycovers
-
Product Name:
-
CNC Milling Machine Protection Cover
-
Feature::
-
High speed and smooth
-
Application:
-
Machine tool guide rail protection
-
Color:
-
Silver or customized
-
Advantages:
-
Corrosion resistance
-
Connecting plate::
-
Iron Plate
-
Protective::
-
Protect Slide way Bellow Cover
-
Place of Origin:
-
Hebei China (Mainland)
-
Resist::
-
High temperature resistance
-
Service life::
-
Moth than 2 years

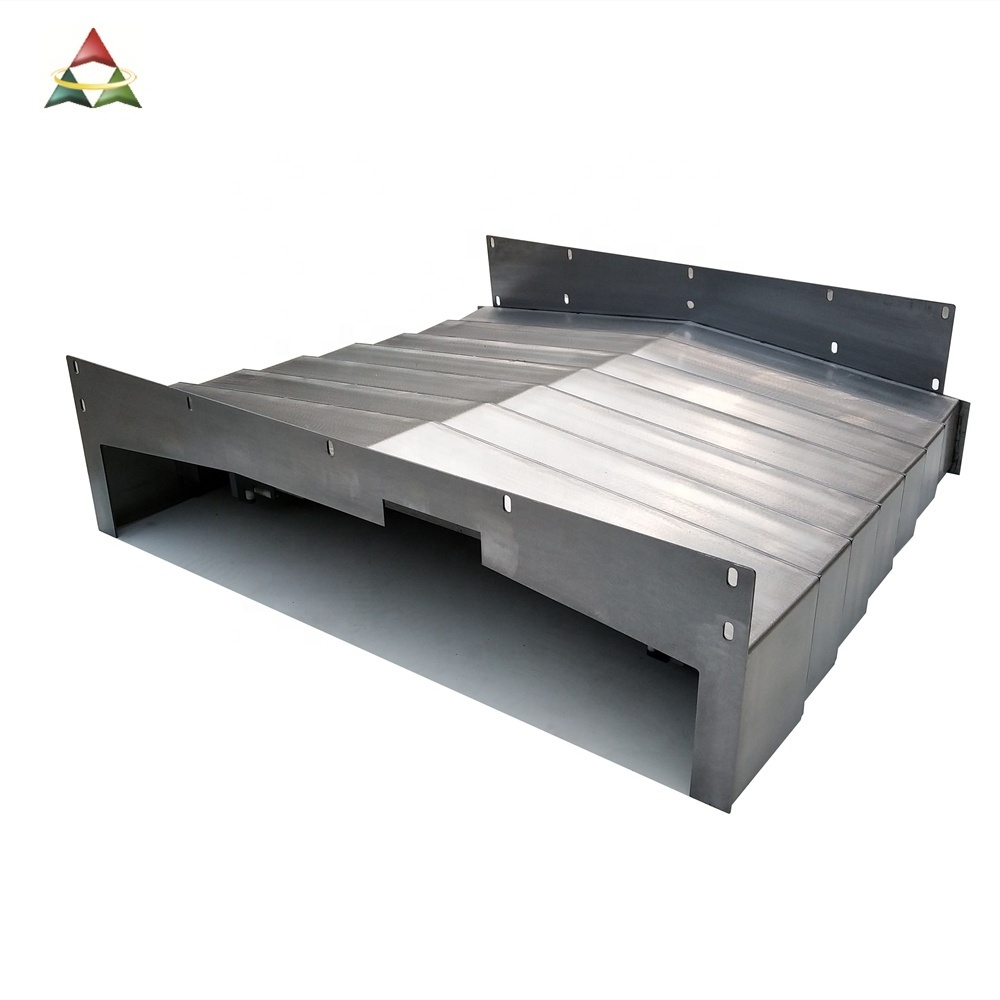

Customized Flexible Telescopic Steel Cover New Design Protective Guide Way A3 Steel Cover CNC Milling Machine Protection Cover
CNC Milling Machine Protection Cover, which reduce sideways wearing, thus maintaining the accuracy of the machines. The proposed selection is extremely popular for protecting columns, spindles, ball screws and shaft, by avoiding the accidental risk. Due to the rugged construction and longer functional Way .
Specifications:
· Type: High-speed telescopic covers.
· Travel length up to 30 m.
· Guide way width up to 3500 mm.
· Customi z ed solutions.
· High-Speed Cover Material: Rollers, Nylon/ Brass shoes
Features:
· Corrosion resistance
· Tough in construction
· Longer service life
· Good tensile strength
· Durable
1. We can produce according to the drawings you provide.
2. If there is no drawing, we can also design the drawing for you according to the size you measured.
3. Or we provide drawings and you fill in the dimensions.
Design data for Steel telescopic cover
|
Code |
Description |
Date |
Remarks |
Code |
Description |
Date mm |
Remarks |
|
Le |
Length after drawing |
|
|
Bs |
Contact supporting width |
|
|
|
Lz |
Length after compression |
|
|
Bm |
Slider supporting width |
|
|
|
Lt |
Travel range |
|
|
α°β° |
Bow-shaped dip |
|
|
|
B |
Width of guide |
|
|
n |
Estimated number of folds |
|
|
|
Bc |
Shield width |
|
|
δ |
Thickness of steel plate |
|
Pre-selected by users |
|
H |
Toltal height of the shield |
|
|
|
Assembing hole |
|
By user |
|
H1 |
Side height og guide |
|
|
Steel plate mat’l |
1Gr13 |
2Cr13 |
By user |
|
H2 |
Upper part height of shield |
|
|
Supporting manner |
Pulley |
Slidingpiece |
By user |
|
H3 |
Iustallation position width |
|
|
Compount malline’s type |
|
|
|
|
H4 |
Height of assembing plate |
|
|
Entrusting party |
|
|
|
|
H5 |
Height of contact rollar |
|
|
Contact person |
|
Tel |
|
|
Note:1.The endusers select data and materials mentioned above and our company will talle care of the fabrication and dsign work. 2.If endusers have special requirements for shield type,please cet as know and we can achive for them. 3.One form for type of shield. |
|||||||
CNC Milling Machine Protection Cover is mainly used in boring machine, milling machine, drilling machine, planer and other large-scale machine tools, effectively prevent iron filings.
Products are generally packed in cartons, wooden boxes or pallets. You can choose the one that suits you best.
1. Are you a trader or manufacturer?
We are manufacturer, we have our 100% self-owned factory in Cangzhou. so we can ensure low price and high quality products, skilled designer & engineers custom made product as per customers’ concepts/ideas.
2. Can you send us samples for testing?
Yes, samples in small quantity would be free of charge, but the freight should be paid in advance or freight collect. Quality of the products you’ll purchase would be the same as that of samples.
3. What’s your payment terms?
We accept most payment methods such as T/T, L/C at sight, Western Union and Paypal.
4. How about the delivery time?
It depends on your order item and quantity. Usually within 3 days for stock goods, 7-10 days for customized products after receiving the prepayment or relevant L/C.
5. What’s the shipping way?
For small cargo order, we can send goods by TNT, DHL, or Fedex express which we have discount. For bigger quantity order, we will arrange boat or air shipment according to client’s demands.
6. Could you print on the products as per our requests?
Yes, we could print images or words on the products, such as your logo, brand ets, if you buy in bulk.
