Quick Details
-
Top Diameter:
-
Customized
-
Bottom Diameter:
-
Customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DKJL
-
Model Number:
-
clay crucible
-
product name:
-
graphite crucible
-
Apparent Porosity:
-
≤30%
-
Cold Crushing Strength:
-
8.55Mpa
-
SiC content:
-
20-40%
-
Max service Temp.:
-
1500 degree C
-
Bulk Density:
-
≥1.71g/cm3
-
purpose:
-
graphite crucible for melting metals
-
Size:
-
different size avaliable
-
color:
-
Black
-
Working temperature:
-
1200-1500 degree
Quick Details
-
Type:
-
Refractory
-
Application:
-
Smelting and casting
-
Height:
-
Customized
-
Top Diameter:
-
Customized
-
Bottom Diameter:
-
Customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DKJL
-
Model Number:
-
clay crucible
-
product name:
-
graphite crucible
-
Apparent Porosity:
-
≤30%
-
Cold Crushing Strength:
-
8.55Mpa
-
SiC content:
-
20-40%
-
Max service Temp.:
-
1500 degree C
-
Bulk Density:
-
≥1.71g/cm3
-
purpose:
-
graphite crucible for melting metals
-
Size:
-
different size avaliable
-
color:
-
Black
-
Working temperature:
-
1200-1500 degree

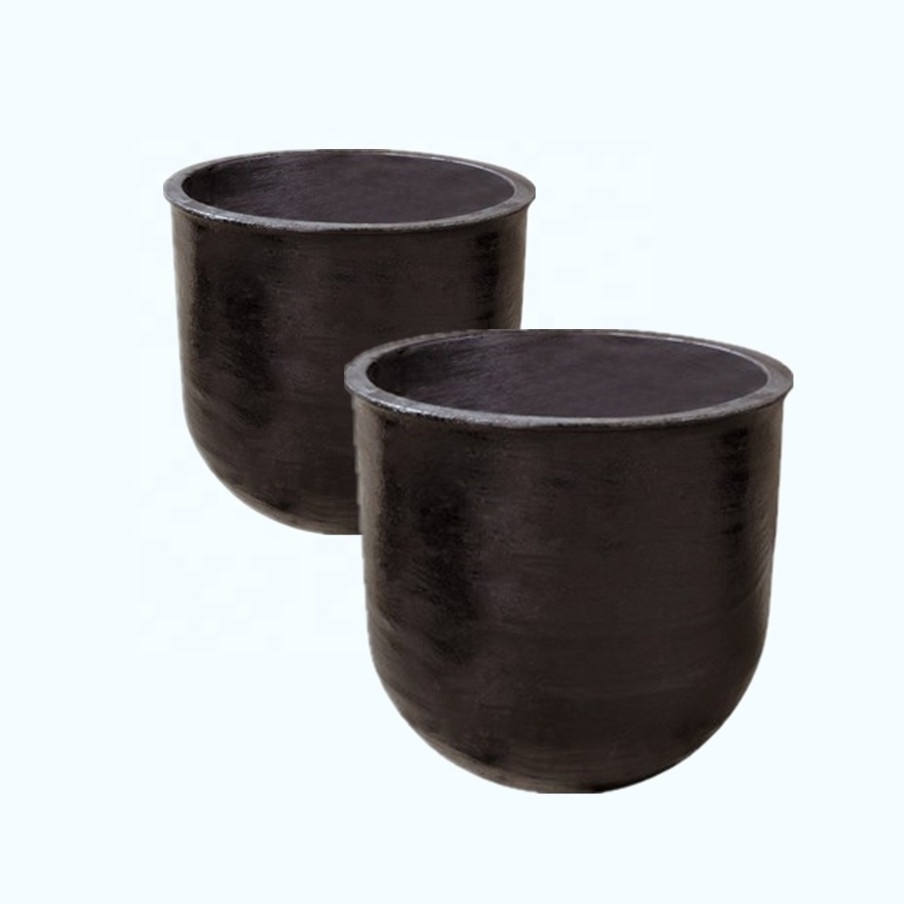

Refractory clay graphite crucible for melting metals with good price
Clay graphite crucible is a utensil or melting tank vessels which use graphite powder and clay as main raw material, made through pressing in different molds (according to different needs) and firing process.
clay g
raphite crucible
a
dvantages:
1.High strength (Flexural strength: 30Mpa Compressive strength: 55Mpa with rising of temperature, graphite strength increases)
2.High temperature resistance (graphite material melting point is 3850±50C)
3.Good heat shock resistance
4.Anti-oxidation,
5.Strong corrosion resistance to acid and alkali liquid
6.Abrasion resistance,
7.Good conductivity and thermal efficiency.
8.Excellent chemical stability
9.Small thermal expansion coefficient.
10.Easy to clean
clay g
raphite crucible
application:
Graphite crucible, with its special advantages and Plasticity, is widely used in the smelting area, e.g. gold smelting, silver smelting, aluminum smelting, and cooper smelting in metallurgy, casting, machinery, chemical and other industries.
clay g
raphite crucible
operating Notice:
The crucible should be stocked in the dry situation.
Carry the crucible carefully
Warm the crucible in the drying machine or near the furnace. The warming temperature should be up to 500℃.
The crucible should be put under the furnace mouth flat.
When put the metal into the crucible, you should take the crucible capacity as your reference. If the crucible is too full,
it will be damaged by expansion.
The clamps shape need as that of crucible. Avoid the concentrate stressed destroy of the crucible.
Clean the crucible regularly and gently.
The crucible should be put in the center of the furnace and leave some distance between the crucible and furnace.
Turn the crucible once a week and this will help prolong the service life.
The flame should not touch the crucible directly.
clay g raphite crucible te chnical index
|
Standard parameter |
Test result |
||
|
r efractoriness ≥ |
1630℃ |
r efractoriness ≥ |
1635℃ |
|
Carbon content ≥ |
38% |
Carbon content ≥ |
41.46% |
|
apparent porosity ≤ |
35% |
apparent porosity ≤ |
32% |
|
bulk density ≥ |
1.6g/cm3 |
bulk density ≥ |
1.71g/cm3 |
melting pot crucible Physical propertie s
|
Specifications |
Unit |
Value |
|
Bulk Density |
g/cm 3 |
1.65-1.80 |
|
Compressive Strength * |
MPa |
20-55 |
|
Bending Strength * |
MPa |
10-30 |
|
Elastic Modulus * |
GPa |
9-21 |
|
Specific Resistance * |
u . Ω . m |
5.0-15.0 |
|
Ash |
% |
0.05-0.5 |
melting pot crucible sp ecifications
|
Specifications |
Top outer diameter |
height |
|
1# |
70 |
78 |
|
2# |
87 |
108 |
|
3# |
102 |
120 |
|
4# |
112 |
131 |
|
5# |
121 |
141 |
|
6# |
121 |
154 |
|
8# |
137 |
169 |
|
10# |
148 |
186 |
|
12# |
156 |
192 |
|
16# |
164 |
212 |
|
20# |
183 |
232 |
|
25# |
196 |
250 |
|
30# |
208 |
269 |
|
40# |
239 |
292 |
|
50# |
257 |
314 |
|
60# |
270 |
327 |
|
70# |
280 |
360 |
|
80# |
296 |
336 |
|
100# |
321 |
379 |
|
120# |
345 |
388 |
|
150# |
362 |
429 |
|
200# |
395 |
483 |
|
250# |
430 |
557 |
|
300# |
455 |
610 |
|
400# |
526 |
661 |
|
500# |
531 |
713 |
|
600# |
580 |
600 |
|
750# |
600 |
650 |
|
800# |
610 |
730 |
|
1000# |
620 |
800 |
|
1500# |
720 |
800 |
|
2500# |
875 |
1000 |
clay g
raphite crucible
clay g raphite crucible Package: wooden case.
We also provide OEM service; the package can be designed according to your requirements.
clay g raphite crucible Shipping: By vessel or by train from any Chinese port, Samples can be delivered by International express.
1. Timely response,
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
2. Free sample
melting pot crucible Sample and trial order is accepted for the quality evaluation.
3. Strict quality control
Arrange production on time and control quality strictly.
4. Shorter delivery time.
Book the earliest vessel or plane to guarantee the delivery time.
5. Professional Services
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
Warm and considerable after-sale service
