- Product Details
- {{item.text}}
Quick Details
-
Applicable Material:
-
candy
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JIANFENG
-
Voltage:
-
AC380V/220V
-
Dimension(L*W*H):
-
10000*2500*2000 mm
-
Weight (KG):
-
3000
-
Power (kW):
-
4.5 KW
-
Name:
-
counting packing line
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Keywords:
-
tablet production line
-
Packing speed:
-
50-90 bottles/min
-
Suitable for:
-
Bottles jar barrel
-
Power supply:
-
AC380V/220V 50/60HZ 3Phase 4.5 KW (Customized)
-
Model Number:
-
JF-A160-16
-
Package:
-
Wooden Pallets
-
Material:
-
Stainless Steel 304/316L
Quick Details
-
Capacity (bottle/min):
-
50 - 90 bottle/min
-
Bottle Capacity (pcs/bottle):
-
2-9999 pcs/bottle
-
Capacity (pcs/h):
-
55000 pcs/h
-
Applicable Material:
-
candy
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JIANFENG
-
Voltage:
-
AC380V/220V
-
Dimension(L*W*H):
-
10000*2500*2000 mm
-
Weight (KG):
-
3000
-
Power (kW):
-
4.5 KW
-
Name:
-
counting packing line
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Keywords:
-
tablet production line
-
Packing speed:
-
50-90 bottles/min
-
Suitable for:
-
Bottles jar barrel
-
Power supply:
-
AC380V/220V 50/60HZ 3Phase 4.5 KW (Customized)
-
Model Number:
-
JF-A160-16
-
Package:
-
Wooden Pallets
-
Material:
-
Stainless Steel 304/316L
Why Choose Us
Product Description
|
Model
|
JF-A160-16
|
|
Name
|
Electronic grain counting bottling packaging production line
|
|
Rate of production
|
50-90 bottles/min(It depends on the bottle size、filling quantity and the tablet size)
|
|
Single bottling capacity
|
2-9999 pcs/bottle
|
|
Common type
|
tablets, soft and hard capsules and other solid tablets
|
|
Specifications
|
BelowФ20 tablet、000~5# capsule、soft capsule、 Ф5.5-Ф20 tablet、special-shaped tablet、sugarcoated tablet
|
|
Bottle diameter
|
φ20~φ100mm
|
|
Bottle height
|
30-150 mm,30~240mm
|
|
Power supply
|
220V/50HZ
|
|
Gas Consumption
|
1.0 m3/min
|
|
Power
|
4.5 Kw
|
|
Overall dimension(L*W*H)
|
10000mm*2000mm*2350mm
|
|
Machine weight
|
About 3000 Kg
|
Medium speed line

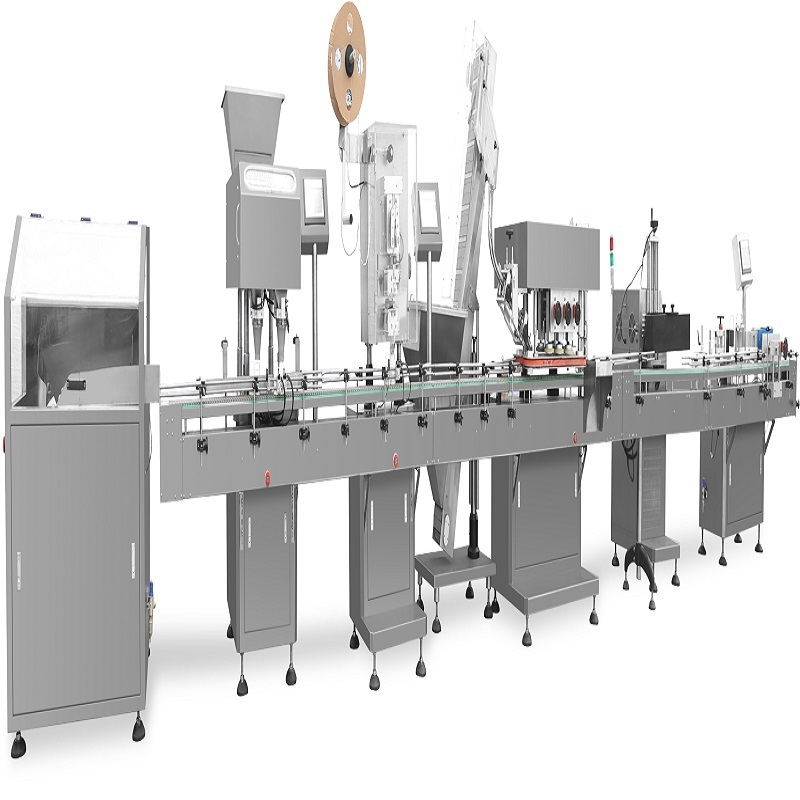

JF-A160-16 Grain counting bottling packaging linkage production line is made up of JF-A160 bottle unscramble、JF-16 electronic counting machine、JF-C120 automatic desiccant inserter(cotton inserter or paper inserter)、JF-D902 capping screwing machine、JF-2 induction sealer、JF-201 round bottle side face labler (coding machine).
1.Wide applicability
, with our original anti-dust technology, it can be used for tablets( including abnormal tablets), capsules, gels( including abnormal gels, transparent gels and opaque gels) pearls.
2.High-intelligentce:
intelligent design of each machine with interactive operating multi-language panel. Can save 10~20 kinds of different operating parameters and easy to load for different products. Self-diagnose ,displays errors and make alarms. Well cooperation between each machine and in the whole line.
3.High efficiency.
Take purposed to operate, easy to operate, to adjust, to clean and to maintain. Low working cost, low maintain cost. 3 workers will be enough to operate.
4.Small in size
（ innerpackingroom30㎡max) and low cost in power.
5. Control system:
adopting PLC and touch screen control.
Specification
|
item
|
value
|
|
Applicable Material
|
tablet,candy
|
|
Capacity (bottle/min)
|
50bottle/min - 90bottle/min
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
Ordinary Product
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
|
|
Bottle Capacity (pcs/bottle)
|
2-9999 pcs/bottle
|
|
Condition
|
New
|
|
Place of Origin
|
China
|
|
|
Jiangsu
|
|
Brand Name
|
JIANFENG
|
|
Usage
|
Tablet
|
|
Voltage
|
AC380V/220V
|
|
Dimension(L*W*H)
|
10000*2500*2000 mm
|
|
Weight (KG)
|
3000
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
Easy to Operate high accuracy competitive price
|
|
Power (kW)
|
4.5 KW
|
|
Applicable Industries
|
Manufacturing Plant, Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops, Other
|
|
Showroom Location
|
None
|
|
Name
|
tablets counting packing line
|
|
After-sales Service Provided
|
Engineers available to service machinery overseas
|
|
Keywords
|
tablet production line
|
|
Packing speed
|
50-90 bottles/min
|
|
Suitable for
|
Bottles jar barrel
|
|
Usage
|
tablet into bottles
|
|
Power supply
|
AC380V/220V 50/60HZ 3Phase 4.5 KW (Customized)
|
|
Model Number
|
JF-A160-16
|
|
Package
|
Wooden Pallets
|
|
Material
|
Stainless Steel 304/316L
|
