epe foam vegetable net bag machine/fruit package net extruder machine
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DEYI
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
8m*1.3m*1.7m
-
Weight:
-
4000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Fully automatic Plastic Net Making Machine
-
Raw material:
-
LDPE, Polythene,PE
-
Usage:
-
Net
-
Color:
-
Customized
-
Capacity:
-
17-22KG/H
-
Automatic Grade:
-
FULLY
-
Power:
-
50kw
-
Motor:
-
AC Motor
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
38:1
-
Screw Speed (rpm):
-
12 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DEYI
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
8m*1.3m*1.7m
-
Weight:
-
4000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Fully automatic Plastic Net Making Machine
-
Raw material:
-
LDPE, Polythene,PE
-
Usage:
-
Net
-
Color:
-
Customized
-
Capacity:
-
17-22KG/H
-
Automatic Grade:
-
FULLY
-
Power:
-
50kw
-
Motor:
-
AC Motor
Product Description

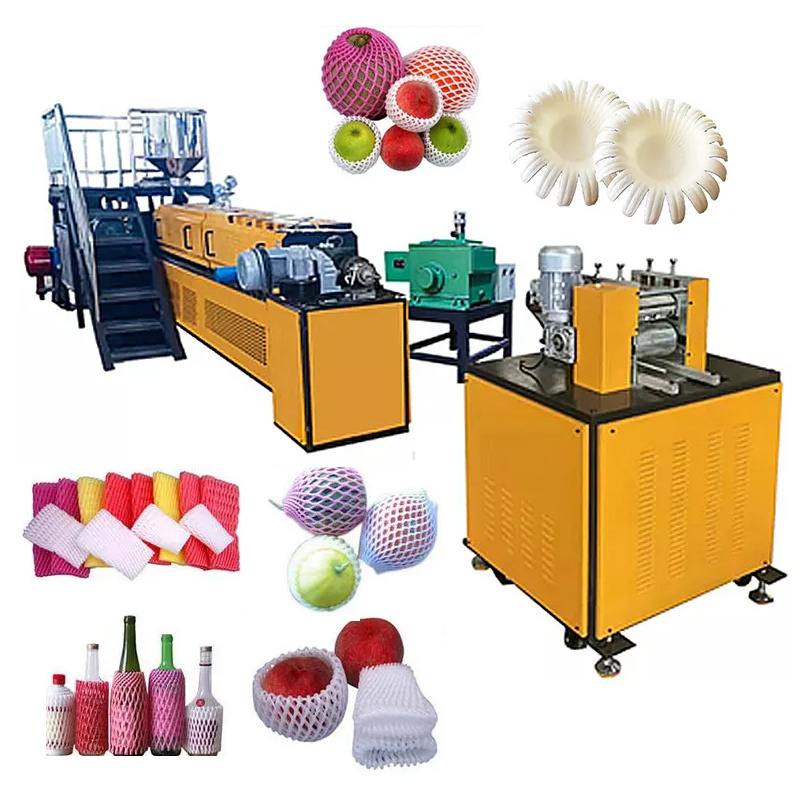

EPE foam vegetable net bag machine PE foam net fruit cover extruding machine fruit wrap production machine
EPE foam net is a kind of new soft packing material. It is widely used for the package of glass products, precision, instrument, and various kinds of fruits. Plastic epe foam packing net extrusion production line for fruit mainly used the production of EPE sheet material, after thawing the LDPE resin mixed with butane gas, talcum powder, anti-shrinkage agents and other agents through the extruder and foaming from the die and die lip, then after setting ring fixed to the sheet size, the final product take-up by the roller.
Machine Parameter
|
Total power
|
(About) 50 kw
|
|
Main motor
|
15KW
|
|
Cooling water
|
80L/H
|
|
Speed of the manufacture line
|
10—60m/min
|
Detailed information
Foaming Die Head Unit
Model: rotating gear die
⑵Die Head size: 2 sets (customer decided size)
⑶Material: carbon alloy steel
⑷Heating area: 1 pc
⑸Heating method: heater
⑹Blower: 180W×2 pcs
⑺Die motor: 3KW
⑻Inverter control motor
⑵Die Head size: 2 sets (customer decided size)
⑶Material: carbon alloy steel
⑷Heating area: 1 pc
⑸Heating method: heater
⑹Blower: 180W×2 pcs
⑺Die motor: 3KW
⑻Inverter control motor
Haul-off and cutting unit
Model: rotary knife type
Haul-0ff motor (adjustable):0.75KW
Cutting motor (adjustable):0.75KW
Haul-off and cutting driven type: motor drives gear box, controlled by inverter.
Count control: meter controller can be preset alarming
Haul-0ff motor (adjustable):0.75KW
Cutting motor (adjustable):0.75KW
Haul-off and cutting driven type: motor drives gear box, controlled by inverter.
Count control: meter controller can be preset alarming
Talcumpowder injection unit
It adopts Italy technology. Double screw substitute single screw, Solve the poor mobility features of talcum powder. The motor is controlled by inverter to make talcum powder injection accurate and stable.
Talcumpowder injection unit
With Explosion-proof motors
Anti-shrinking Agent Injection
Unit
Anti-shrinking agent: glycerin monostearate（GMS）
⑵Metering pump style: high pressure measure pump, single pillar pistonMethod of heating: belt heater
⑻Heating zone: 2 zones
⑼Detector: 2 detecting point
⑵Metering pump style: high pressure measure pump, single pillar pistonMethod of heating: belt heater
⑻Heating zone: 2 zones
⑼Detector: 2 detecting point
Packaging And Shipping
Related Recommendation
LONGKOU DEYI MACHINERY COMPANY is expertized in manufacturing EPE foam machine, the following is related recommendation and help you learn more about our machine.
