Quick Details
-
Model Number:
-
RY-482421GL Pro
-
Place of Origin:
-
Guangdong, China
-
Product model:
-
RY-482421GL Pro
-
Power supply port:
-
1 to 24 ports support network power supply
-
Voltage output:
-
48V-52V
-
Voltage input:
-
AC110-240V 50/6OHZ
-
Single port power:
-
15.4W
-
Total PoE power:
-
≤ 350W
-
PoE protocol:
-
IEEE 802.3af
-
Power supply line sequence:
-
1/2+, 3/6-
-
Weight:
-
3 kg
-
Size:
-
270 * 185 * 45mm (L * W * H *)
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Brand Name:
-
Fujie
-
Model Number:
-
RY-482421GL Pro
-
Place of Origin:
-
Guangdong, China
-
Product model:
-
RY-482421GL Pro
-
Power supply port:
-
1 to 24 ports support network power supply
-
Voltage output:
-
48V-52V
-
Voltage input:
-
AC110-240V 50/6OHZ
-
Single port power:
-
15.4W
-
Total PoE power:
-
≤ 350W
-
PoE protocol:
-
IEEE 802.3af
-
Power supply line sequence:
-
1/2+, 3/6-
-
Weight:
-
3 kg
-
Size:
-
270 * 185 * 45mm (L * W * H *)

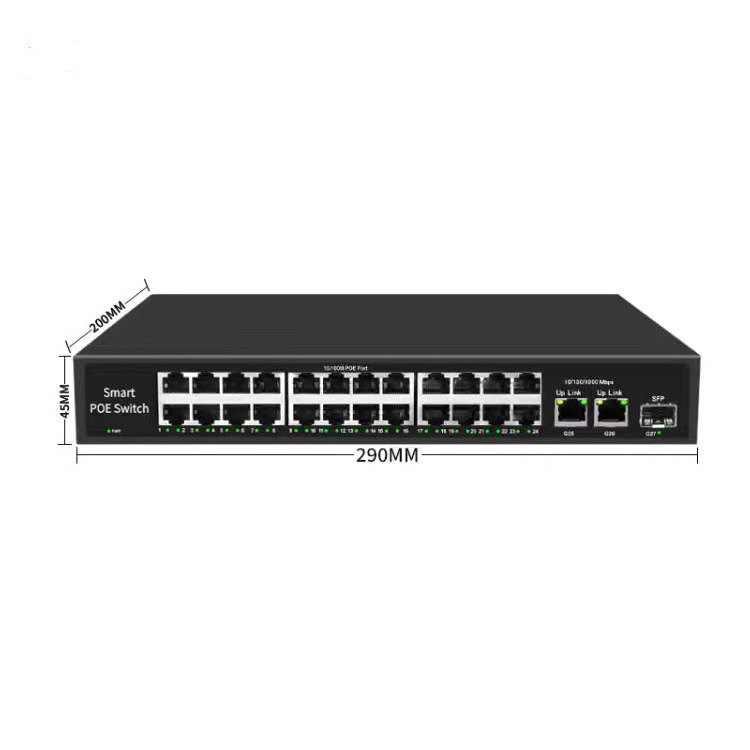

Network Passive Poe Switch For Poe Nvr Poe Camera Cctv System 16 Port 24 Port
| Product model | RY-482421GL Pro |
| Network transmission distance | ≤ 150 meters |
| Working temperature | - 10 ° - 55 ℃ |
| Backplane bandwidth | 20Gbps |
| MAC address | MAC address table of 6K |
Difference between intelligent POE and non-intelligent POE
Intelligent POE switch
The camera can be directly connected to the intelligent POE switch with the network cable.
Commonly known as the standard POE switch, it is applicable to cameras supporting POE
power supply module
Non-intelligent POE switch
Need to add POE separator for use
Non-intelligent POE switch, also known as non-standard POE switch, is selected for
cameras that do not support POE power supply module
Use of separator
