Quick Details
-
Dimension(L*W*H):
-
according the model
-
Weight:
-
10000 KG
-
Marketing Type:
-
new product 2024
-
Name:
-
pto driven stone jaw crusher for tractor
-
The Machines classification:
-
jaw crusher
-
Color:
-
Iron Grey
-
Installation:
-
Under Technical Guidance
-
Max feeding size:
-
200-1020mm
-
Spare parts supply:
-
Lifelong Provide
-
Test&Installation:
-
Senior Professional Engineers Assigned
-
After-sale service:
-
Problems Within 48 Hours
-
Quality:
-
Advanced Technology
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Application:
-
stone , ore
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SBM
-
Dimension(L*W*H):
-
according the model
-
Weight:
-
10000 KG
-
Marketing Type:
-
new product 2024
-
Name:
-
pto driven stone jaw crusher for tractor
-
The Machines classification:
-
jaw crusher
-
Color:
-
Iron Grey
-
Installation:
-
Under Technical Guidance
-
Max feeding size:
-
200-1020mm
-
Spare parts supply:
-
Lifelong Provide
-
Test&Installation:
-
Senior Professional Engineers Assigned
-
After-sale service:
-
Problems Within 48 Hours
-
Quality:
-
Advanced Technology
-
After-sales Service Provided:
-
Video technical support

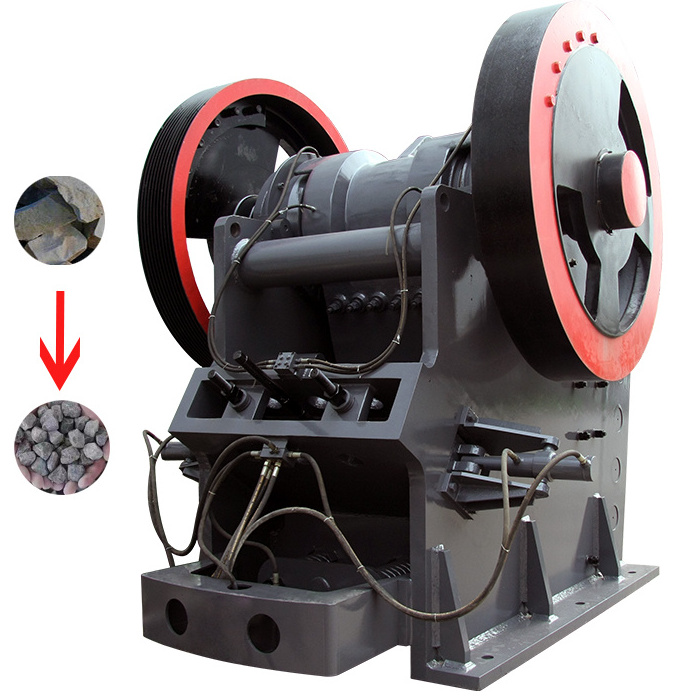

Scale Sale Philippines Pto Driven Stone Jaw Crusher For Tractor
Scale Sale Philippines Pto Driven Stone Jaw Crusher For Tractor ---Parameters:
| Jaw crusher Model | Feed Opening (mm) | Max Feeding (mm) | Discharge Opening (mm) | Capacity (t/h) | REV (r/min) | Power (kw) | Motor Model | Machine Size (mm) |
| PEW250×1000 | 250×1000 | 220 | 20-40 | 15-50 | 330 | 6-37 | Y250M-6/37 | 1400×1850×1310 |
| PEW250×1200 | 250×1200 | 220 | 20-40 | 20-50 | 330 | 6-37 | Y250M-6/37 | 1400×2050×1310 |
| PEW400×600 | 400×600 | 350 | 35-85 | 15-70 | 250 | 6-37 | Y250M-6/37 | 1920×1460×1840 |
| PEW760 | 760×1100 | 620 | 75-200 | 150-350 | 270 | 6-110 | Y315L1-6/110 | 2600×2500×2200 |
| PEW860 | 860×1100 | 720 | 100-225 | 200-500 | 240 | 6-132 | Y315L2-6/132 | 3300×2320×3120 |
| PEW1100 | 1100×1200 | 930 | 150-275 | 300-650 | 210 | 8-185 | Y355L1-8/185 | 4140×2660×3560 |
The line design of 40-60 t/h - Small stone crushing line is simple for our sales manager with so many quarry customers/ clients.
The crushing line can be widely used in mine ore mining, construction buiding materials, chemistry industry, suitable for crushing quarry rocks and mineral ores such as iron ore, river stone, feldspar, basalt, dolomite, barite, limestone, slag, marble, quartz, granite, cement, clinker, coal and so on. Stone crusher machines are featured with large crushing rate, high yield, equal product size, simple structure, reliable operation and easy maintenance, economic operating costs etc.
Here is a sample of 40-60 t/h - Small stone crushing line for limestone crushing process.
List of all typical equipment and products
| NO. | Equipment | Model | Motor(KW) | Number |
| I | Hopper | LC3000X4000 | 1 | |
| II | Vibrating Feeder | GZD-300×90 | 2.2 * 2 | 1 |
| III | Jaw Crusher | PE-500×750 | 55 | 1 |
| IV | Impact Crusher | PF-1010 | 55 | 1 |
| V | Vibrating Screen | 3YA1860 | 22 | 1 |
| VI | Belt Conveyor | 800mm | 5 | |
| VII | Packaging Machine | PM60 | 30 | 1 |
Ways of Packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
