Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KCMC
-
Model Number:
-
CXLWGY
-
Product Name:
-
Liquid Turbine flowmeter
-
Accuracy:
-
1.0%
-
Output:
-
4-20mA
-
Communication:
-
Modbus RS485
-
Display:
-
LCD Digital
-
Model:
-
CXLWGY
-
Power supply:
-
220VAC/ 24VDC
-
Flow range:
-
0~10m/s
-
Protection grade:
-
IP65
-
Working Pressure:
-
1.6Mpa
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters, Turbine meters, Digital
-
Material:
-
SS304, SS316
-
Warranty:
-
12 months
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KCMC
-
Model Number:
-
CXLWGY
-
Product Name:
-
Liquid Turbine flowmeter
-
Accuracy:
-
1.0%
-
Output:
-
4-20mA
-
Communication:
-
Modbus RS485
-
Display:
-
LCD Digital
-
Model:
-
CXLWGY
-
Power supply:
-
220VAC/ 24VDC
-
Flow range:
-
0~10m/s
-
Protection grade:
-
IP65
-
Working Pressure:
-
1.6Mpa
Products Description
Working Principle
CXLWGY series turbine flowmeter is optimized design with advanced technology of domestic and overseas flow meters.And it is the new generation turbine flowmeter with the characters of simple structure,light and handy,high precision,good repeatability,sensitive response,easy installation and maintenance.

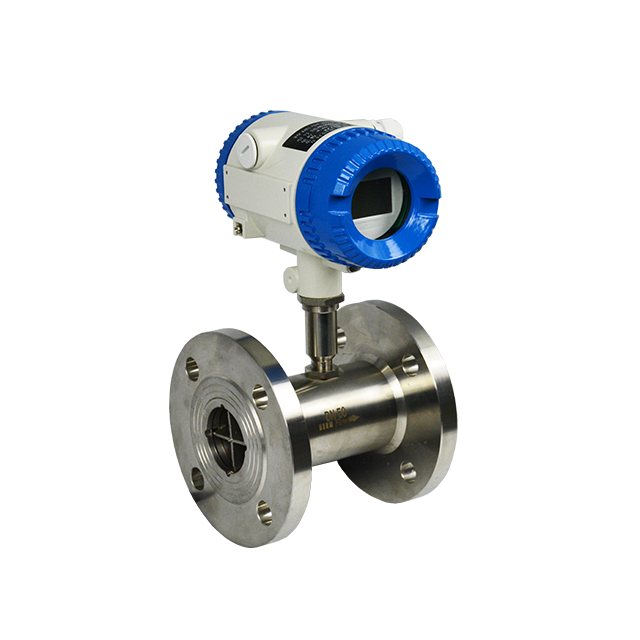

Integrated flange connected flowmeter
Split flange connected flowmeter
Clamp type connected flowmeter
|
Implementation standards
|
|
Liquid Turbine flowmeter sensor(JB/T9246~19999)
|
|
|
|||
|
Caliber&connection
|
|
Thread connection: DN4,6,10,15,20,25,32,40;
Flange connection:DN15,20,25,32,40,50,65,80,100,125,150,200; Clamp connection: DN4, 6, 10, 15, 20, 25, 32, 40, 50, 65, 80 |
|
|
|||
|
Accuracy
|
|
±1.0%
|
|
|
|||
|
Sensor material
|
|
SS304 stainless steel,SS316(L)stainless steel,etc.
|
|
|
|||
|
Working environment
|
|
Medium temperature:-20℃~+120℃
Ambient temperature:-20℃~+20℃ Relative humidity:5%~90% |
|
|
|||
|
Working power supply
|
|
DC24V, lithium battery,220Vac
|
|
|
|||
|
Signal output
|
|
Pulse ,4~20ma
|
|
|
|||
|
Communication output
|
|
RS485,HART
|
|
|
|||
|
Signal line interface
|
|
Basic type, Explosion proof type
|
|
|
|||
|
Protection level
|
|
IP65 or higher
|
|
|
|||
Product packaging
Each of our meter after factory calibration, according to different size do packaging, usually, below DN 150 mm flow meter will be used in paper carton packaging, above DN 150 mm flow meter will be used free of steam box packaging. We will ensure that each flow meter, safe to reach your hands.
