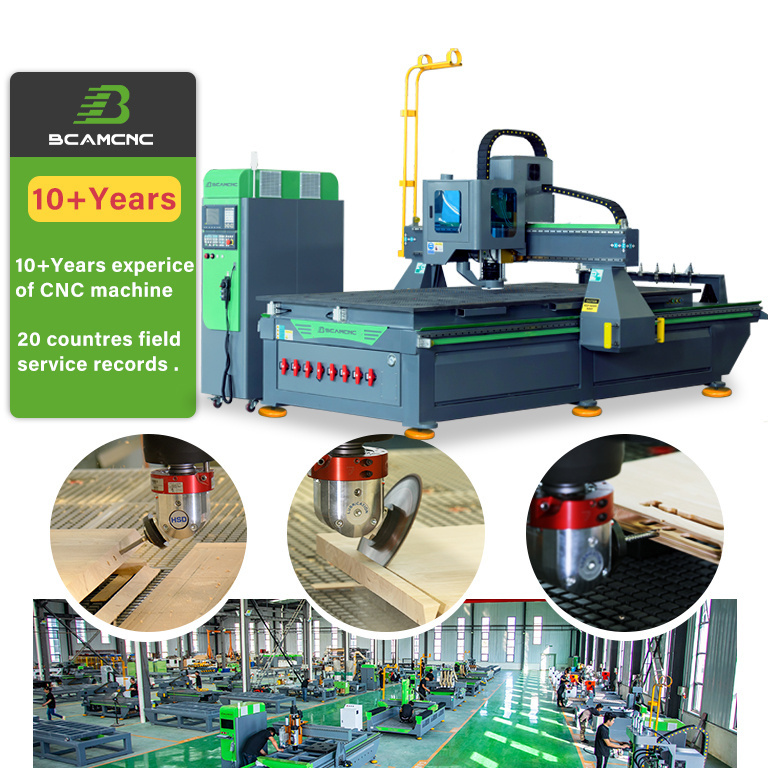

BCAM CNC 5 axis cnc router metal cutting pvc foam board cutting cnc router machine

BCAM CNC 5 axis cnc router metal cutting pvc foam board cutting cnc router machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $24999

≥5 Sets

US $21999

≥10 Sets

US $18999

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Positioning Accuracy (mm):: 0.02 mm

Travel (X Axis)(mm):: 1300 mm

Travel (Y Axis)(mm):: 2500 mm

Repeatability (X/Y/Z) (mm):: 0.02 mm

Spindle Motor Power(kW):: 9.5kw

Place of Origin:: Shandong, China

Brand Name:: BCAMCNC

Voltage:: 380V/220V

Dimension(L*W*H):: 3350*2450*2100

Power (kW):: 18

Weight (KG):: 2800

Product name:: BCAM CNC 5 axis cnc router metal cutting pvc foam board cutting

Keywords:: ATC Woodworking Cnc Router

Control system:: Syntec Control

Inverter:: Taiwan Delta Inverter

Software:: Ucancam / ArtCam/TYPE3/Power Mill

Driving system:: Japan Yaskawa Servo System

Table:: Vacuum Adsorption + T-slot

Working Voltage:: AC220V/AC380/50HZ/60HZ

Z axis transmission:: Tawain TBI Ball Screw Transmission

Feature:: High Efficiency

Quick Details

Working Table Size(mm):: 1300×2500

Machine Type:: CNC Router

Range of Spindle Speed(r.p.m):: 6000 - 24000 rpm

Positioning Accuracy (mm):: 0.02 mm

Travel (X Axis)(mm):: 1300 mm

Travel (Y Axis)(mm):: 2500 mm

Repeatability (X/Y/Z) (mm):: 0.02 mm

Spindle Motor Power(kW):: 9.5kw

Place of Origin:: Shandong, China

Brand Name:: BCAMCNC

Voltage:: 380V/220V

Dimension(L*W*H):: 3350*2450*2100

Power (kW):: 18

Weight (KG):: 2800

Product name:: BCAM CNC 5 axis cnc router metal cutting pvc foam board cutting

Keywords:: ATC Woodworking Cnc Router

Control system:: Syntec Control

Inverter:: Taiwan Delta Inverter

Software:: Ucancam / ArtCam/TYPE3/Power Mill

Driving system:: Japan Yaskawa Servo System

Table:: Vacuum Adsorption + T-slot

Working Voltage:: AC220V/AC380/50HZ/60HZ

Z axis transmission:: Tawain TBI Ball Screw Transmission

Feature:: High Efficiency

BCAM CNC 5 axis cnc router metal cutting pvc foam board cutting cnc router machine

Product Parameters

Parameters	Details
X,Y,Z Working Area	13002500200mm
Weight	2800kgs
Spindle Power	Italy HSD 9kw (could up to 9.5kw)
Fix method	Vacuum block
C axis+aggregate	Italy HSD C axis +Italy HSD aggregate
X,Y,Z Traveling Positioning Accuracy	±0.02/2000mm
Max. Rapid Travel Rate	80m/min
Max. Working Speed	60m/min
Command Language	G Code
Interface	USB,NETWORK
Software Compatibility	Option:Alpacam,Carbinets Version ,BCAMNESTTING, solidworks,etc.
Running Environment	Temperature: -20℃~45℃ Relative Humidity: 5%~75%

Safty active device.

Having our patented automatic safety protection device,the traditional safety device is a manual emergency button, the main difference lies in the automatic and manual,auto safty protection have better safty effect than traditional button .

Dust free system.

Dust-free device with our patent, traditional brush adsorption device, the main difference is our dust-free device can improve dust removal effect by 30% compared with the traditional brush dust removal device

Italy HSD aggregate.

Its main feature is to punch and mill grooves on the side, and to work with the vertical tool, complete the product processing at one time through automatic tool change, high precision, zero error

Vaccum block.

The vacuum suction hole is made of aviation aluminum alloy, and the suction block is seamlessly connected to the vacuum table of the machine, with good sealing and good adsorption effect on materials

Samples&Customer feedback

Here are some samples for wood and aluminum and acrylic ,it could be applied non-metal like wood ,mdf,acrylic,foam, packing box,foam ,stone and metal panel like aluminum and copper etc.

Here are some feedback from our customers ,our cnc router has been widely praised ,and many our customers have bought the machines from us for several times .

Certifications

After sales service

1.We have 3 years guarantee of the machine ,we could change the major parts for free(consumable parts like the tools are not included ) ,and we can offer you the consumable parts at an agency price when you need replacement within the warranty.
2.Our engineer could support you technology support to your country if necessary.
3.Our engineer could train you on at our factory for free.
4.Our engineer could service you 24 hours online by skype, yahoo,msn,QQ, or by cellphone,and could offer you online video help.
5.Even after the warranty ,we will still offer you online and video help for the whole life of the machine .Here are some pictures showing our engineers went to our customers' country to do local service .
