Ball Mill Machine Pug Mills For Ceramic Balls Beneficiation Ball Mill Machinery

Ball Mill Machine Pug Mills For Ceramic Balls Beneficiation Ball Mill Machinery

FOB Reference Price: Get Latest Price

≥1 Sets

US $9790

≥3 Sets

US $9390

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Grinding mill Finished size:: 35-325 Mesh (0.613-0.033 Mm)

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Sailong

Weight:: 9000 KG

Grinding mill Finished size:: 35-325 Mesh (0.613-0.033 Mm)

Product Description

Ball Mill is widely used in the manufacturing industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.

The equipment has the characteristics of stable operation, reliable operation, large production capacity and long service life.

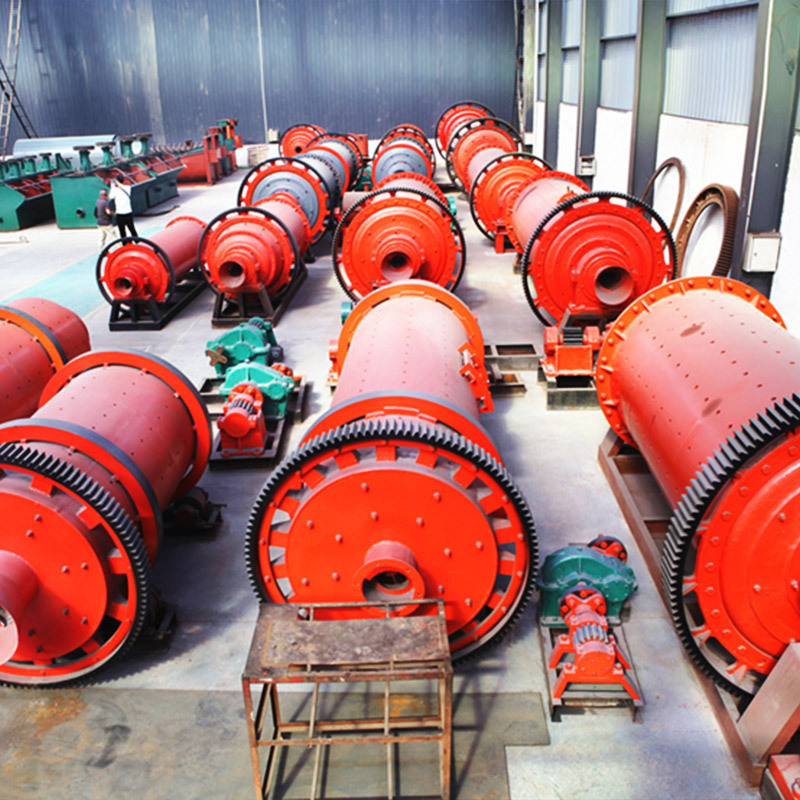

The ball mill is composed of main parts such as feeding part, discharging part, rotating part, transmission part (reducer, small transmission gear, motor, electric control). The hollow shaft is made of cast steel, the inner lining can be removed and replaced, the large rotary gear is processed by casting gear hobbing, and the cylinder is inlaid with a wear-resistant lining plate, which has good wear resistance. The machine runs smoothly and works reliably.

1. Strong adaptability

The ball mill has strong adaptability, can grind most materials and mix them uniformly, and can adapt to the operation in different environments.

2. Meet different needs

It can operate continuously, and the production capacity can reach more than 200 tons per hour, which meets the needs of modern industrial large-scale production.

3. Strong sealing

The ball mill equipment has a good sealing device, strong sealing, and can be operated under negative pressure to prevent dust from flying.

4. High wear resistance

The casting turning device is adopted, the hollow shaft is made of cast steel, the steel plate is planed, and the flanges at both ends of the cylinder are made of large CNC cylinder lathes.

5. Low energy consumption

The ball mill adopts a wave-type annular lining plate, which increases the contact surface between the ball and the ore,
strengthens the grinding effect, and has the ability to lift the ore, reducing energy consumption.

6. Long bearing life

The bearings are advanced in material, refined in the manufacturing process, which increases the service life by about 15% compared with the traditional bearings.

Model	Rotary speed (r/min)	Ball Weight (t)	Input size (mm)	Discharge size (mm)	Capacity (t/h)	Motor power (kw)	Weight (t)
Ф900×1800	39	1.5	≤20	0.075-0.89	0.8-2	18.5	4.6
Ф900×1800	39	2.7	≤20	0.075-0.89	1-4	22	5.6
Ф1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	12.8
Ф1200×4500	32	5	≤25	0.074-0.4	1.6-5.8	55	13.8
Ф1500×3000	27	7.5	≤25	0.074-0.4	2-5	75	15.6
Ф1500×5700	28	12	≤25	0.074-0.4	3.5-6	130	24.7
Ф1830×3000	25	11	≤25	0.074-0.4	4-10	130	28
Ф1830×6400	24	21	≤25	0.074-0.4	7-16	210	34
Ф1830×7000	24	23	≤25	0.074-0.4	8-18	245	36
Ф2100×3600	23	19	≤25	0.074-0.4	10-36	210	46
Ф2200×4500	21	27	≤25	0.074-0.4	12-23	280	48.5
Ф2200×6500	21	35	≤25	0.074-0.4	14-26	380	52.8
Ф2200×7000	21	35	≤25	0.074-0.4	15-28	380	54
Ф2200×7500	21	35	≤25	0.074-0.4	15-30	380	56
Ф2400×4500	21	30	≤25	0.074-0.4	18-45	320	65
Ф2400×8000	20	36	≤25	0.074-0.4	20-48	410	81
Ф2700×3600	21	39	≤25	0.074-0.4	19-75	400	83
Ф2700×4000	20	40	≤25	0.074-0.4	20-78	400	85
Ф2700×4500	20	48	≤25	0.074-0.4	22-85	430	89
Ф3200×4500	18	65	≤25	0.074-0.4	29-140	800	137
Ф3200×5400	18	81.6	≤25	0.074-0.4	30-180	800-1000	146
Ф3600×4500	17	88	≤25	0.074-0.4	35-210	1000	190
Ф3600×6000	17	117	≤25	0.074-0.4	38-240	1250-1500	220
Ф3600×8500	17	144	≤25	0.074-0.4	45-260	1800	260

The wearing parts of the ball mill mainly refer to the lining plate. The wear and service life of the lining plate are related to the use cost and production effect of the ball mill. So how to distinguish the pros and cons of the liner?

Mainly from three aspects, first look at the casting and smelting process of the lining plate, secondly look at whether the quenching and tempering treatment of the lining plate is qualified, and finally look at the material of the lining plate.

At present, the common lining materials on the market include high-chromium cast iron, low-alloy wear-resistant cast steel, high-manganese steel, etc. The linings of the three materials have good wear resistance.
